IP68 STAINLESS ROD POSITION SENSOR

SGM-PR20 IP68 Stainless-Steel Magnetostrictive Position Sensor, 25–7500 mm

SGM-PR20 is a magnetostrictive position sensor with a 304 stainless-steel head and rod sealed to IP68. It measures 25–7500 mm, mounts with an M18×1.5 or M20×1.5 thread, and outputs 4–20 mA, 0–20 mA, 0–10 V, 0–5 V or RS485 Modbus RTU, with SSI on request.

25–7500 mmIP68Datasheet PDFOEM volume supply

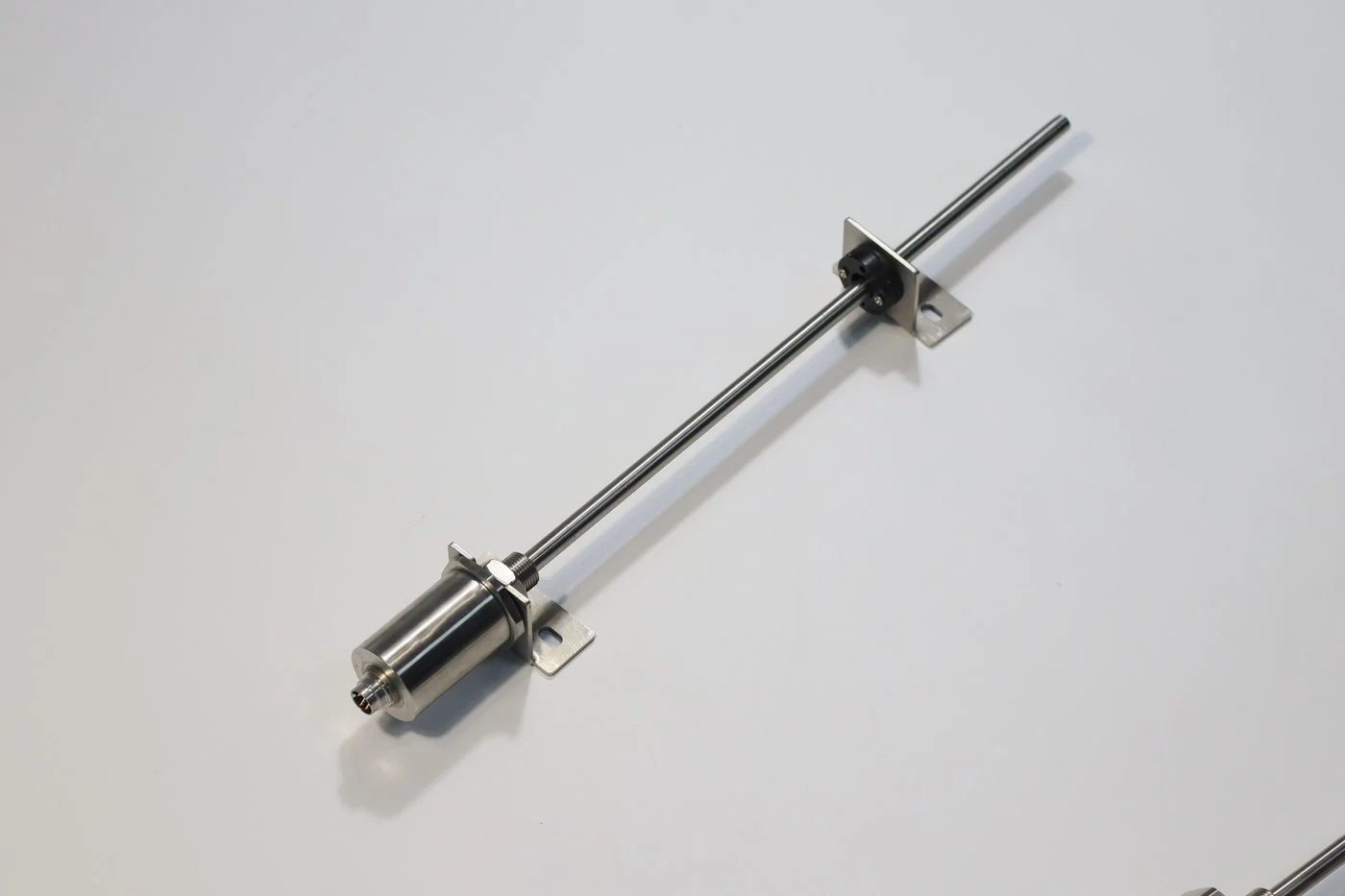

SGM-PR20 IP68 magnetostrictive position sensor — SEGMENsensor

Key facts

SEGMENsensor SGM-PR20 is a magnetostrictive position sensor with a 304 stainless-steel head and rod sealed to IP68 for wet, washdown and outdoor machines. It measures 25–7500 mm, mounts with an M18×1.5 or M20×1.5 thread and outputs 4–20 mA, 0–20 mA, 0–10 V, 0–5 V or RS485 Modbus RTU.

Last updated · SEGMENsensor Engineering Team

Watch: stainless steel housings, sealed and leak-tested

Stainless Steel Sensor Housings: Sealed and Leak-Tested
Stainless Steel Sensor Housings: Sealed and Leak-TestedProduction footage of stainless steel housings and rods for level and position sensors: machined housings, threaded process connections, pneumatic pressing and an air-pressure leak test under water for every sealed assembly.
Transcript

Stainless steel housings and rods for level and position sensors. On the production line, machined stainless steel housings are sorted and checked before assembly. Sensor rods are fitted with threaded process connections. Parts are joined on a pneumatic press. Every sealed assembly is then leak-tested: it is pressurised with air and held under water, where any leak would show as bubbles. Request a quote at segmensensor.com.

What is SGM-PR20?

Stainless steel housing with IP68 protection rating, convenient for installation on machine surfaces or in external spaces. Analog output 0-10VDC / 0-5VDC / 4-20mA / 0-20mA; digital output RS485 (modbus RTU) / SSI. Part number prefix SGM stands for the SEGMENsensor magnetostrictive range; the full ordering code is explained below and in the datasheet.

Updated 2026-10-01 · Values from the SGM-PR20 datasheet, Rev A.

Specifications

SGM-PR20 Specifications

All values from the SGM-PR20 datasheet. Orderable range as listed; longer ranges and special temperature or pressure versions on request.

ParameterValue
Output type
Analog output0-10VDC / 0-5VDC / 4-20mA / 0-20mA
Digital outputRS485 (modbus RTU) / SSI (on request)
Performance
Measuring range25–7500 mm
Output signal0-20mA (max/min load 0/500Ω), 4-20mA (max/min load 0/500Ω), 0-10V (min load >5KΩ), RS485 (MODBUS RTU)
Resolution16-bit DA
Non-linearity<±0.01%FS (min ±50um)
Repeatability<±0.001% (min ±5um)
Update time<10ms (depending on range); 1ms (1m<range<2m); 2ms (2m<range<3m); 5ms (3m<range<4m)
Operating conditions
Magnet speedany
Operating temperature-40~+85°C
Storage temperature-55~+85°C
Humidity90% humidity, no frost forming.
Temperature coefficient<30ppm/°C
Protection classIP68
Electrical
Electrical connectionM12*1 waterproof connector or direct cable exit
Supply voltage24VDC (±20%) (standard; 12 V and 5 V ranges depending on output and model)
Current consumption<60mA (varies with measurement range)
Reverse-polarity protectionMaximum -30VDC
Over-voltage protectionMaximum 36VDC
Insulation strength500VDC
Mounting
Mounting orientationany
MountingM18*1.5 or M20*1.5 customer-customized position
Position magnetVarious ring magnets
Materials
Sensor head304 stainless steel
Protective tube304 stainless steel
Mounting flange304 stainless steel

Download the SGM-PR20 datasheet (PDF)

Specifications, wiring, dimension drawings and the complete ordering code on two pages. No registration required.

Download datasheet (PDF) All magnetostrictive datasheets

Need a 3D model or help confirming the right model? Contact our engineers — reply within 24 hours on working days. 3D models (STEP) available on request.

Dimensions & Wiring

SGM-PR20 Dimensions and Electrical Connection

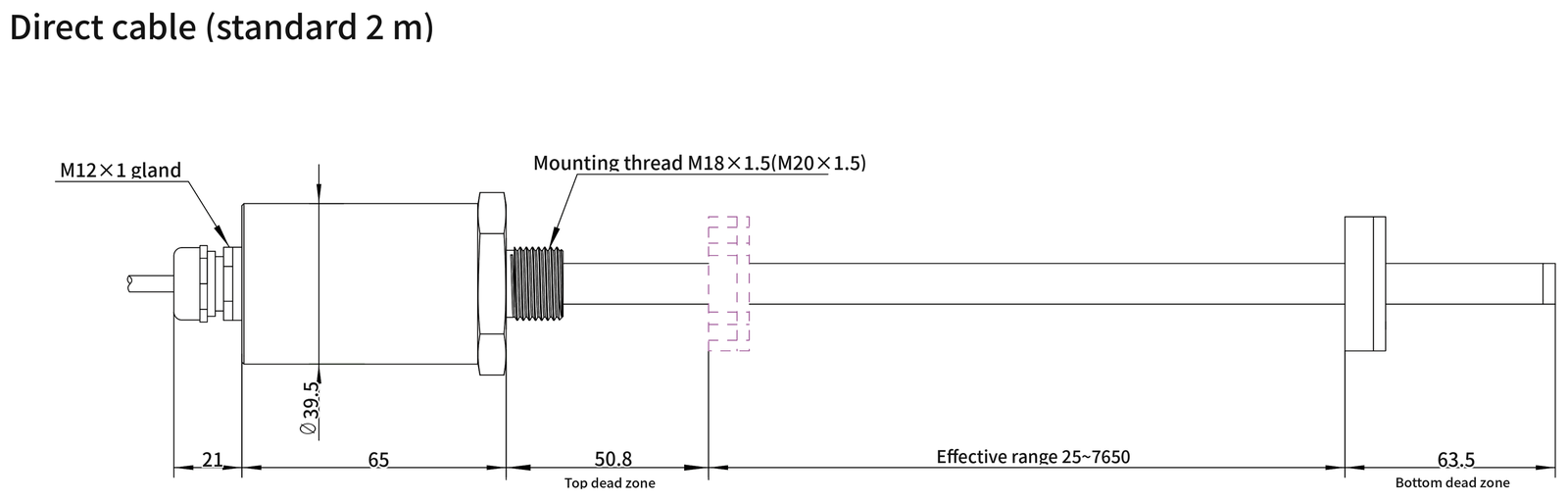

SGM-PR20 dimension drawing 1 (mm)
SGM-PR20 dimensions in mm. Range figures in drawings are illustrative; the orderable range is given in the specification table.
Main dimensions (mm), read from the drawing above
DimensionValue (mm)
Electronics housing diameterØ39.5
Head length to mounting face65
Cable gland length21
Cable glandM12×1
Mounting thread (alternative in brackets)M18×1.5(M20×1.5)
Top dead zone50.8
Bottom dead zone63.5

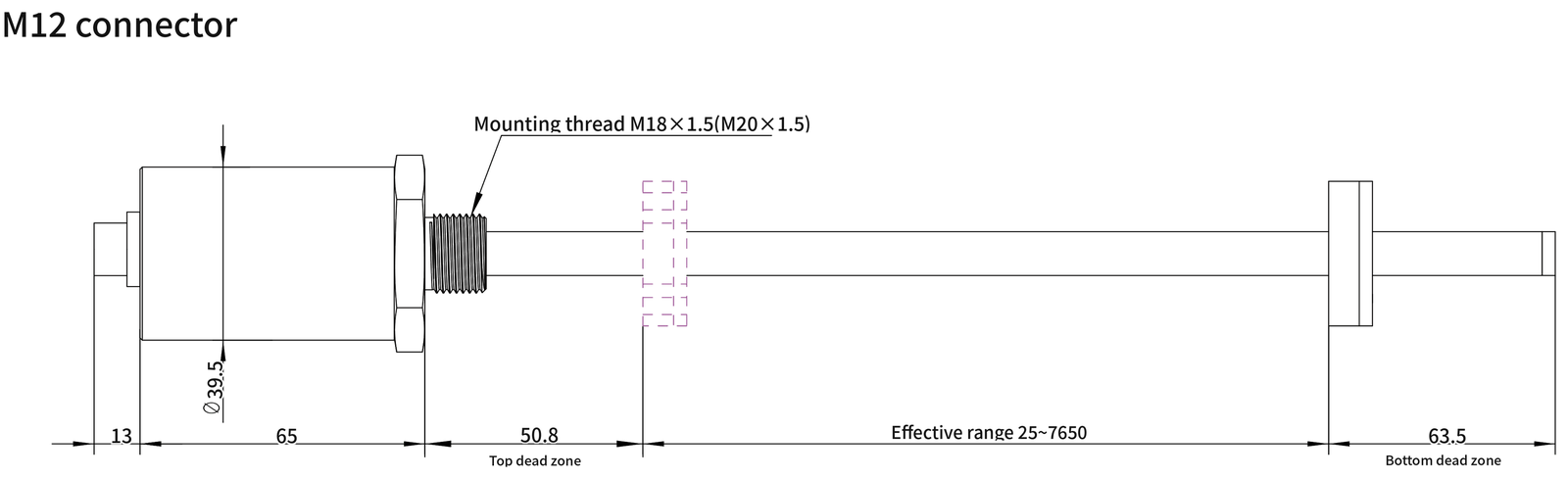

SGM-PR20 dimension drawing 2 (mm)
SGM-PR20 dimensions in mm. Range figures in drawings are illustrative; the orderable range is given in the specification table.
Main dimensions (mm), read from the drawing above
DimensionValue (mm)
Electronics housing diameterØ39.5
Head length to mounting face65
Connector length13
ConnectorM12
Mounting thread (alternative in brackets)M18×1.5(M20×1.5)
Top dead zone50.8
Bottom dead zone63.5

Analog connector pinout (4-pin)

1+12V power supply
2Power - (GND)
3Analog output +
4Analog output -

RS485 connector pinout (4-pin)

1+12V power supply
2Power - (GND)
3RS485-A
4RS485-B
Ordering Code

How to Order SGM-PR20

Build the part number field by field. Outputs or options listed in the specifications but not in the ordering code are available on request.

SGM-PR20-<mounting>-<range>-<output>-<connection>[-options]
CodeMeaning
Mounting
18M18×1.5
XXCustom thread
Range
00025–075005 digits in mm, 5 mm steps
Output
I1F4–20 mA, zero at rod end
I1R4–20 mA reversed (20–4 mA), zero at head
I2F0–20 mA, zero at rod end
I2R0–20 mA reversed (20–0 mA), zero at head
V1F0–10 V, zero at rod end
V1R0–10 V reversed (10–0 V), zero at head
V2F0–5 V, zero at rod end
V2R0–5 V reversed (5–0 V), zero at head
R4RS485 (Modbus RTU)
Connection
K12M12 connector
C02 … C99Direct cable, number = length in m (C02 = 2 m)
…XSuffix X: customer-specified cable
Options
(none)Series standard dead zones
Z1Short dead zones 30 + 60 mm
Z9Customer-specified dead zones
Selection

When to Choose SGM-PR20

Compare SEGMENsensor magnetostrictive position series

Part numberBest forRangeOutputProtection
SGM-PR10Hydraulic cylinder position sensor25–8000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485 / SSIIP67
SGM-PE10Magnetostrictive linear position sensor25–8000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485 / SSIIP67
SGM-PR20IP68 magnetostrictive position sensor25–7500 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SGM-PE20Slim linear position sensor25–4000 mm4–20 mA / 0–10 V / RS485IP67
SE-PR30Intrinsically safe linear position sensor25–4000 mm0.5–4.5 V / 0–5 V / 4–20 mA / RS485IP67 IP68
SGM-PF10Flat head magnetostrictive sensor25–8000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SGM-PF20Compact magnetostrictive sensor25–4000 mm4–20 mA / 0–10 V / 0.5–4.5 V / 0.25–4.75 VIP68
SGM-PR40Compact rod position sensor25–4000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SGM-PR50Miniature linear position sensor25–4000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68

New to the technology? Read How a magnetostrictive position sensor works.

Applications

Typical SGM-PR20 Applications

Wash-down and outdoor machines
Stainless head and IP68 sealing for water, spray and outdoor exposure.
Water-management gates and hydraulics
Gate and actuator position where the sensor head may be submerged or splashed.
Marine and offshore cylinders
Corrosion-resistant 304 stainless construction for salt-laden air.
Sourcing

Ordering SGM-PR20 from SEGMENsensor

1–5 pcsSamples; MOQ confirmed with the quotation
5–7 working daysSample lead time
Per quotationProduction lead time
24 h replyEvery RFQ answered by an engineer

Send the part number, or the stroke, output, mounting and connection you need. Custom ranges, dead zones, cables and magnets are quoted on request.

SEGMENsensor magnetostrictive sensor production testing
Magnetostrictive sensors under production testing at the SEGMENsensor factory.
FAQ

SGM-PR20 — Frequently Asked Questions

Is the whole SGM-PR20 sensor IP68 or only the rod?
The protection class in the SGM-PR20 datasheet is IP68 for the sensor, with a 304 stainless-steel sensor head, protective tube and flange. Use the M12 waterproof connector or a direct cable to keep the rating.
Can SGM-PR20 be used inside a hydraulic cylinder?
SGM-PR20 is designed for external or surface mounting where IP68 is needed. For in-cylinder use with a published pressure rating, choose SGM-PR10 (35 MPa continuous) or the compact SGM-PR40 / SGM-PR50.
What is the measuring range of SGM-PR20?
SGM-PR20 is orderable from 25 to 7500 mm in 5 mm steps. Longer ranges and special temperature or pressure versions are available on request.
How do I read the SGM-PR20 ordering code?
The code follows SGM-PR20-<mounting>-<range>-<output>-<connection>[-options]. The full option list is in the ordering-code table on this page and in the datasheet.
What is the MOQ and lead time for SGM-PR20?
Qualification samples of 1–5 pcs ship in 5–7 working days, production lead time and MOQ are confirmed with the quotation, and we reply to every RFQ within 24 hours.
Is a 12 V supply version available?
Yes. The standard supply is 24 V DC; 12 V and 5 V supply ranges are available depending on output and model, for example for 12 V vehicle or mobile-machine electrics. Please state the supply voltage and output signal in your inquiry.
