SGM-PE20 Slim Profile Magnetostrictive Linear Position Sensor, 25–4000 mm

SGM-PE20 is a slim aluminium-profile magnetostrictive linear position sensor for surface mounting. It covers 25–4000 mm with a guided, trapezoid or L-shaped floating magnet, and gives 4–20 mA, 0–10 V, dual-channel analog or RS485 output with non-linearity below ±0.01% FS.

25–4000 mmIP67Datasheet PDFOEM volume supply

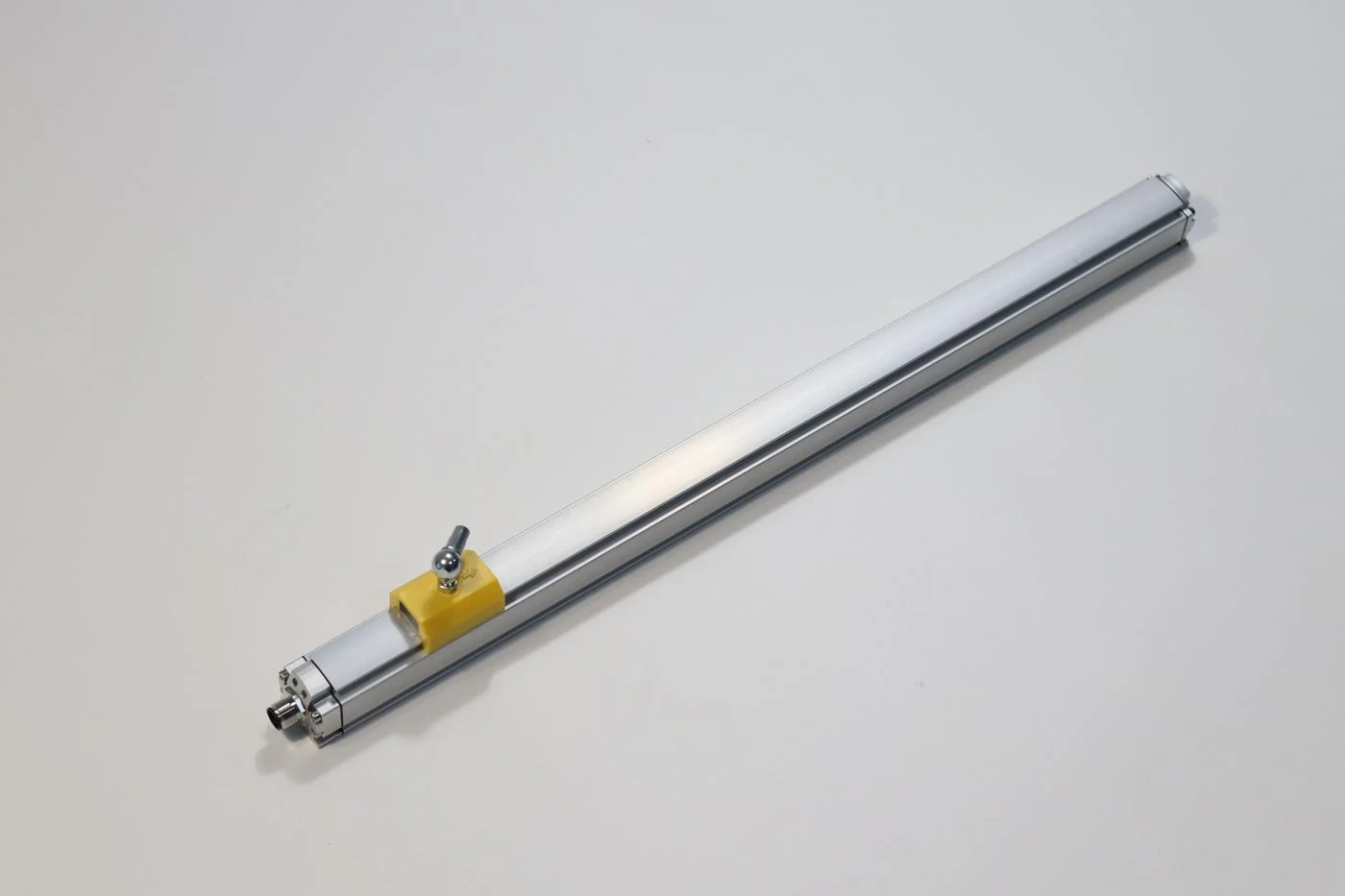

SGM-PE20 slim linear position sensor — SEGMENsensor

Key facts

SEGMENsensor SGM-PE20 is a slim aluminium-profile magnetostrictive linear position sensor for surface mounting on machines. It measures 25–4000 mm with a guided, trapezoid or L-shaped floating magnet and provides 4–20 mA, 0–10 V, dual-channel analog or RS485 Modbus RTU output, without mechanical wear.

Last updated · SEGMENsensor Engineering Team

Watch: how magnetostrictive position sensors work and how ours are tested

How a Magnetostrictive Position Sensor Works
How a Magnetostrictive Position Sensor WorksOne-minute animation of the magnetostrictive time-of-flight principle: current pulse, Wiedemann-effect twist at the position magnet, torsional wave back to the head, position = wave speed × time.
Transcript

How does a magnetostrictive sensor measure position without contact? Inside the stainless steel rod runs a thin waveguide wire. A ring magnet moves with the piston, the float, or the carriage. First, the electronics send a short current pulse along the wire. The pulse creates a circular magnetic field. Where that field meets the field of the magnet, the wire twists. This is the Wiedemann effect. The twist travels back to the head as a torsional wave, at about two thousand eight hundred metres per second, while a timer measures the travel time. Position equals wave speed times time. The result is absolute position, with no contact and no wear. SEGMENsensor magnetostrictive sensors cover strokes from twenty-five to eight thousand millimetres. Learn more at segmensensor.com.

Magnetostrictive Position Sensors: Production and Testing
Magnetostrictive Position Sensors: Production and TestingReal production footage of SEGMENsensor magnetostrictive position sensors: electronics assembly, laser welding of rods and flanges, burn-in, signal test on an oscilloscope, calibration on a linear test bench and laser-marked nameplates.
1:23 · YouTubeGet a quote →
Transcript

Magnetostrictive position sensors: how SEGMENsensor builds and tests them. It starts with the electronics. Each sensor board is soldered by hand and fitted into the sensor head. The head, cable and connector are assembled on the housing, and heat-shrink sleeves seal the wiring. Rods and flanges are joined by laser welding on a rotary fixture, with a camera to align each seam. The electronics then run on a burn-in rack. Every sensor is tested. The oscilloscope checks the return signal, and a meter checks the output. Each sensor is then calibrated on a linear test bench, where software checks its reading along the stroke. Finally, the nameplate is laser-marked with the model and the company name. Strokes 25–8000 mm · OEM volume supply · Request a quote at segmensensor.com

What is SGM-PE20?

The aluminum profile housing facilitates installation on machine surfaces or in external spaces. Analog output 0-10VDC / 4-20mA / 0-20mA; digital output RS485. Part number prefix SGM stands for the SEGMENsensor magnetostrictive range; the full ordering code is explained below and in the datasheet.

Updated 2026-10-01 · Values from the SGM-PE20 datasheet, Rev A.

Specifications

SGM-PE20 Specifications

All values from the SGM-PE20 datasheet. Orderable range as listed; longer ranges and special temperature or pressure versions on request.

ParameterValue
Output type
Analog output0-10VDC / 4-20mA / 0-20mA (dual-channel)
Digital outputRS485
Performance
Measuring range25–4000 mm
Output signal0-20mA (max/min load 0/500Ω), 4-20mA (max/min load 0/500Ω), 0-10V (min load >5KΩ), RS485 (MODBUS RTU)
Resolution16-bit DA
Non-linearity<±0.01%FS (min ±50um)
Repeatability<±0.001% (min ±5um)
Update time<10ms (depending on range); 1ms (1m<range<2m); 2ms (2m<range<3m); 5ms (3m<range<4m)
Operating conditions
Magnet speedany
Operating temperature-40~+85°C
Storage temperature-55~+85°C
Humidity90% humidity, no frost forming.
Temperature coefficient<30ppm/°C
Protection classIP67
Electrical
Electrical connectionDirect cable output or connector
Supply voltage24VDC (+20%) (standard; 12 V and 5 V ranges depending on output and model)
Current consumption<60mA (varies with measurement range)
Reverse-polarity protectionMaximum -30VDC
Over-voltage protectionMaximum 36VDC
Insulation strength500VDC
Mounting
Mounting orientationany
MountingClamp hole spacing 42.5 mm or 50 mm (select when ordering)
Position magnetRing magnet or float

Download the SGM-PE20 datasheet (PDF)

Specifications, wiring, dimension drawings and the complete ordering code on two pages. No registration required.

Download datasheet (PDF) All magnetostrictive datasheets

Need a 3D model or help confirming the right model? Contact our engineers — reply within 24 hours on working days. 3D models (STEP) available on request.

Dimensions & Wiring

SGM-PE20 Dimensions and Electrical Connection

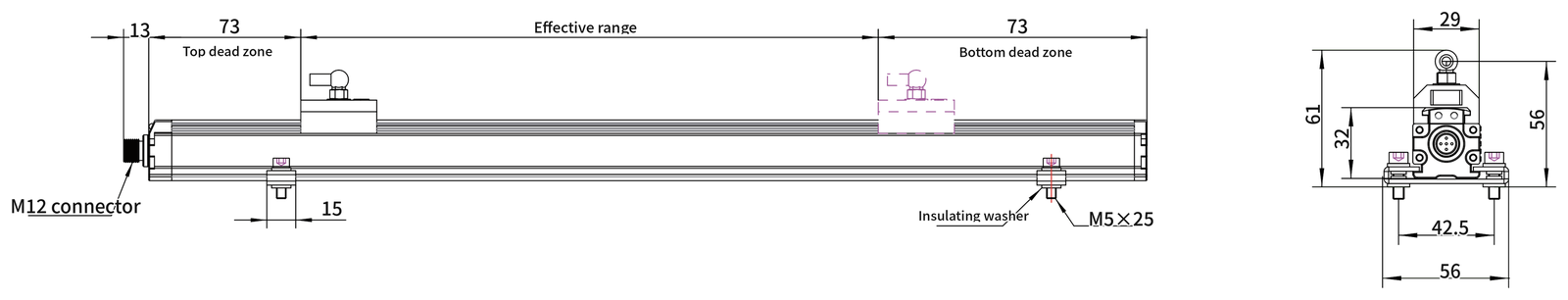

SGM-PE20 dimension drawing 1 (mm)
SGM-PE20 dimensions in mm. Range figures in drawings are illustrative; the orderable range is given in the specification table.
Main dimensions (mm), read from the drawing above
DimensionValue (mm)
ConnectorM12
Connector length13
Top dead zone73
Bottom dead zone73
Slider magnet width29
Mounting clamp width15
Mounting screwM5×25
Mounting hole spacing (clamps)42.5
Overall mounting width56

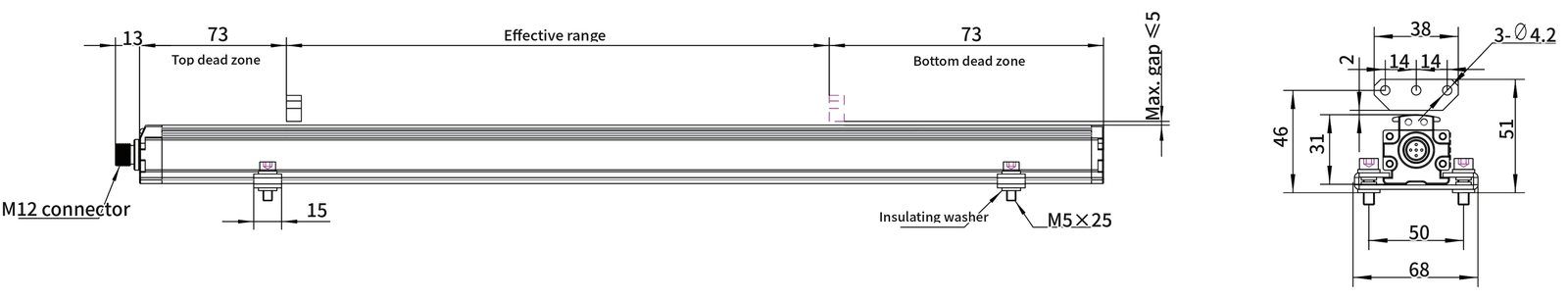

SGM-PE20 dimension drawing 2 (mm)
SGM-PE20 dimensions in mm. Range figures in drawings are illustrative; the orderable range is given in the specification table.
Main dimensions (mm), read from the drawing above
DimensionValue (mm)
ConnectorM12
Connector length13
Top dead zone73
Bottom dead zone73
Magnet-to-profile gap (max)≤5
Magnet mounting holes3-Ø4.2
Magnet width38
Magnet hole pitch14
Profile height46
Overall height incl. magnet51
Connector centre height31
Mounting clamp width15
Clamp screwM5×25
Clamp hole spacing50
Clamp overall width68

Analog connector pinout (5-pin)

1+24VDC(-15/+20%)
2Output 1
3DC ground (0V)
4Output 2
5DC ground

LED status indication

Green on / red offNormal operation within the effective range
Green off / red onThe magnet is out of the effective measurement range or the magnet cannot be detected.
Green off / red flashingEnter debugging
Ordering Code

How to Order SGM-PE20

Build the part number field by field. Outputs or options listed in the specifications but not in the ordering code are available on request.

SGM-PE20-<magnet>-<range>-<output>-<connection>[-options]
CodeMeaning
Magnet
MGGuided magnet
MTTrapezoid floating magnet
MLL-shaped floating magnet
Range
00025–040005 digits in mm, 5 mm steps
Output
I1F4–20 mA, zero at rod end
I1BDual output 4–20 mA + 20–4 mA
V1F0–10 V, zero at rod end
V1BDual output 0–10 V + 10–0 V
R4RS485 (Modbus RTU)
Connection
K12M12 connector
C02 … C99Direct cable, number = length in m (C02 = 2 m)
Options
(none)Series standard dead zones
Z9Customer-specified dead zones
B50Clamp hole spacing 50 mm (default 42.5 mm)

Ordering examples

SGM-PE20-MG-00500-I1F-K12-B50Guided magnet, 500 mm, 4–20 mA, M12 connector, 50 mm clamp hole spacing
Selection

When to Choose SGM-PE20

Compare SEGMENsensor magnetostrictive position series

Part numberBest forRangeOutputProtection
SGM-PR10Hydraulic cylinder position sensor25–8000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485 / SSIIP67
SGM-PE10Magnetostrictive linear position sensor25–8000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485 / SSIIP67
SGM-PR20IP68 magnetostrictive position sensor25–7500 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SGM-PE20Slim linear position sensor25–4000 mm4–20 mA / 0–10 V / RS485IP67
SE-PR30Intrinsically safe linear position sensor25–4000 mm0.5–4.5 V / 0–5 V / 4–20 mA / RS485IP67 IP68
SGM-PF10Flat head magnetostrictive sensor25–8000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SGM-PF20Compact magnetostrictive sensor25–4000 mm4–20 mA / 0–10 V / 0.5–4.5 V / 0.25–4.75 VIP68
SGM-PR40Compact rod position sensor25–4000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SGM-PR50Miniature linear position sensor25–4000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68

New to the technology? Read How a magnetostrictive position sensor works.

Applications

Typical SGM-PE20 Applications

Injection moulding machines
Compact profile for mould-opening and ejector axes where mounting space on the frame is tight.
Rubber and plastics machinery
Wear-free replacement for linear potentiometers on presses and extruders.
Automation axes
Two independent analog channels (4–20 mA + 20–4 mA or 0–10 V + 10–0 V) for redundant feedback.
Sourcing

Ordering SGM-PE20 from SEGMENsensor

1–5 pcsSamples; MOQ confirmed with the quotation
5–7 working daysSample lead time
Per quotationProduction lead time
24 h replyEvery RFQ answered by an engineer

Send the part number, or the stroke, output, mounting and connection you need. Custom ranges, dead zones, cables and magnets are quoted on request.

SEGMENsensor magnetostrictive sensor production testing
Magnetostrictive sensors under production testing at the SEGMENsensor factory.
FAQ

SGM-PE20 — Frequently Asked Questions

What does the dual-channel output of SGM-PE20 mean?
The sensor can deliver two analog signals at once — for example 4–20 mA plus 20–4 mA, or 0–10 V plus 10–0 V — so a controller and a separate monitor or safety channel can each read position.
Which clamp spacing does SGM-PE20 use?
Clamp hole spacing is 42.5 mm as standard; 50 mm is selected with the B50 option in the ordering code.
What is the measuring range of SGM-PE20?
SGM-PE20 is orderable from 25 to 4000 mm in 5 mm steps. Longer ranges and special temperature or pressure versions are available on request.
How do I read the SGM-PE20 ordering code?
The code follows SGM-PE20-<magnet>-<range>-<output>-<connection>[-options]. For example SGM-PE20-MG-00500-I1F-K12-B50 means: Guided magnet, 500 mm, 4–20 mA, M12 connector, 50 mm clamp hole spacing. The full option list is in the ordering-code table on this page and in the datasheet.
What is the MOQ and lead time for SGM-PE20?
Qualification samples of 1–5 pcs ship in 5–7 working days, production lead time and MOQ are confirmed with the quotation, and we reply to every RFQ within 24 hours.

Need SGM-PE20 for Your Project?

Send the part number or your application details — an engineer replies within 24 hours on working days with a quotation, lead time and the datasheet.

Request a Quote for SGM-PE20

Tell us your specification — our engineers reply within 24 hours.

OEM volume supply · samples in 5–7 days · info@segmensensor.com
