EMBEDDED COMPACT POSITION SENSOR

SGM-PF20 Compact Embedded Magnetostrictive Position Sensor, Φ48 Flange, 25–4000 mm

SGM-PF20 is an embedded magnetostrictive position sensor with a Φ48 mm flange that sits inside the cylinder end cap. Pressure tubes of Φ7, Φ10 or Φ14 mm are available (Φ14 up to 70 MPa), the range is 25–4000 mm, and outputs include 4–20 mA, 0–10 V, 0.5–4.5 V and 0.25–4.75 V.

25–4000 mmIP68Datasheet PDFOEM volume supply
SGM-PF20 compact magnetostrictive sensor dimension drawing — SEGMENsensor

Key facts

SEGMENsensor SGM-PF20 is an embedded magnetostrictive position sensor whose Φ48 mm flange sits inside the cylinder end cap, for compact hydraulic cylinders. It measures 25–4000 mm through a Φ7, Φ10 or Φ14 mm pressure tube and outputs 4–20 mA, 0–10 V, 0.5–4.5 V or 0.25–4.75 V.

Last updated · SEGMENsensor Engineering Team

Watch: how magnetostrictive position sensors work and how ours are tested

How a Magnetostrictive Position Sensor Works
How a Magnetostrictive Position Sensor WorksOne-minute animation of the magnetostrictive time-of-flight principle: current pulse, Wiedemann-effect twist at the position magnet, torsional wave back to the head, position = wave speed × time.
Transcript

How does a magnetostrictive sensor measure position without contact? Inside the stainless steel rod runs a thin waveguide wire. A ring magnet moves with the piston, the float, or the carriage. First, the electronics send a short current pulse along the wire. The pulse creates a circular magnetic field. Where that field meets the field of the magnet, the wire twists. This is the Wiedemann effect. The twist travels back to the head as a torsional wave, at about two thousand eight hundred metres per second, while a timer measures the travel time. Position equals wave speed times time. The result is absolute position, with no contact and no wear. SEGMENsensor magnetostrictive sensors cover strokes from twenty-five to eight thousand millimetres. Learn more at segmensensor.com.

Magnetostrictive Position Sensors: Production and Testing
Magnetostrictive Position Sensors: Production and TestingReal production footage of SEGMENsensor magnetostrictive position sensors: electronics assembly, laser welding of rods and flanges, burn-in, signal test on an oscilloscope, calibration on a linear test bench and laser-marked nameplates.
1:23 · YouTubeGet a quote →
Transcript

Magnetostrictive position sensors: how SEGMENsensor builds and tests them. It starts with the electronics. Each sensor board is soldered by hand and fitted into the sensor head. The head, cable and connector are assembled on the housing, and heat-shrink sleeves seal the wiring. Rods and flanges are joined by laser welding on a rotary fixture, with a camera to align each seam. The electronics then run on a burn-in rack. Every sensor is tested. The oscilloscope checks the return signal, and a meter checks the output. Each sensor is then calibrated on a linear test bench, where software checks its reading along the stroke. Finally, the nameplate is laser-marked with the model and the company name. Strokes 25–8000 mm · OEM volume supply · Request a quote at segmensensor.com

What is SGM-PF20?

The embedded type is suitable for use in hydraulic cylinders with limited space. Measuring range 25-4000mm, 35MPa(continuous) 70MPa(peak). Part number prefix SGM stands for the SEGMENsensor magnetostrictive range; the full ordering code is explained below and in the datasheet.

Updated 2026-10-01 · Values from the SGM-PF20 datasheet, Rev A.

Specifications

SGM-PF20 Specifications

All values from the SGM-PF20 datasheet. Orderable range as listed; longer ranges and special temperature or pressure versions on request.

ParameterValue
Performance
Measuring range25–4000 mm
Output signal0-20mA(max/min load 0/500Ω) / 4-20mA(max/min load 0/500Ω) / 0-10V(min. load >5KΩ) / RS485(MODBUS RTU)
Resolution16-bit D/A
Repeatability±0.005mm
Update time<5ms(depending on range) / 1ms(1m<range<2m) / 2ms(2m<range<3m) / 5ms(3m<range<4m)
Operating conditions
Magnet speedAny
Operating temperature-40~+85℃
Storage temperature-55~+85℃
Humidity90 %, non-condensing
Temperature coefficient<30ppm/℃
Protection classIP68
Mounting
Mounting orientationAny
MountingM18*1.5 or custom
Position magnetRing magnet or float
Electrical
Electrical connectionM12*1 waterproof connector or direct cable
Supply voltage24VDC (±20%) (standard; 12 V and 5 V ranges depending on output and model)
Current consumption<60mA(depends on range)
Reverse-polarity protectionMax. -30VDC
Over-voltage protectionMax. 36VDC
Insulation strength500VDC
Materials
Sensor head304 stainless steel
Protective tube304 stainless steel
Mounting flange304 stainless steel

Download the SGM-PF20 datasheet (PDF)

Specifications, wiring, dimension drawings and the complete ordering code on two pages. No registration required.

Download datasheet (PDF) All magnetostrictive datasheets

Need a 3D model or help confirming the right model? Contact our engineers — reply within 24 hours on working days. 3D models (STEP) available on request.

Dimensions & Wiring

SGM-PF20 Dimensions and Electrical Connection

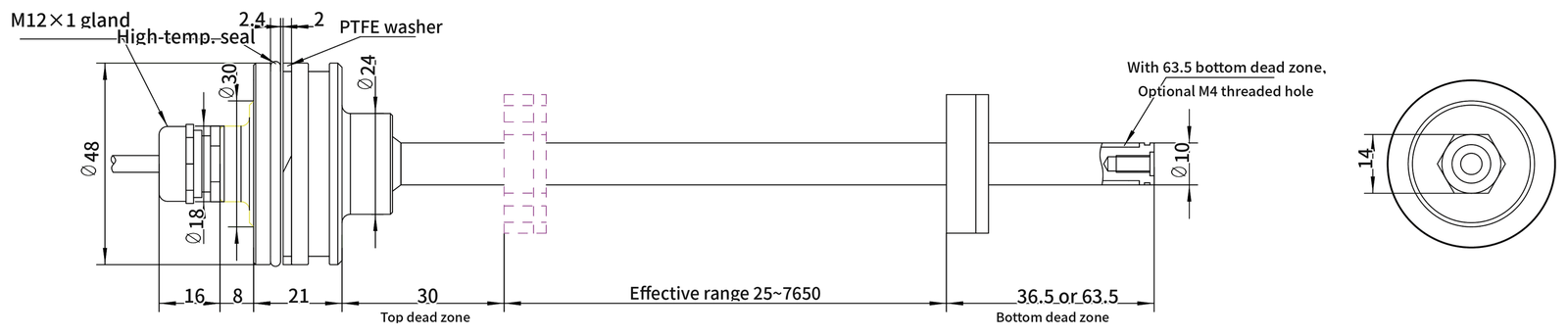

SGM-PF20 dimension drawing 1 (mm)
SGM-PF20 dimensions in mm. Range figures in drawings are illustrative; the orderable range is given in the specification table.

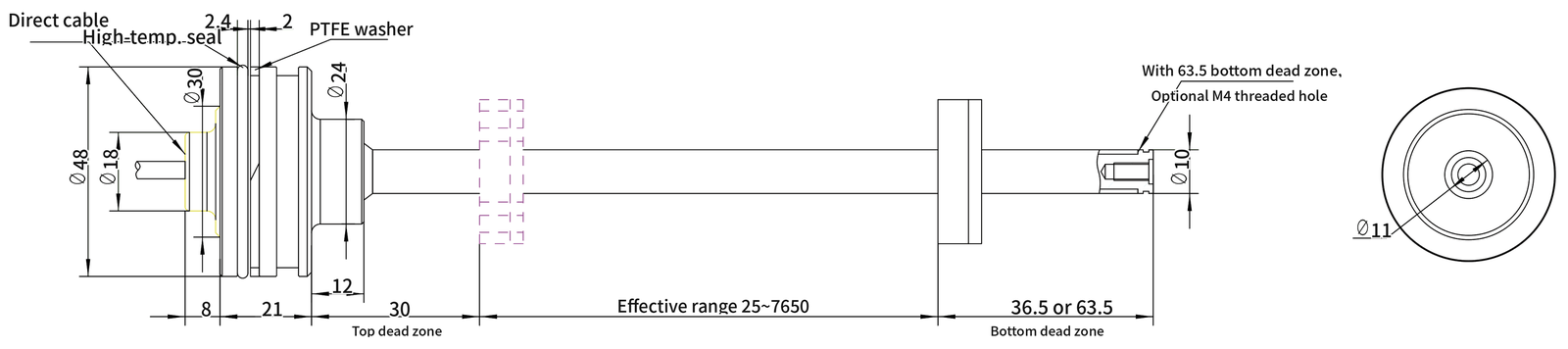

SGM-PF20 dimension drawing 2 (mm)
SGM-PF20 dimensions in mm. Range figures in drawings are illustrative; the orderable range is given in the specification table.
Main dimensions (mm), read from the drawing above
DimensionValue (mm)
Flange diameterØ48
Flange body length21
Spigot diameterØ24
High-temperature seal ring width2.4
PTFE washer thickness2
Rear boss diameterØ18
Rear boss length8
Rod diameterØ10
Optional rod-end tapped hole (with 63.5 bottom dead zone)M4
Top dead zone30
Bottom dead zone36.5 / 63.5

M12 4-pin harness H1 pinout

1Power
2Signal
3Ground
4Not connected

M12 4-pin harness H2 pinout

1Not connected
2Power
3Ground
4Signal

M12 4-pin harness H3 pinout

1Power
2Not connected
3Ground
4Signal

RS485 cable colours

redPower (red)
blackGround (black)
yellowSignal A (yellow)
greenSignal B (green)

Analog cable colours

redPower (red)
blackGround (black)
whiteSignal (white)
Ordering Code

How to Order SGM-PF20

Build the part number field by field. Outputs or options listed in the specifications but not in the ordering code are available on request.

SGM-PF20-<tube>-<range>-<output>-<connection>[-options]
CodeMeaning
Pressure tube
T07Pressure tube Φ7 mm
T10Pressure tube Φ10 mm
T10MPressure tube Φ10 mm with M4 end thread
T14Pressure tube Φ14 mm (max. 70 MPa)
Range
00025–040005 digits in mm, 5 mm steps
Output
I1F4–20 mA, zero at rod end
I1R4–20 mA reversed (20–4 mA), zero at head
V3F0.5–4.5 V, zero at rod end
V3R0.5–4.5 V reversed (4.5–0.5 V)
V4F0.25–4.75 V
V4R0.25–4.75 V reversed (4.75–0.25 V)
V1F0–10 V, zero at rod end
V1R0–10 V reversed (10–0 V), zero at head
Connection
H1nn / H2nn / H3nnM12 IP69K 4-pin harness, pins 1-3-2 / 2-3-4 / 1-3-4; nn = length in cm (06–25)
HTnn3 flying leads brown-white-green, nn = length in cm
Enn / ETnn3-core cable / cable with internal-thread gland, nn = length in dm (E10 = 1 m)
Options
(none)Dead zones 30 + 36.5 mm
Z1Dead zones 30 + 63.5 mm

Ordering examples

SGM-PF20-T10-00300-I1F-H106Φ10 tube, 300 mm, 4–20 mA, M12 harness 6 cm
Selection

When to Choose SGM-PF20

Compare SEGMENsensor magnetostrictive position series

Part numberBest forRangeOutputProtection
SGM-PR10Hydraulic cylinder position sensor25–8000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485 / SSIIP67
SGM-PE10Magnetostrictive linear position sensor25–8000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485 / SSIIP67
SGM-PR20IP68 magnetostrictive position sensor25–7500 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SGM-PE20Slim linear position sensor25–4000 mm4–20 mA / 0–10 V / RS485IP67
SE-PR30Intrinsically safe linear position sensor25–4000 mm0.5–4.5 V / 0–5 V / 4–20 mA / RS485IP67 IP68
SGM-PF10Flat head magnetostrictive sensor25–8000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SGM-PF20Compact magnetostrictive sensor25–4000 mm4–20 mA / 0–10 V / 0.5–4.5 V / 0.25–4.75 VIP68
SGM-PR40Compact rod position sensor25–4000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SGM-PR50Miniature linear position sensor25–4000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68

New to the technology? Read How a magnetostrictive position sensor works.

Applications

Typical SGM-PF20 Applications

Compact hydraulic cylinders
Fully embedded electronics for small cylinders where nothing may protrude from the cap.
Mobile machinery
M12 IP69K harness options for steering, boom and outrigger cylinders.
Smart actuators
Low-voltage 0.5–4.5 V output for vehicle controllers.
Sourcing

Ordering SGM-PF20 from SEGMENsensor

1–5 pcsSamples; MOQ confirmed with the quotation
5–7 working daysSample lead time
Per quotationProduction lead time
24 h replyEvery RFQ answered by an engineer

Send the part number, or the stroke, output, mounting and connection you need. Custom ranges, dead zones, cables and magnets are quoted on request.

SEGMENsensor magnetostrictive sensor production testing
Magnetostrictive sensors under production testing at the SEGMENsensor factory.
FAQ

SGM-PF20 — Frequently Asked Questions

Which pressure tube should I choose for SGM-PF20?
Φ7 and Φ10 mm tubes suit small bores; Φ10 mm is also available with an M4 end thread; the Φ14 mm tube is the heavy option with a maximum rating of 70 MPa. The tube is the first field of the ordering code.
Does SGM-PF20 support RS485?
The standard SGM-PF20 ordering code covers 4–20 mA, 0–10 V, 0.5–4.5 V and 0.25–4.75 V, each in normal or reversed direction. Other outputs can be discussed on request.
What is the measuring range of SGM-PF20?
SGM-PF20 is orderable from 25 to 4000 mm in 5 mm steps. Longer ranges and special temperature or pressure versions are available on request.
How do I read the SGM-PF20 ordering code?
The code follows SGM-PF20-<tube>-<range>-<output>-<connection>[-options]. For example SGM-PF20-T10-00300-I1F-H106 means: Φ10 tube, 300 mm, 4–20 mA, M12 harness 6 cm. The full option list is in the ordering-code table on this page and in the datasheet.
What is the MOQ and lead time for SGM-PF20?
Qualification samples of 1–5 pcs ship in 5–7 working days, production lead time and MOQ are confirmed with the quotation, and we reply to every RFQ within 24 hours.
Is a 12 V supply version available?
Yes. The standard supply is 24 V DC; 12 V and 5 V supply ranges are available depending on output and model, for example for 12 V vehicle or mobile-machine electrics. Please state the supply voltage and output signal in your inquiry.
