Quick Reference

Which SEGMENsensor Product Fits Your Industry?

Use this matrix to identify the right sensor family for your application. Click any checkmark to go directly to the product page.

Industry	Liquid Level	Proximity	LVDT / Displacement	Magnetostrictive	Pressure	Ultrasonic Flow
Oil & Gas	✓ View	✓ View	—	✓ View	✓ View	✓ View
Energy Storage / BESS	✓ View	–	–	✓ View	✓ View	✓ View
Water Treatment	✓ View	—	—	✓ View	✓ View	✓ View
Food & Beverage	✓ View	✓ View	—	—	✓ View	✓ View
Chemical & Petrochemical	✓ View	✓ View	—	✓ View	✓ View	✓ View
HVAC & Building	✓ View	✓ View	✓ View	—	✓ View	✓ View
Marine & Offshore	✓ View	✓ View	✓ View	✓ View	✓ View	✓ View
Semiconductor / CDU	✓ View	✓ View	—	✓ View	✓ View	—
Power Generation	✓ View	✓ View	✓ View	✓ View	✓ View	✓ View

Industry 01

Oil & Gas Sensor Applications — Level, Pressure & Flow Solutions

Sensor Challenges in Oil & Gas Operations

Oil and gas facilities demand sensors that perform reliably in explosive atmospheres, extreme temperatures, and highly corrosive media. Tank farms, separator vessels, pipelines, and wellheads all require continuous, certified measurement — where sensor failure directly affects safety and production.

SEGMENsensor ATEX & IECEx Solutions

SEGMENsensor supplies ATEX/IECEx-certified sensors for Zone 1 and Zone 2 hazardous area classifications. Our float-type and magnetostrictive level sensors withstand pressures up to 400 bar and temperatures up to 150°C. Clamp-on ultrasonic flow meters enable non-invasive flow measurement on existing pipelines without process shutdown.

Required Certifications

ATEX Zone 1/2 IECEx IP67 / IP68 CE ISO 9001

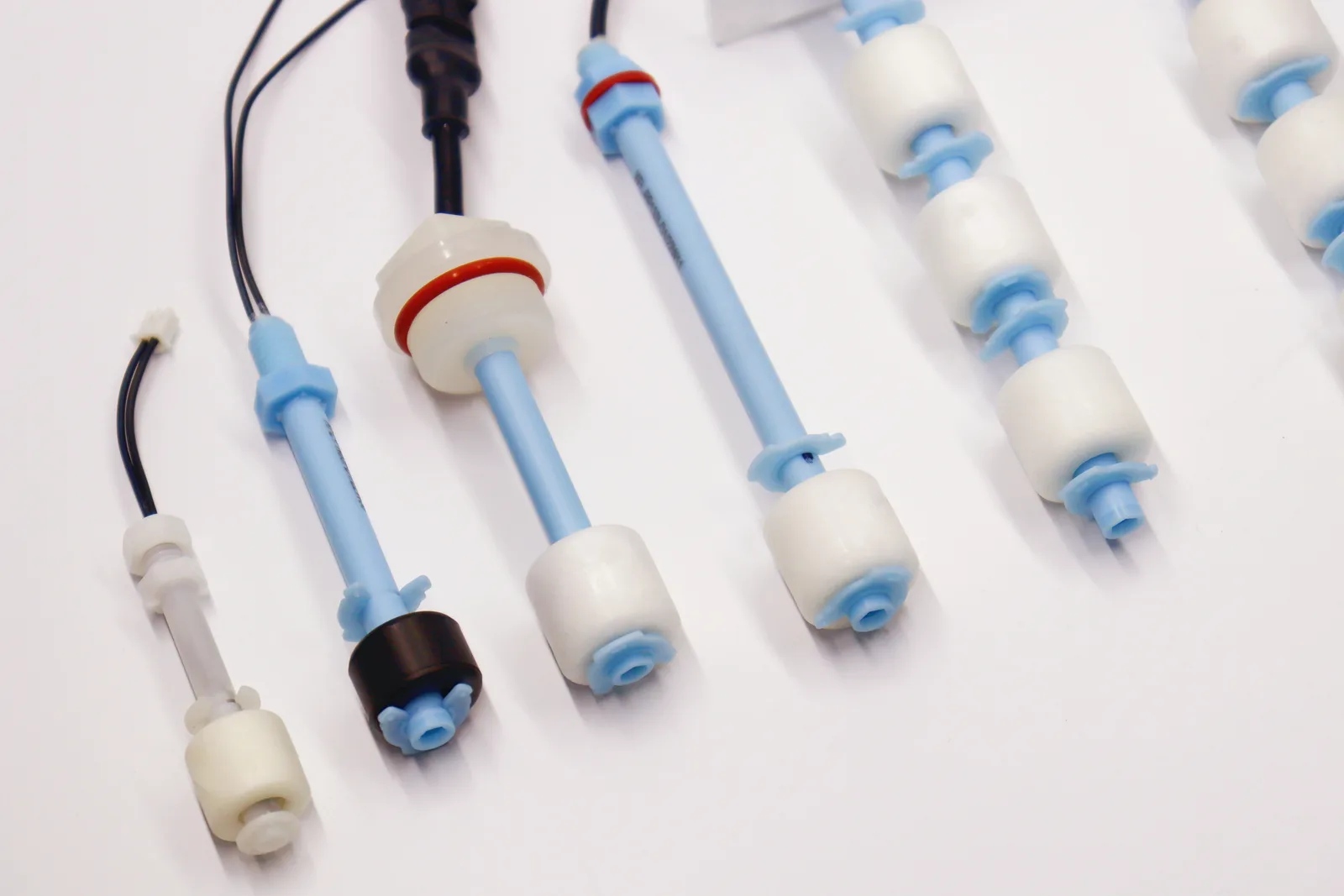

Liquid Level Sensors

Float type, magnetostrictive, submersible — ATEX rated

Pressure Transmitters

0–400 bar, 4–20 mA, ATEX models available

Ultrasonic Flow Meters

Clamp-on, no pipe cutting, DN15–DN6000

Get ATEX Sensor Quote

ATEX Certified

Industry 02

Water & Wastewater Treatment Sensor Applications

Measurement Requirements for Water Treatment Facilities

Water treatment plants require continuous level monitoring in storage tanks and clarifiers, precise flow measurement for chemical dosing and effluent discharge compliance, and pressure monitoring across filtration membranes and pump systems. Sensors must tolerate aggressive cleaning chemicals and high-humidity environments.

Non-Invasive Flow & Submersible Level Solutions

SEGMENsensor clamp-on ultrasonic flow meters are widely used in municipal water treatment for non-invasive installation on existing concrete-lined or steel pipes — without draining or process interruption. Submersible level sensors with IP68 protection (per IEC 60529) measure water depth in open channels, sumps, and reservoirs.

Required Certifications

IP68 CE RoHS ISO 9001

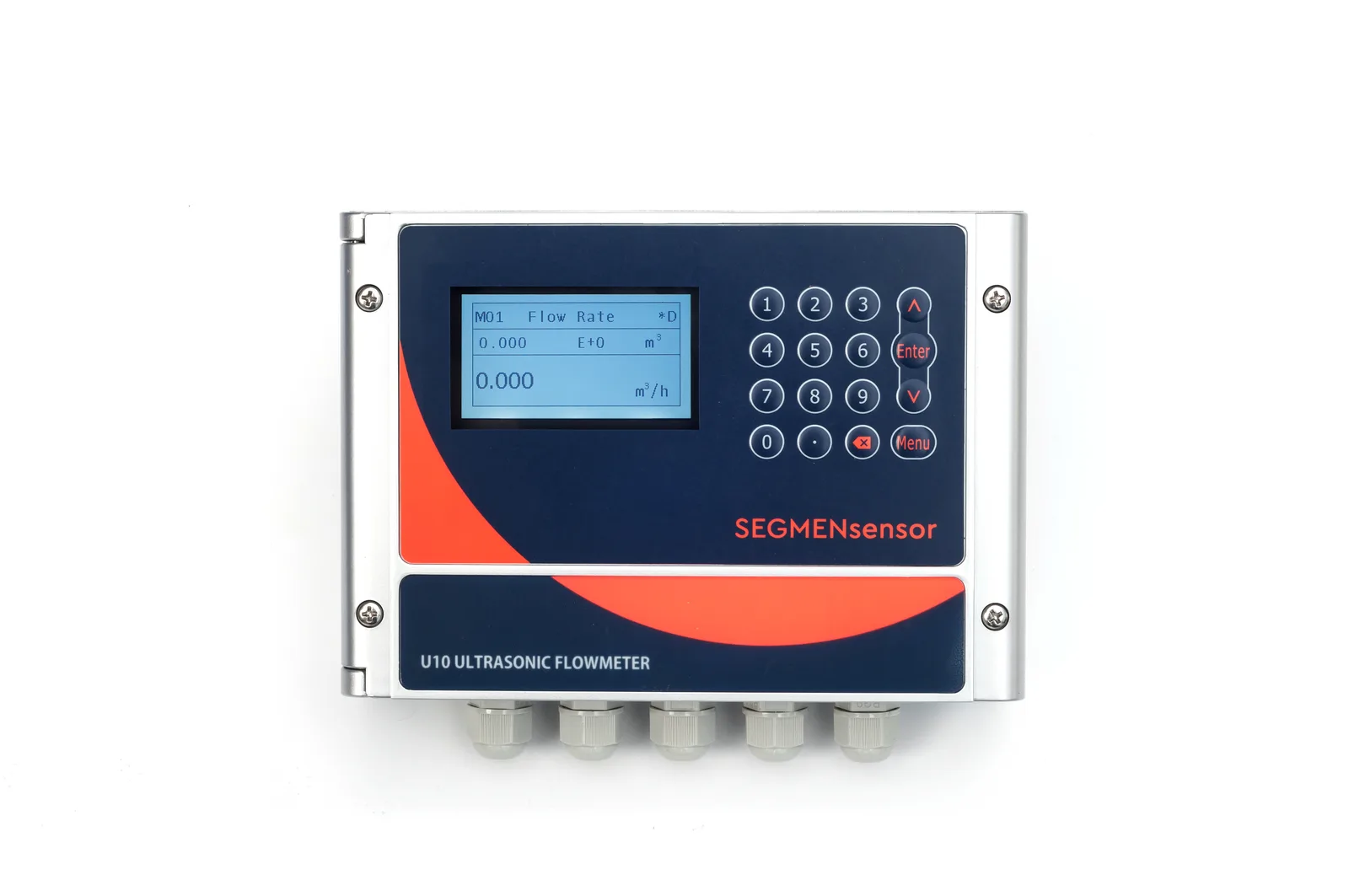

Ultrasonic Flow Meters

Non-invasive, clamp-on, suitable for large-diameter mains

Submersible Level Sensors

IP68, 0–10 m water depth, 4–20 mA output

Pressure Transmitters

Membrane pressure monitoring, filter differential pressure

Get Water Sensor Quote

IP68 Rated

Industry 03

Food & Beverage Sensor Applications — Hygienic, FDA-Ready Options

Hygienic Sensor Requirements for Food Production

Food and beverage production demands sensors that withstand CIP (clean-in-place) and SIP (sterilize-in-place) cycles, resist aggressive cleaning agents, and use only food-grade wetted materials. Level measurement in ingredient tanks, flow monitoring for filling lines, and proximity detection for conveyor control are the three highest-volume applications.

CIP-Compatible Sensors from SEGMENsensor

SEGMENsensor float-type level sensors are available with 316L stainless steel and PVDF-coated components for food-compatible media. Clamp-on ultrasonic flow meters are ideal for juice, dairy, and beverage applications because they mount externally — eliminating any sensor-to-product contact and surviving washdown cleaning without sealing concerns.

Required Certifications

316L Stainless IP67 CE RoHS

Liquid Level Sensors

316L SS wetted parts, PVDF option, CIP compatible

Clamp-On Flow Meters

Zero product contact, no bore contamination

Inductive Proximity Sensors

Conveyor, bottle detection, IP67, washdown rated

Get F&B Sensor Quote

Sanitary Grade

Industry 04

Chemical & Petrochemical Sensor Applications — Corrosion-Resistant Sensors

Corrosive Media & Hazardous Area Requirements

Chemical plants present some of the most demanding sensor environments: highly corrosive acids and alkalis, elevated operating temperatures, pressurized vessels, and in many cases hazardous area classifications. Sensors must survive continuous exposure to aggressive media without material degradation or signal drift.

PVDF, Hastelloy & ATEX-Rated Sensor Options

SEGMENsensor magnetostrictive level sensors with PVDF or Hastelloy wetted components are the preferred solution for chemical tanks — delivering ±0.05 mm accuracy with no moving parts exposed to the medium. Pressure transmitters with ceramic or PTFE diaphragms handle aggressive process media at up to 400 bar. ATEX-rated models available for Zone 1 and Zone 2 areas.

Required Certifications

ATEX Zone 1/2 PVDF / Hastelloy IP67 CE

Magnetostrictive Level Sensors

±0.05 mm accuracy, PVDF wetted parts, no moving parts

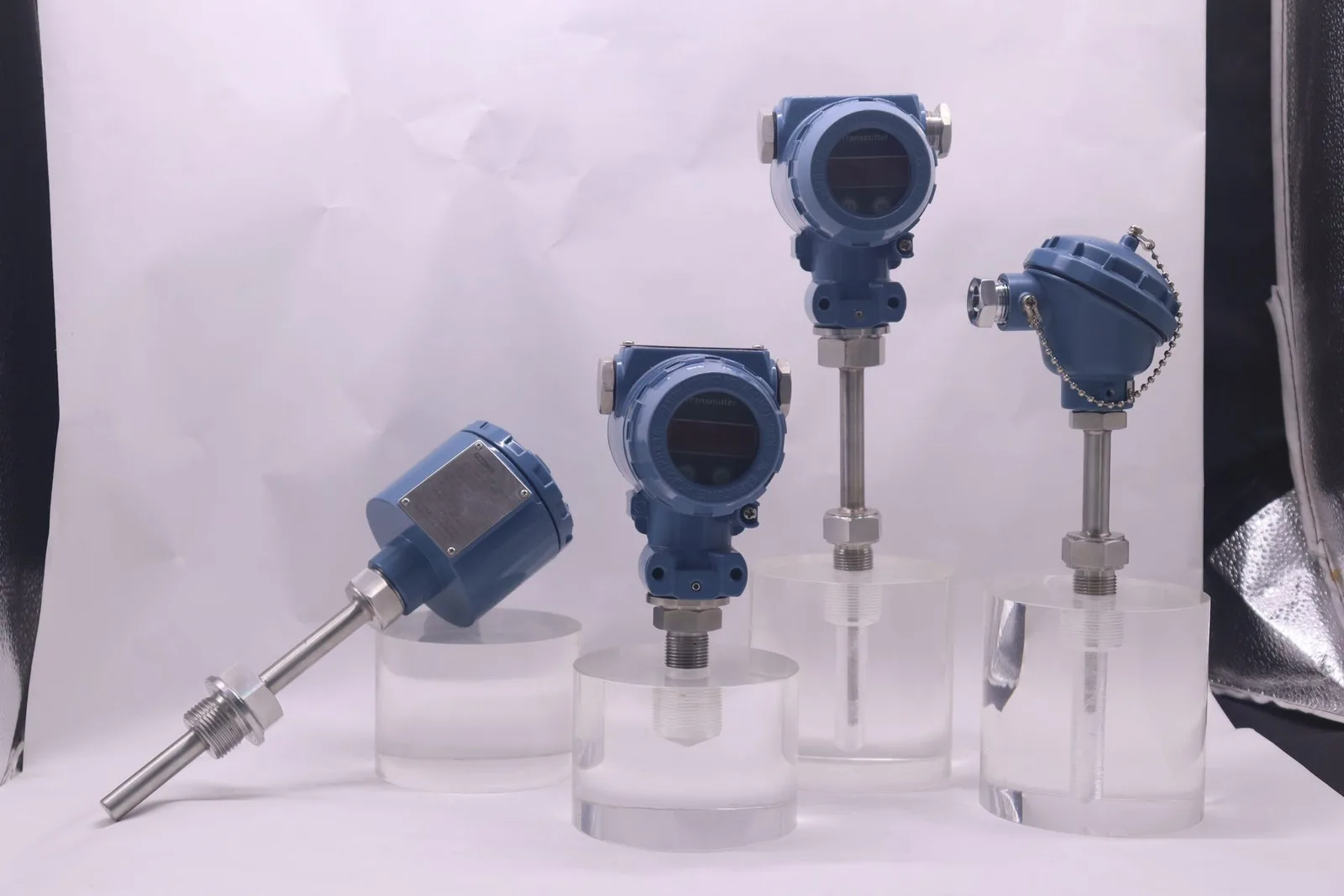

Pressure Transmitters

Ceramic / PTFE diaphragm, aggressive media, 0–400 bar

Clamp-On Flow Meters

External mount, zero wetted parts, corrosive pipe compatible

Get Chemical Sensor Quote

Corrosion Resistant

Industry 05

HVAC & Building Automation Sensor Applications

Sensor Needs in HVAC & BMS Systems

Modern HVAC and building management systems rely on a dense network of sensors for energy efficiency, comfort control, and equipment protection. Chiller water level monitoring, cooling tower flow measurement, AHU damper position feedback, and condenser pressure monitoring are among the highest-volume sensor applications in commercial building systems.

Proximity, LVDT & Pressure Sensors for Building Automation

SEGMENsensor inductive proximity sensors are widely used in HVAC OEM equipment for valve position detection, filter indicator feedback, and fan blade detection. Our LVDT displacement sensors provide precise linear position feedback for modulating dampers and actuators, with RS485 and 0–10 V outputs compatible with major BMS platforms.

Compatible Outputs

0–10 V 4–20 mA RS485 / Modbus NPN / PNP

Proximity Sensors

M8–M30, NPN/PNP, valve & damper position detection

LVDT Displacement Sensors

Linear position, damper actuator feedback, 0–10 V

Pressure Transmitters

Duct pressure, chilled water differential pressure

Get HVAC Sensor Quote

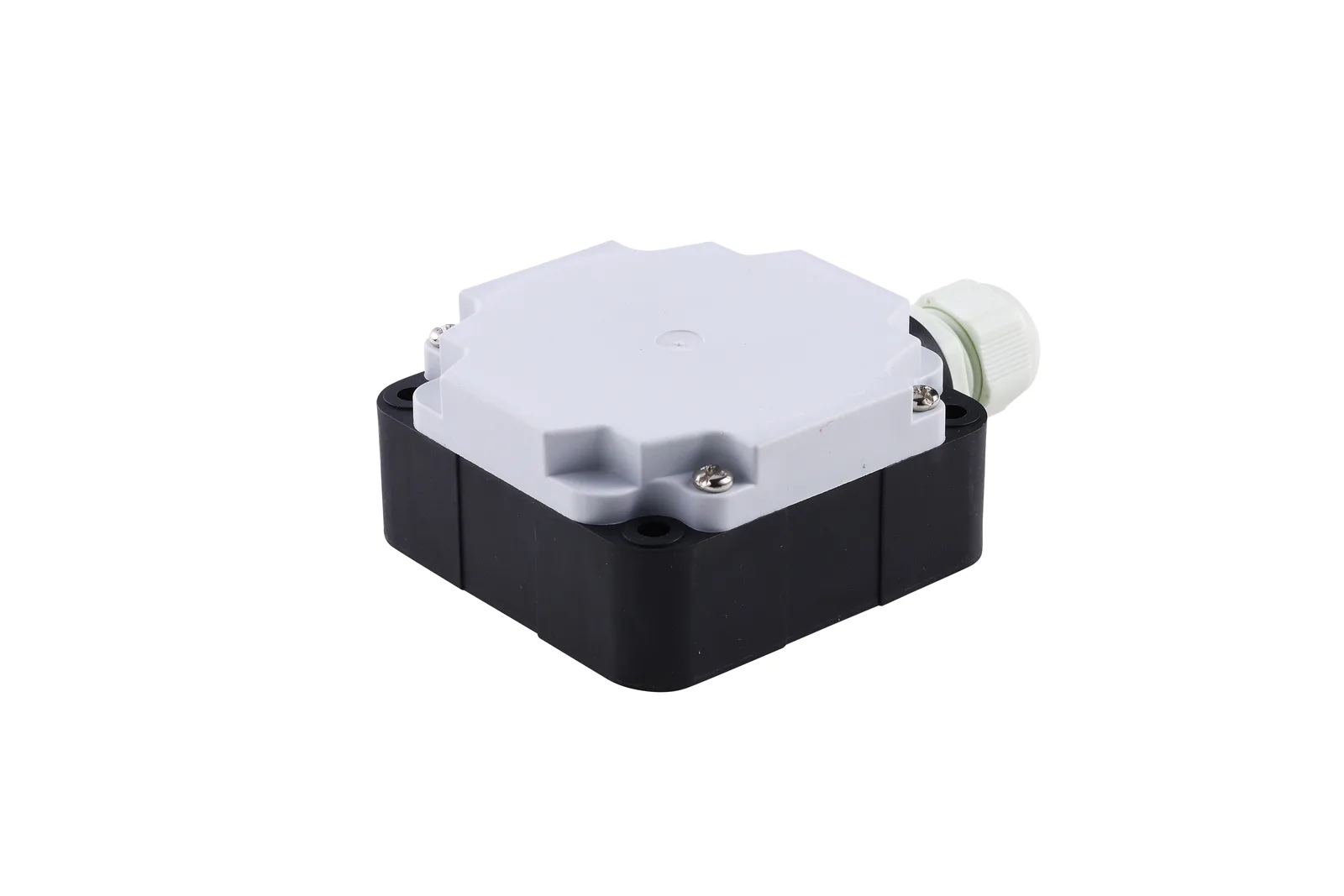

HVAC building automation proximity sensors

BMS Compatible

Industry 06

Marine & Offshore Sensor Applications — DNV-Ready, IP68 Rated

Harsh Marine Environment Requirements

Marine and offshore environments impose some of the harshest conditions any sensor must endure: constant salt-spray exposure, mechanical vibration, wide temperature swings, and the demand for intrinsically safe operation in fuel storage areas. Ship bilge level monitoring, ballast tank measurement, hydraulic cylinder position feedback, and fuel flow metering are the core sensor applications.

IP68-Rated LVDT & Level Sensors for Marine Use

SEGMENsensor LVDT displacement sensors with IP68 rating and full stainless steel housings are used for hydraulic cylinder feedback, rudder position monitoring, and hatch actuator control on commercial vessels. Our float-type level sensors are used for bilge and ballast tank monitoring with 316L stainless or GRP float construction.

Required Certifications

IP68 316L SS Salt Spray Rated CE

LVDT Displacement Sensors

IP68, SS housing, hydraulic cylinder & rudder feedback

Level Sensors

Bilge & ballast tank level, 316L SS or GRP construction

Magnetostrictive Sensors

Fuel tank level, high-accuracy, non-contact

Get Marine Sensor Quote

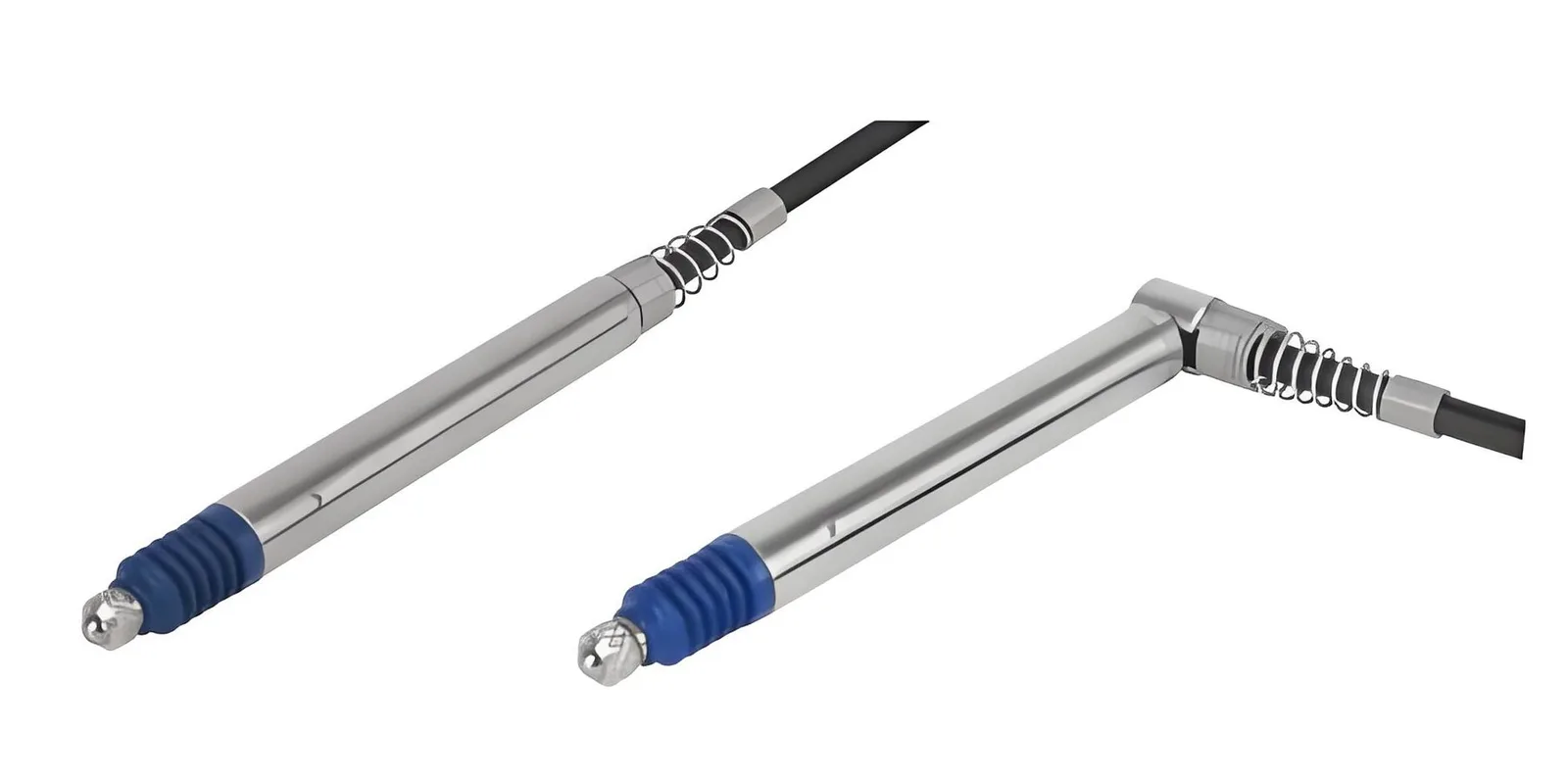

Marine offshore LVDT displacement sensors IP68

IP68 · Salt Spray

Industry 07

Semiconductor & Electronics Sensor Applications — Cleanroom & CDU Cooling

Cleanroom & CDU Cooling Sensor Requirements

Semiconductor fabs and electronics manufacturing facilities demand extreme precision and cleanliness from every process component. Coolant Distribution Units (CDUs) in AI server and high-performance compute racks require continuous liquid level monitoring, coolant flow measurement, and leak detection. Cleanroom HVAC systems require particle-free sensors with no outgassing.

Ultra-Precise, Outgassing-Free Solutions

SEGMENsensor magnetostrictive level sensors with polished 316L stainless steel construction are used in CDU coolant reservoirs, chemical supply systems, and deionized water tanks throughout semiconductor fabs. Our sensors provide ±0.05 mm resolution with no wetted electronics — essential for maintaining ISO 5 cleanroom classification (ISO 14644-1).

Key Requirements

ISO 5 Cleanroom 316L Polished No Outgassing ±0.05 mm

Magnetostrictive Level Sensors

CDU coolant tank, ±0.05 mm, no wetted electronics

Level Switches

High/low level alarm, DI water tanks, leak detection

Pressure Transmitters

Coolant loop pressure monitoring, miniature OEM models

Get CDU Sensor Quote

Semiconductor CDU coolant level sensors cleanroom

Cleanroom Rated

Industry 08

Power Generation Sensor Applications — Fuel, Turbine & Cooling Systems

Turbine, Fuel & Cooling Sensor Requirements

Power generation facilities — from gas turbine plants to renewable energy installations — require robust, long-life sensors for fuel storage monitoring, turbine bearing position feedback, cooling water flow measurement, and boiler pressure control. Sensors must operate reliably for years in high-vibration, high-temperature environments with minimal maintenance.

High-Temp LVDT, Magnetostrictive & Flow Solutions

SEGMENsensor supplies LVDT linear position sensors for turbine valve actuator feedback and generator brush gear position monitoring. Magnetostrictive sensors monitor fuel oil levels in generator day-tanks with high accuracy across wide temperature ranges. Clamp-on ultrasonic flow meters enable non-invasive cooling water flow measurement without plant shutdown.

Key Requirements

High Temp Rated Vibration Proof ATEX Option CE

LVDT Displacement Sensors

Turbine valve & actuator position, high-temp models

Magnetostrictive Sensors

Fuel oil day-tank level, generator cooling monitoring

Clamp-On Flow Meters

Cooling water flow, non-invasive, no plant shutdown

Get Power Sensor Quote

Power generation turbine pressure sensors

High Temp Rated

Industry 09

Energy Storage & Battery (BESS) Sensor Applications — Coolant Level, Leak & Temperature

Liquid-Cooled Battery & Thermal Management Sensing

Battery energy storage systems (BESS) and grid-scale storage increasingly use liquid cooling — cold plates, coolant distribution units (CDUs), and immersion tanks — to keep cells within a safe temperature window. These loops need accurate coolant level, coolant temperature, leak detection, and pump-loop pressure monitoring to protect high-value battery racks and satisfy fire-safety requirements.

Level, Temperature & Pressure for Storage Systems

SEGMENsensor supplies magnetostrictive level transmitters with combined multi-point temperature for coolant reservoirs and immersion tanks, liquid level sensors for expansion tanks and leak trays, and pressure transmitters for cooling-loop and fire-suppression circuits. RS485/Modbus output consolidates level, interface, and temperature onto a single link to the battery management or EMS controller. Suitable for glycol/water coolants and dielectric immersion fluids.

Key Requirements

IP67 / IP68 Level + Temp RS485 / Modbus CE

Magnetostrictive Level Transmitters

Coolant reservoir level + multi-point temperature, one link

Liquid Level Sensors

Expansion-tank level & leak-tray detection for battery racks

Pressure Transmitters

Cooling-loop & fire-suppression circuit pressure monitoring

Get Energy Storage Sensor Quote

BESS battery energy storage coolant level and temperature sensors

Level + Temp

Customer Outcomes

Trusted by OEM Engineers Worldwide

Over 200 OEM equipment builders in 30+ countries rely on SEGMENsensor for critical industrial measurement.

"We switched our CDU cooling systems to SEGMENsensor magnetostrictive sensors after validating accuracy at ±0.1 mm over 6 months of continuous operation. Lead time was 3 weeks versus 12 weeks from our previous supplier."

— OEM Equipment Manufacturer · Semiconductor / CDU · Germany

"The clamp-on ultrasonic flow meters installed on our water treatment mains have been running for 18 months with zero maintenance. Installation was done without shutting down the plant — exactly what we needed."

— Process Engineer · Municipal Water Treatment · Southeast Asia

"SEGMENsensor supplied ATEX-rated float switches for 40 chemical storage tanks across our facility. CE documentation and ATEX certificates arrived with the shipment. No issues passing our local safety audit."

— Procurement Manager · Chemical Plant · Netherlands

Bundle Solutions

Need More Than One Sensor Type?

Most industrial systems require multiple sensor types. Our engineers can specify a complete measurement package for your application — single source, single shipment, single compliance documentation set.

Level + Flow Package

Continuous tank level monitoring combined with clamp-on flow measurement for dosing and transfer lines. Common in water treatment, chemical, and food processing systems.

Liquid LevelUltrasonic Flow

Request Bundle Quote

Level + Pressure Package

Tank level with pressure monitoring for pressurized vessels, boiler systems, and hydraulic circuits. Suitable for oil & gas, power generation, and industrial process applications.

MagnetostrictivePressure

Request Bundle Quote

Full Instrumentation Package

Complete sensor set for a new facility or system upgrade: level, flow, pressure, proximity, and position sensors — all from one CE-certified manufacturer with unified documentation.

All 6 Product LinesSingle Source

Talk to an Engineer

Common Questions

Frequently Asked Questions About Industrial Sensor Applications

What sensors are used in oil and gas pipelines?

Oil and gas pipelines typically require ATEX-rated level sensors for storage tanks, pressure transmitters for line pressure monitoring, ultrasonic flow meters for non-invasive flow measurement, and magnetostrictive position sensors for valve and actuator feedback. SEGMENsensor supplies all four types with ATEX/IECEx certification for Zone 1 and Zone 2 hazardous areas.

Which level sensor works best for corrosive chemical tanks?

For corrosive chemical tanks, magnetostrictive level sensors with PVDF or Hastelloy wetted parts are the most reliable choice — providing continuous level measurement with no moving parts. Float-type sensors with PTFE-coated floats are a cost-effective alternative for less aggressive media. SEGMENsensor offers both types with PP, PVDF, and 316L stainless steel wetted materials.

Do you offer ATEX-certified sensors for hazardous areas?

Yes. SEGMENsensor supplies ATEX/IECEx-certified sensors for Zone 1 and Zone 2 hazardous area classifications. Certified products include float level switches, magnetostrictive level sensors, inductive proximity sensors, and pressure transmitters. Full ATEX documentation — certificate, EC declaration, and technical file — is provided with every order.

What is the lead time for OEM sensor orders?

Standard catalog samples ship in 5–7 business days from our Shenzhen factory. Production orders typically require 3–5 weeks. Custom OEM designs with new housing tooling require 4–6 weeks for the first sample batch. We maintain buffer stock of core components to minimize supply chain delays.

Can I get custom cable lengths or process connections?

Yes — all SEGMENsensor sensors are configurable for OEM projects. Cable length, jacket material (PVC, PUR, FEP), connector type (M12, M8, DIN, flying lead), and process connection thread (G, NPT, BSP, flange) are all available as custom options. MOQ for custom configurations starts at 10 pieces.

What is the difference between a magnetostrictive and ultrasonic level sensor?

Magnetostrictive level sensors measure the position of a float magnet on a stainless steel stem using a torsional wave — highly accurate (±0.05 mm), suitable for pressurized vessels. Ultrasonic level sensors emit sound waves from above the tank — non-contact, suitable for open tanks and aggressive media, but less accurate (±0.1–0.5%) and affected by foam or vapor. SEGMENsensor supplies both types.

Which flow meter works for high-viscosity food liquids?

Clamp-on ultrasonic flow meters are the preferred solution for high-viscosity food and beverage liquids such as juices, syrups, and dairy. They attach externally to sanitary piping with no contact with the product, require no process shutdown for installation, and are compatible with CIP cleaning cycles. Our U series covers pipe sizes from DN15 to DN6000.

Are your sensors compatible with 4-20mA, HART, or Modbus output?

Yes. SEGMENsensor sensors are available with 4–20 mA (2-wire and 3-wire), 0–5 V, 0–10 V, NPN/PNP switching, RS485, Modbus RTU, SSI, CANopen, and IO-Link outputs. HART protocol is available on selected pressure transmitter models. Custom signal conditioning is available for OEM projects from 10 pieces minimum.
