SGM-PF10 Flat Disc-Head Magnetostrictive Position Sensor for Hydraulic Cylinders, 25–8000 mm

SGM-PF10 is a magnetostrictive position sensor with a flat disc head for hydraulic cylinders where there is little room behind the end cap. It is rated 35 MPa continuous (70 MPa peak), measures 25–8000 mm, is sealed to IP68 and outputs analog, SSI or RS485.

25–8000 mmIP68Datasheet PDFOEM volume supply

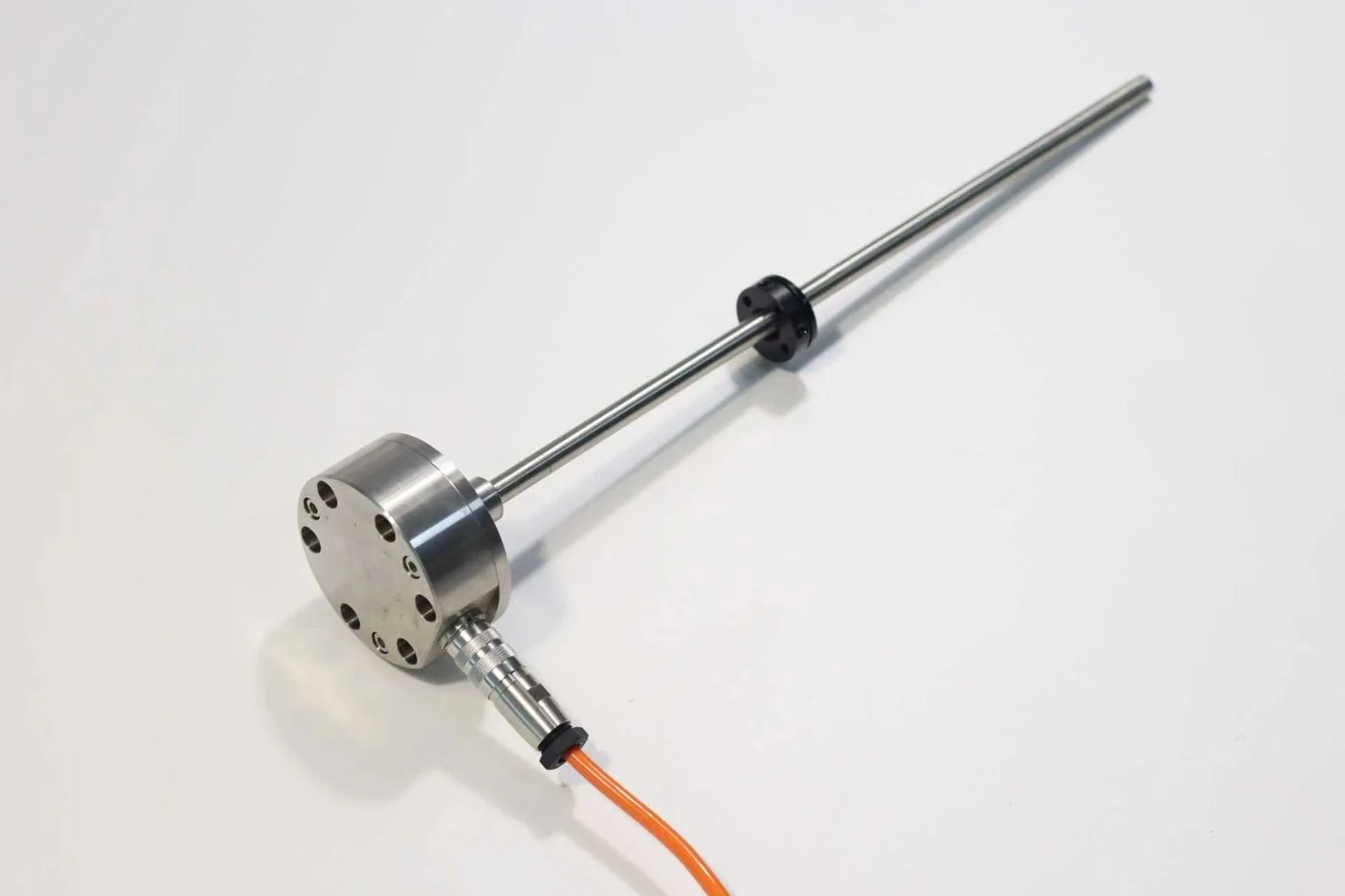

SGM-PF10 flat head magnetostrictive sensor — SEGMENsensor

Key facts

SEGMENsensor SGM-PF10 is a magnetostrictive position sensor with a flat disc head for hydraulic cylinders that leave little room behind the end cap, such as U-shaped layouts. It is rated 35 MPa continuous, measures 25–8000 mm, is sealed to IP68 and outputs analog, RS485 or, on request, SSI.

Last updated · SEGMENsensor Engineering Team

Watch: how magnetostrictive position sensors work and how ours are tested

How a Magnetostrictive Position Sensor Works
How a Magnetostrictive Position Sensor WorksOne-minute animation of the magnetostrictive time-of-flight principle: current pulse, Wiedemann-effect twist at the position magnet, torsional wave back to the head, position = wave speed × time.
Transcript

How does a magnetostrictive sensor measure position without contact? Inside the stainless steel rod runs a thin waveguide wire. A ring magnet moves with the piston, the float, or the carriage. First, the electronics send a short current pulse along the wire. The pulse creates a circular magnetic field. Where that field meets the field of the magnet, the wire twists. This is the Wiedemann effect. The twist travels back to the head as a torsional wave, at about two thousand eight hundred metres per second, while a timer measures the travel time. Position equals wave speed times time. The result is absolute position, with no contact and no wear. SEGMENsensor magnetostrictive sensors cover strokes from twenty-five to eight thousand millimetres. Learn more at segmensensor.com.

Magnetostrictive Position Sensors: Production and Testing
Magnetostrictive Position Sensors: Production and TestingReal production footage of SEGMENsensor magnetostrictive position sensors: electronics assembly, laser welding of rods and flanges, burn-in, signal test on an oscilloscope, calibration on a linear test bench and laser-marked nameplates.
1:23 · YouTubeGet a quote →
Transcript

Magnetostrictive position sensors: how SEGMENsensor builds and tests them. It starts with the electronics. Each sensor board is soldered by hand and fitted into the sensor head. The head, cable and connector are assembled on the housing, and heat-shrink sleeves seal the wiring. Rods and flanges are joined by laser welding on a rotary fixture, with a camera to align each seam. The electronics then run on a burn-in rack. Every sensor is tested. The oscilloscope checks the return signal, and a meter checks the output. Each sensor is then calibrated on a linear test bench, where software checks its reading along the stroke. Finally, the nameplate is laser-marked with the model and the company name. Strokes 25–8000 mm · OEM volume supply · Request a quote at segmensensor.com

What is SGM-PF10?

The flat structure design is suitable for U-shaped and other limited-space hydraulic cylinders. Measuring range 25-8000mm, Analog/SSI/RS485 output, 35MPa(continuous) 70MPa(peak). Part number prefix SGM stands for the SEGMENsensor magnetostrictive range; the full ordering code is explained below and in the datasheet.

Updated 2026-10-01 · Values from the SGM-PF10 datasheet, Rev A.

Specifications

SGM-PF10 Specifications

All values from the SGM-PF10 datasheet. Orderable range as listed; longer ranges and special temperature or pressure versions on request.

ParameterValue
Performance
Measuring range25–8000 mm
Output signal0-20mA(max/min load 0/500Ω) / 4-20mA(max/min load 0/500Ω) / 0-10V(min. load >5KΩ) / RS485(MODBUS RTU) / SSI (on request)
Resolution16-bit D/A
Non-linearity<±0.01% (min. ±50um)
Repeatability<±0.001% (min. ±5um)
Update time<5ms(depending on range) / 1ms(1m<range<2m) / 2ms(2m<range<3m) / 5ms(3m<range<4m)
Operating conditions
Magnet speedAny
Operating temperature-40~+85℃
Storage temperature-55~+85℃
Humidity90 %, non-condensing
Temperature coefficient<30ppm/℃
Protection classIP68
Pressure rating35Mpa(continuous) 70Mpa(peak)
Mounting
Mounting orientationAny
MountingM18*1.5 or custom
Position magnetRing magnet or float
Electrical
Electrical connectionDirect cable or connector
Supply voltage24VDC (±20%) (standard; 12 V and 5 V ranges depending on output and model)
Current consumption<60mA(depends on range)
Reverse-polarity protectionMax. -30VDC
Over-voltage protectionMax. 36VDC
Insulation strength500VDC
Materials
Sensor head304 stainless steel
Protective tube304 stainless steel
Mounting flange304 stainless steel

Download the SGM-PF10 datasheet (PDF)

Specifications, wiring, dimension drawings and the complete ordering code on two pages. No registration required.

Download datasheet (PDF) All magnetostrictive datasheets

Need a 3D model or help confirming the right model? Contact our engineers — reply within 24 hours on working days. 3D models (STEP) available on request.

Dimensions & Wiring

SGM-PF10 Dimensions and Electrical Connection

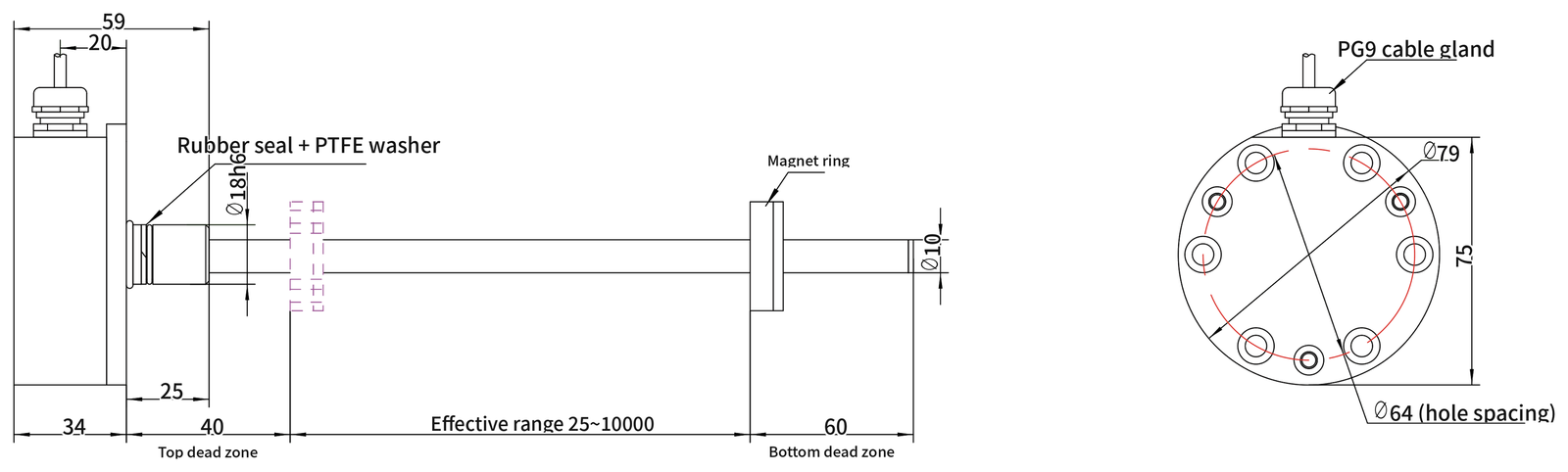

SGM-PF10 dimension drawing 1 (mm)
SGM-PF10 dimensions in mm. Range figures in drawings are illustrative; the orderable range is given in the specification table.
Main dimensions (mm), read from the drawing above
DimensionValue (mm)
Housing diameterØ79
Housing height across flat75
Mounting hole pitch circle diameterØ64
Housing length34
Overall head length59
Spigot diameterØ18h6
Spigot length25
Cable glandPG9
Rod diameterØ10
Top dead zone40
Bottom dead zone60

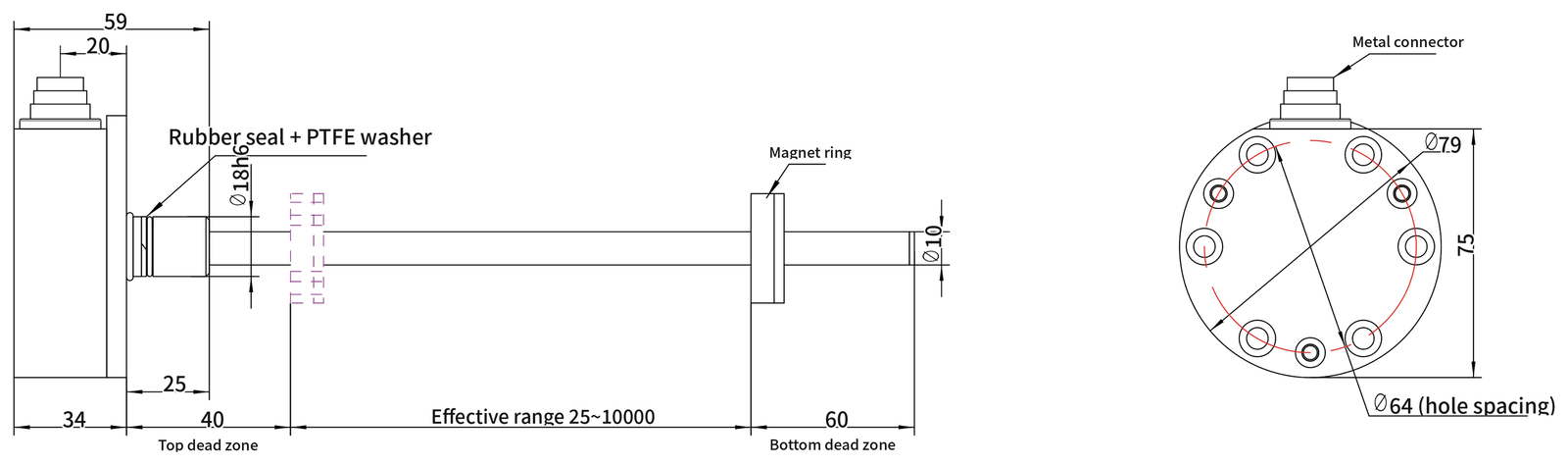

SGM-PF10 dimension drawing 2 (mm)
SGM-PF10 dimensions in mm. Range figures in drawings are illustrative; the orderable range is given in the specification table.
Main dimensions (mm), read from the drawing above
DimensionValue (mm)
Housing diameterØ79
Housing height across flat75
Mounting hole pitch circle diameterØ64
Housing length34
Overall head length59
Spigot diameterØ18h6
Spigot length25
Rod diameterØ10
Top dead zone40
Bottom dead zone60

Analog connector pinout (6-pin)

1Analog output +
2Analog output -
3Reserved for debugging
4Reserved for debugging
5Supply +
6Supply - (GND)

SSI connector pinout (7-pin)

1Data (-)
2Data (+)
3(+) Clock
4(-) Clock
5Supply +
6Supply - (GND)
7NC, not connected
Ordering Code

How to Order SGM-PF10

Build the part number field by field. Outputs or options listed in the specifications but not in the ordering code are available on request.

SGM-PF10-<mounting>-<range>-<output>-<connection>[-options]
CodeMeaning
Mounting
18M18×1.5
XXCustom thread
Range
00025–080005 digits in mm, 5 mm steps
Output
I1F4–20 mA, zero at rod end
I1R4–20 mA reversed (20–4 mA), zero at head
I2F0–20 mA, zero at rod end
I2R0–20 mA reversed (20–0 mA), zero at head
V1F0–10 V, zero at rod end
V1R0–10 V reversed (10–0 V), zero at head
V2F0–5 V, zero at rod end
V2R0–5 V reversed (5–0 V), zero at head
R4RS485 (Modbus RTU)
XXCustomer-specified output
Connection
K16M16 connector, 6-pin
C02 … C99Direct cable, number = length in m (C02 = 2 m)
…XSuffix X: customer-specified cable
Options
(none)Series standard dead zones
Z9Customer-specified dead zones

Ordering examples

SGM-PF10-18-00800-I1F-C05800 mm, 4–20 mA, 5 m cable
