SE-PR30 Intrinsically Safe Magnetostrictive Position Sensor, Slim Ø17 mm, 25–4000 mm

SE-PR30 is a slim, integrated magnetostrictive position sensor for hazardous areas. The Ø17 mm stainless head and pressure-resistant tube carry intrinsic-safety parameters Ui 12.5 V, Ii 15 mA, Ci 0 µF, Li 0 mH. Stroke is 25–4000 mm with 0.5–4.5 V, 0–5 V, 4–20 mA or RS485 output; other outputs (e.g. 0–10 V) are customized on request.

25–4000 mmIP67 IP68Datasheet PDFOEM volume supply
SE-PR30 intrinsically safe linear position sensor dimension drawing — SEGMENsensor

Key facts

SEGMENsensor SE-PR30 is a slim intrinsically safe magnetostrictive position sensor for hazardous areas. Its Ø17 mm stainless head and pressure-resistant tube carry the entity parameters Ui 12.5 V, Ii 15 mA, Ci 0 µF and Li 0 mH, and it measures 25–4000 mm with 0.5–4.5 V, 0–5 V, 4–20 mA or RS485 output (other outputs such as 0–10 V on request).

Last updated · SEGMENsensor Engineering Team

Watch: how magnetostrictive position sensors work and how ours are tested

How a Magnetostrictive Position Sensor Works
How a Magnetostrictive Position Sensor WorksOne-minute animation of the magnetostrictive time-of-flight principle: current pulse, Wiedemann-effect twist at the position magnet, torsional wave back to the head, position = wave speed × time.
Transcript

How does a magnetostrictive sensor measure position without contact? Inside the stainless steel rod runs a thin waveguide wire. A ring magnet moves with the piston, the float, or the carriage. First, the electronics send a short current pulse along the wire. The pulse creates a circular magnetic field. Where that field meets the field of the magnet, the wire twists. This is the Wiedemann effect. The twist travels back to the head as a torsional wave, at about two thousand eight hundred metres per second, while a timer measures the travel time. Position equals wave speed times time. The result is absolute position, with no contact and no wear. SEGMENsensor magnetostrictive sensors cover strokes from twenty-five to eight thousand millimetres. Learn more at segmensensor.com.

Magnetostrictive Position Sensors: Production and Testing
Magnetostrictive Position Sensors: Production and TestingReal production footage of SEGMENsensor magnetostrictive position sensors: electronics assembly, laser welding of rods and flanges, burn-in, signal test on an oscilloscope, calibration on a linear test bench and laser-marked nameplates.
1:23 · YouTubeGet a quote →
Transcript

Magnetostrictive position sensors: how SEGMENsensor builds and tests them. It starts with the electronics. Each sensor board is soldered by hand and fitted into the sensor head. The head, cable and connector are assembled on the housing, and heat-shrink sleeves seal the wiring. Rods and flanges are joined by laser welding on a rotary fixture, with a camera to align each seam. The electronics then run on a burn-in rack. Every sensor is tested. The oscilloscope checks the return signal, and a meter checks the output. Each sensor is then calibrated on a linear test bench, where software checks its reading along the stroke. Finally, the nameplate is laser-marked with the model and the company name. Strokes 25–8000 mm · OEM volume supply · Request a quote at segmensensor.com

What is SE-PR30?

Pressure-resistant outer tube: high protection rating, flameproof and intrinsically safe, suitable for explosion-proof occasions. Intrinsic safety parameters ui: 12.5V, ii: 15mA, ci: 0uF, li: 0mH; standard outputs 0.5–4.5 V / 0–5 V / 4–20 mA and RS485; other outputs (e.g. 0–10 V) customized on request. Part number prefix SE marks the explosion-proof version; the full ordering code is explained below and in the datasheet.

Updated 2026-10-01 · Values from the SE-PR30 datasheet, Rev A.

Specifications

SE-PR30 Specifications

All values from the SE-PR30 datasheet. Orderable range as listed; longer ranges and special temperature or pressure versions on request.

ParameterValue
Output type
Analog output0.5–4.5 V / 0–5 V / 4–20 mA (standard); other outputs (e.g. 0–10 V) customized on request
Digital outputRS485
Performance
Intrinsic safety parametersUi:12.5V Ii:15mA Ci:0uF Li:0mH
Measuring range25–4000 mm
Output signal4-20mA (max load 0~500Ω), 0.5-4.5V (min load >5KΩ)
Resolution16-bit DA
Non-linearity<±0.01%FS
Repeatability<±0.01mm
Update time<5ms (depending on range)
Operating conditions
Magnet speedany
Operating temperature-40~+85°C
Storage temperature-55~+85°C
Humidity90% humidity, no frost forming.
Temperature coefficient<30ppm/°C
Protection classIP67 IP68
Electrical
Electrical connectionPigtail with M12 plug or direct cable
Supply voltage12VDC (±20%)/24VDC
Current consumption<20mA (varies with measurement range)
Reverse-polarity protectionMaximum -30VDC
Over-voltage protectionMaximum 36VDC
Insulation strength500VDC
Mounting
Mounting orientationany
MountingInsertion
Position magnetRing magnet ring
Materials
Sensor head17mm diameter 304 stainless steel

SE-PR30 is an intrinsically safe version (Ui 12.5 V, Ii 15 mA, Ci 0 µF, Li 0 mH); Ex certification is applied for under the SE series name, certificate details on request.

Download the SE-PR30 datasheet (PDF)

Specifications, wiring, dimension drawings and the complete ordering code on two pages. No registration required.

Download datasheet (PDF) All magnetostrictive datasheets

Need a 3D model or help confirming the right model? Contact our engineers — reply within 24 hours on working days. 3D models (STEP) available on request.

Dimensions & Wiring

SE-PR30 Dimensions and Electrical Connection

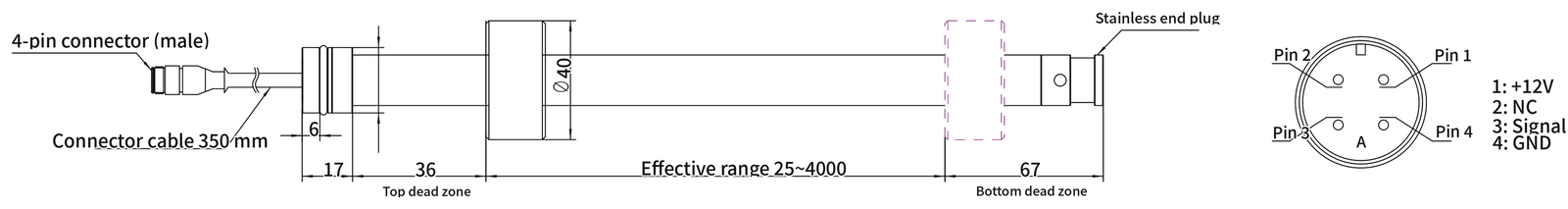

SE-PR30 dimension drawing 1 (mm)
SE-PR30 dimensions in mm. Range figures in drawings are illustrative; the orderable range is given in the specification table.

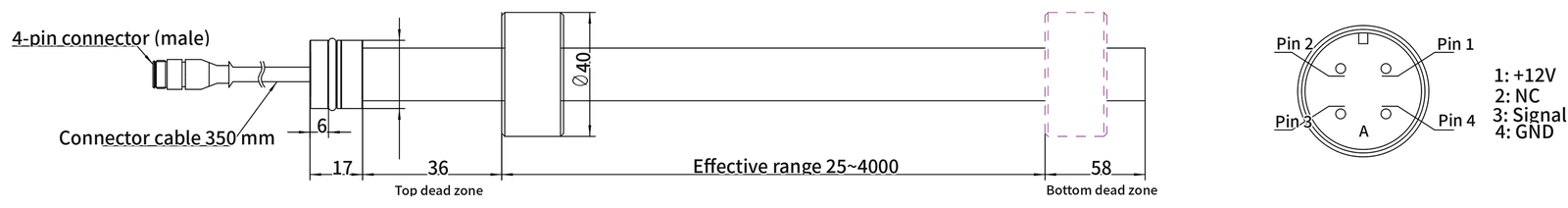

SE-PR30 dimension drawing 2 (mm)
SE-PR30 dimensions in mm. Range figures in drawings are illustrative; the orderable range is given in the specification table.
Main dimensions (mm), read from the drawing above
DimensionValue (mm)
Magnet ring diameterØ40
Head length17
Connector lead length350
Top dead zone36
Bottom dead zone58

Analog connector pinout (4-pin)

1Power+
2Not connected
3Signal output +
4Power - (GND)
Ordering Code

How to Order SE-PR30

Build the part number field by field. Outputs or options listed in the specifications but not in the ordering code are available on request.

SE-PR30-<ring>-<range>-<output>-<connection>[-options]
CodeMeaning
Magnet ring
R40Magnet ring OD 40 mm
R28Magnet ring OD 28 mm
RXSpecified magnet ring
Range
00025–040005 digits in mm, 5 mm steps
Output
V2F0–5 V, zero at rod end
V2R0–5 V reversed (5–0 V), zero at head
V3F0.5–4.5 V, zero at rod end
V3R0.5–4.5 V reversed (4.5–0.5 V)
I1F4–20 mA, zero at rod end
I1R4–20 mA reversed (20–4 mA), zero at head
R4RS485 (Modbus RTU)
XXCustomer-specified (e.g. 0–10 V, customized on request)
Connection
L12Pigtail with M12 plug (standard 350 mm)
C02Direct cable
Options
(none)Series standard dead zones
Z9Customer-specified dead zones

Ordering examples

SE-PR30-R40-00900-V3F-L12Ring OD40, 900 mm, 0.5–4.5 V, M12 pigtail
Selection

When to Choose SE-PR30

Compare SEGMENsensor magnetostrictive position series

Part numberBest forRangeOutputProtection
SGM-PR10Hydraulic cylinder position sensor25–8000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485 / SSIIP67
SGM-PE10Magnetostrictive linear position sensor25–8000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485 / SSIIP67
SGM-PR20IP68 magnetostrictive position sensor25–7500 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SGM-PE20Slim linear position sensor25–4000 mm4–20 mA / 0–10 V / RS485IP67
SE-PR30Intrinsically safe linear position sensor25–4000 mm0.5–4.5 V / 0–5 V / 4–20 mA / RS485IP67 IP68
SGM-PF10Flat head magnetostrictive sensor25–8000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SGM-PF20Compact magnetostrictive sensor25–4000 mm4–20 mA / 0–10 V / 0.5–4.5 V / 0.25–4.75 VIP68
SGM-PR40Compact rod position sensor25–4000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SGM-PR50Miniature linear position sensor25–4000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68

New to the technology? Read How a magnetostrictive position sensor works.

Applications

Typical SE-PR30 Applications

Mining hydraulic supports
Leg and shield cylinder position in underground roof supports, where intrinsically safe circuits are required.
Oil, gas and chemical actuators
Valve and actuator position in classified areas, wired to an approved barrier.
Slim cylinders
Integrated Ø17 mm construction for small-bore cylinders where a standard head does not fit.
Sourcing

Ordering SE-PR30 from SEGMENsensor

1–5 pcsSamples; MOQ confirmed with the quotation
5–7 working daysSample lead time
Per quotationProduction lead time
24 h replyEvery RFQ answered by an engineer

Send the part number, or the stroke, output, mounting and connection you need. Custom ranges, dead zones, cables and magnets are quoted on request.

SEGMENsensor magnetostrictive sensor production testing
Magnetostrictive sensors under production testing at the SEGMENsensor factory.
FAQ

SE-PR30 — Frequently Asked Questions

What are the intrinsic-safety parameters of SE-PR30?
The SE-PR30 datasheet lists Ui 12.5 V, Ii 15 mA, Ci 0 µF and Li 0 mH. These values are used to check compatibility with the barrier or isolator in your system. Ex certification is applied for under the SE series name, and certificate details are provided with the quotation.
Why does SE-PR30 use an SE part number instead of SGM?
All SEGMENsensor explosion-proof models — intrinsically safe or flameproof, position or level — use the SE prefix so that hazardous-area versions are recognisable from the part number alone.
What is the measuring range of SE-PR30?
SE-PR30 is orderable from 25 to 4000 mm in 5 mm steps. Longer ranges and special temperature or pressure versions are available on request.
How do I read the SE-PR30 ordering code?
The code follows SE-PR30-<ring>-<range>-<output>-<connection>[-options]. For example SE-PR30-R40-00900-V3F-L12 means: Ring OD40, 900 mm, 0.5–4.5 V, M12 pigtail. The full option list is in the ordering-code table on this page and in the datasheet.
What is the MOQ and lead time for SE-PR30?
Qualification samples of 1–5 pcs ship in 5–7 working days, production lead time and MOQ are confirmed with the quotation, and we reply to every RFQ within 24 hours.

Need SE-PR30 for Your Project?

Send the part number or your application details — an engineer replies within 24 hours on working days with a quotation, lead time and the datasheet.

Request a Quote for SE-PR30

Tell us your specification — our engineers reply within 24 hours.

OEM volume supply · samples in 5–7 days · info@segmensensor.com
