MINIATURE POSITION SENSOR

SGM-PR50 Miniature Hex-Head Magnetostrictive Position Sensor, 25–4000 mm

SGM-PR50 is the smallest rod-type magnetostrictive position sensor in the SGM range, with a hex head for hydraulic cylinders where space is very limited. It is rated 35 MPa continuous (70 MPa peak), measures 25–4000 mm, is sealed to IP68 and outputs analog or RS485.

25–4000 mmIP68Datasheet PDFOEM volume supply
SGM-PR50 miniature linear position sensor dimension drawing — SEGMENsensor

Key facts

SEGMENsensor SGM-PR50 is the smallest rod-type magnetostrictive position sensor in the SGM range, with a hex head for hydraulic cylinders where space is very limited. It is rated 35 MPa continuous, measures 25–4000 mm, is sealed to IP68 and outputs 4–20 mA, 0–20 mA, 0–10 V, 0–5 V or RS485.

Last updated · SEGMENsensor Engineering Team

Watch: how magnetostrictive position sensors work and how ours are tested

How a Magnetostrictive Position Sensor Works
How a Magnetostrictive Position Sensor WorksOne-minute animation of the magnetostrictive time-of-flight principle: current pulse, Wiedemann-effect twist at the position magnet, torsional wave back to the head, position = wave speed × time.
Transcript

How does a magnetostrictive sensor measure position without contact? Inside the stainless steel rod runs a thin waveguide wire. A ring magnet moves with the piston, the float, or the carriage. First, the electronics send a short current pulse along the wire. The pulse creates a circular magnetic field. Where that field meets the field of the magnet, the wire twists. This is the Wiedemann effect. The twist travels back to the head as a torsional wave, at about two thousand eight hundred metres per second, while a timer measures the travel time. Position equals wave speed times time. The result is absolute position, with no contact and no wear. SEGMENsensor magnetostrictive sensors cover strokes from twenty-five to eight thousand millimetres. Learn more at segmensensor.com.

Magnetostrictive Position Sensors: Production and Testing
Magnetostrictive Position Sensors: Production and TestingReal production footage of SEGMENsensor magnetostrictive position sensors: electronics assembly, laser welding of rods and flanges, burn-in, signal test on an oscilloscope, calibration on a linear test bench and laser-marked nameplates.
1:23 · YouTubeGet a quote →
Transcript

Magnetostrictive position sensors: how SEGMENsensor builds and tests them. It starts with the electronics. Each sensor board is soldered by hand and fitted into the sensor head. The head, cable and connector are assembled on the housing, and heat-shrink sleeves seal the wiring. Rods and flanges are joined by laser welding on a rotary fixture, with a camera to align each seam. The electronics then run on a burn-in rack. Every sensor is tested. The oscilloscope checks the return signal, and a meter checks the output. Each sensor is then calibrated on a linear test bench, where software checks its reading along the stroke. Finally, the nameplate is laser-marked with the model and the company name. Strokes 25–8000 mm · OEM volume supply · Request a quote at segmensensor.com

What is SGM-PR50?

Compact size and high reliability, suitable for hydraulic cylinders with limited space. Measuring range 25-4000mm, analog/RS485 output, 35MPa(continuous) 70MPa(peak). Part number prefix SGM stands for the SEGMENsensor magnetostrictive range; the full ordering code is explained below and in the datasheet.

Updated 2026-10-01 · Values from the SGM-PR50 datasheet, Rev A.

Specifications

SGM-PR50 Specifications

All values from the SGM-PR50 datasheet. Orderable range as listed; longer ranges and special temperature or pressure versions on request.

ParameterValue
Performance
Measuring range25–4000 mm
Output signal0-20mA(max/min load 0/500Ω) / 4-20mA(max/min load 0/500Ω) / 0-10V(min. load >5KΩ) / RS485(MODBUS RTU)
Resolution16-bit D/A
Repeatability±0.005mm
Update time<5ms(depending on range) / 1ms(1m<range<2m) / 2ms(2m<range<3m) / 5ms(3m<range<4m)
Operating conditions
Magnet speedAny
Operating temperature-40~+85℃
Storage temperature-55~+85℃
Humidity90 %, non-condensing
Temperature coefficient<30ppm/℃
Protection classIP68
Mounting
Mounting orientationAny
MountingM18*1.5 or custom
Position magnetRing magnet or float
Electrical
Electrical connectionM12*1 waterproof connector or direct cable
Supply voltage24VDC (±20%) (standard; 12 V and 5 V ranges depending on output and model)
Current consumption<60mA(depends on range)
Reverse-polarity protectionMax. -30VDC
Over-voltage protectionMax. 36VDC
Insulation strength500VDC
Materials
Sensor head304 stainless steel
Protective tube304 stainless steel
Mounting flange304 stainless steel

Download the SGM-PR50 datasheet (PDF)

Specifications, wiring, dimension drawings and the complete ordering code on two pages. No registration required.

Download datasheet (PDF) All magnetostrictive datasheets

Need a 3D model or help confirming the right model? Contact our engineers — reply within 24 hours on working days. 3D models (STEP) available on request.

Dimensions & Wiring

SGM-PR50 Dimensions and Electrical Connection

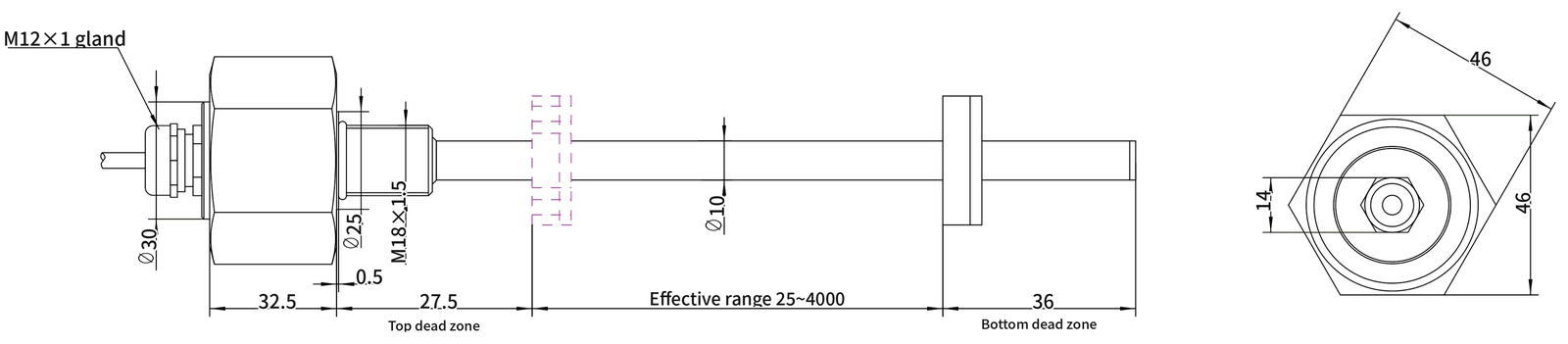

SGM-PR50 dimension drawing 1 (mm)
SGM-PR50 dimensions in mm. Range figures in drawings are illustrative; the orderable range is given in the specification table.

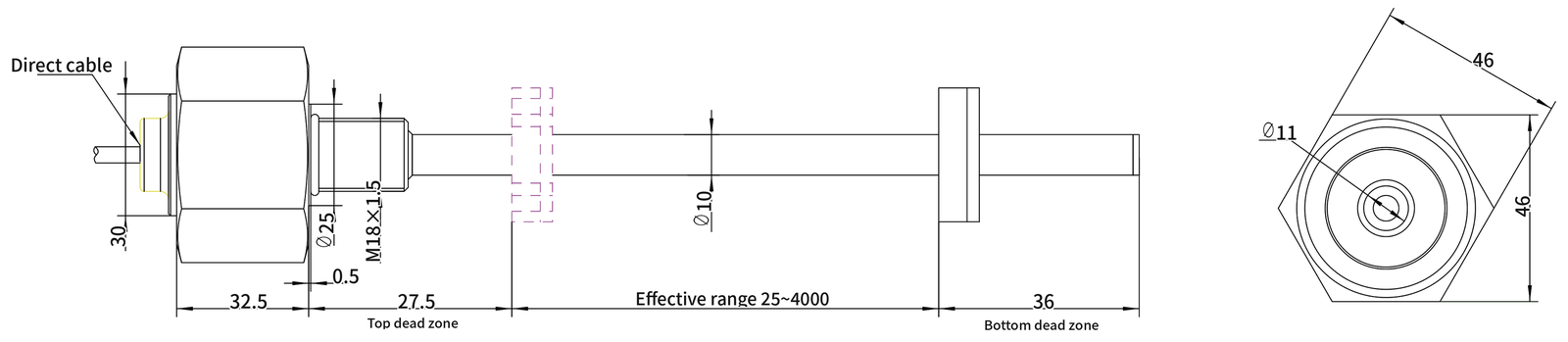

SGM-PR50 dimension drawing 2 (mm)
SGM-PR50 dimensions in mm. Range figures in drawings are illustrative; the orderable range is given in the specification table.
Main dimensions (mm), read from the drawing above
DimensionValue (mm)
Hex across flats46
Head length32.5
Mounting threadM18×1.5
Collar diameterØ25
Rod diameterØ10
Top dead zone27.5
Bottom dead zone36

Analog connector pinout (4-pin)

1Power +12V
2Power - (GND)
3Analog output +
4Analog output -

RS485 connector pinout (4-pin)

1Power +12V
2Power - (GND)
3RS485-A
4RS485-B
Ordering Code

How to Order SGM-PR50

Build the part number field by field. Outputs or options listed in the specifications but not in the ordering code are available on request.

SGM-PR50-<mounting>-<range>-<output>-<connection>[-options]
CodeMeaning
Mounting
18M18×1.5
XXCustom thread
Range
00025–040005 digits in mm, 5 mm steps
Output
I1F4–20 mA, zero at rod end
I1R4–20 mA reversed (20–4 mA), zero at head
I2F0–20 mA, zero at rod end
I2R0–20 mA reversed (20–0 mA), zero at head
V1F0–10 V, zero at rod end
V1R0–10 V reversed (10–0 V), zero at head
V2F0–5 V, zero at rod end
V2R0–5 V reversed (5–0 V), zero at head
R4RS485 (Modbus RTU)
XXCustomer-specified output
Connection
K12M12 connector
C02 … C99Direct cable, number = length in m (C02 = 2 m)
…XSuffix X: customer-specified cable
Options
(none)Series standard dead zones
Z9Customer-specified dead zones

Ordering examples

SGM-PR50-18-00250-I1F-C03250 mm, 4–20 mA, 3 m cable
Selection

When to Choose SGM-PR50

Compare SEGMENsensor magnetostrictive position series

Part numberBest forRangeOutputProtection
SGM-PR10Hydraulic cylinder position sensor25–8000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485 / SSIIP67
SGM-PE10Magnetostrictive linear position sensor25–8000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485 / SSIIP67
SGM-PR20IP68 magnetostrictive position sensor25–7500 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SGM-PE20Slim linear position sensor25–4000 mm4–20 mA / 0–10 V / RS485IP67
SE-PR30Intrinsically safe linear position sensor25–4000 mm0.5–4.5 V / 0–5 V / 4–20 mA / RS485IP67 IP68
SGM-PF10Flat head magnetostrictive sensor25–8000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SGM-PF20Compact magnetostrictive sensor25–4000 mm4–20 mA / 0–10 V / 0.5–4.5 V / 0.25–4.75 VIP68
SGM-PR40Compact rod position sensor25–4000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SGM-PR50Miniature linear position sensor25–4000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68

New to the technology? Read How a magnetostrictive position sensor works.

Applications

Typical SGM-PR50 Applications

Small-bore hydraulic cylinders
Hex head that fits where a round electronics housing will not.
Clamping and fixture cylinders
Short strokes with absolute position and no re-homing.
Compact mobile hydraulics
IP68 stainless construction for outdoor equipment.
Sourcing

Ordering SGM-PR50 from SEGMENsensor

1–5 pcsSamples; MOQ confirmed with the quotation
5–7 working daysSample lead time
Per quotationProduction lead time
24 h replyEvery RFQ answered by an engineer

Send the part number, or the stroke, output, mounting and connection you need. Custom ranges, dead zones, cables and magnets are quoted on request.

SEGMENsensor magnetostrictive sensor production testing
Magnetostrictive sensors under production testing at the SEGMENsensor factory.
FAQ

SGM-PR50 — Frequently Asked Questions

Is SGM-PR50 suitable for short strokes?
Yes. The ordering code starts at 25 mm and goes to 4000 mm in 5 mm steps.
What cable options does SGM-PR50 have?
An M12 connector or a direct cable, with the cable length in metres given in the ordering code (for example C03 = 3 m).
What is the measuring range of SGM-PR50?
SGM-PR50 is orderable from 25 to 4000 mm in 5 mm steps. Longer ranges and special temperature or pressure versions are available on request.
How do I read the SGM-PR50 ordering code?
The code follows SGM-PR50-<mounting>-<range>-<output>-<connection>[-options]. For example SGM-PR50-18-00250-I1F-C03 means: 250 mm, 4–20 mA, 3 m cable. The full option list is in the ordering-code table on this page and in the datasheet.
What is the MOQ and lead time for SGM-PR50?
Qualification samples of 1–5 pcs ship in 5–7 working days, production lead time and MOQ are confirmed with the quotation, and we reply to every RFQ within 24 hours.
Is a 12 V supply version available?
Yes. The standard supply is 24 V DC; 12 V and 5 V supply ranges are available depending on output and model, for example for 12 V vehicle or mobile-machine electrics. Please state the supply voltage and output signal in your inquiry.
