OEM · PRIVATE LABEL · WHITE LABEL

Private-Label Clamp-On Ultrasonic Flow Meters for Instrument Brands

Name: Private-Label Clamp-On Ultrasonic Flow Meter
Brand: SEGMENsensor

SEGMENsensor builds clamp-on ultrasonic flow meters under your brand. The compact U12 one-piece meter covers DN15–DN65 pipes with 4–20 mA and RS485 Modbus outputs, and ships with your faceplate and nameplate, an English display menu, a factory calibration report and neutral export packaging. For instrument brands, distributors and system integrators that sell under their own name.

Start a private-label project All clamp-on models

Your faceplate & nameplate Neutral packaging CE · UKCA Samples in 5–7 days

SEGMENsensor U12 compact clamp-on ultrasonic flow meter, the base model for private-label supply

Key facts

SEGMENsensor supplies clamp-on ultrasonic flow meters as private-label (white-label) products: the meter is built and calibrated in our Shenzhen factory and delivered with your brand on the faceplate and nameplate, an English menu and neutral packaging, so you sell it as your own model.

The U12 one-piece meter fits DN15–DN65 pipes and measures 0.03–10 m/s, with ±2% accuracy (±1% after calibration).
Outputs are any two of 4–20 mA, RS485 Modbus, OCT pulse and one relay; LoRa or 4G can be customised.
Supply is 10–24 V DC, protection IP65, and the sensor cable is 2 m as standard (up to 5 m).
Each unit can ship with a factory calibration report, and every carton is photographed before dispatch for your approval.
Qualification samples of 1–5 pcs ship in 5–7 days; production lead time and order quantity are confirmed with the quotation.

Last updated 2026-10-20 · SEGMENsensor Engineering Team

Watch: how private-label clamp-on flow meter supply works (2 min)

Private-Label Clamp-On Ultrasonic Flow Meter: OEM Supply Under Your BrandHow SEGMENsensor private-label supply works: the U12 base model for DN15–DN65, what we customise (faceplate, nameplate, English menu, neutral cartons), calibration reports, the six project steps and branded samples of 1–5 pcs in 5–7 days.

2:00 · YouTubeChapters & transcript →Get a quote →

Transcript

Looking for a clamp-on ultrasonic flow meter to sell under your own brand? Here is how SEGMENsensor private-label supply works. The usual base model is the U12 one-piece meter. It clamps straight onto DN15 to DN65 pipes, with no pipe cutting, and it is CE and UKCA marked. From the datasheet: velocity from 0.03 to 10 m/s, and ±2% accuracy, or ±1% after calibration. Choose any two of 4–20 mA, RS485 Modbus, pulse or relay. Power is 10–24 V DC, and the housing is IP65. On a private-label meter, we print your logo, colours and model code on the faceplate, and your data on the nameplate. The display menu is in English, with other languages on request for your market. Every private-label meter can ship with a factory calibration report, with three-point calibration available. Neutral export cartons carry no maker marks, and we photograph each packed batch for your approval before it ships. Each meter is tested on the water flow test line before it is packed. A project runs in six steps: your specification, an artwork proof, branded samples, order confirmation, production and calibration, and finally packed-batch approval. Branded qualification samples of 1–5 pieces ship in 5–7 days. Production lead time and order quantity are confirmed with the quotation. Send your specification and brand files through segmensensor.com, and our engineers will reply within 24 hours.

Private label

What can be customised on a private-label meter?

The faceplate, nameplate, display menu language, packaging, calibration paperwork and output combination can all be set to your brand. The table shows what is standard and what is confirmed per project.

Fig. 1 — The six areas of a private-label clamp-on meter. Dashed boxes are artwork you supply.

Item	What we supply	Status
Faceplate	Front label printed with your logo, colours and model code	Standard for private label
Nameplate	Rating label with your brand, model and the data you specify	Standard for private label
Display menu	English menu; no Chinese text on the display	Standard; other menu languages on request for your market
Packaging	Neutral export carton suitable for international courier, without SEGMENsensor marks or Chinese labels	Standard for private label
Packing approval	Photo of each packed batch (converter and sensors together) sent before dispatch	Available to every private-label customer
Calibration	Factory calibration report per unit; three-point calibration available	Available to every private-label customer
Outputs	Any two of 4–20 mA, RS485 Modbus, OCT pulse and one relay (U12)	Chosen at order
Wireless	LoRa or 4G communication (U12)	Customised per project
Cable	2 m standard, up to 5 m (U12)	Chosen at order
Energy metering	E type heat / cooling energy meter with PT1000 temperature sensors	Chosen at order

We do not disclose customer names, brands or volumes, and private-label products carry no reference to SEGMENsensor.

Models

Which clamp-on models can be private-labelled?

Any model in the range can be supplied under your brand. Small-pipe buyers usually start with the U12 or U13 one-piece meters; the U10S and U20 cover larger pipes and portable surveys.

Parameter	U12 one-piece	U13 one-piece	U10S wall-mount	U20 handheld
Pipe size	DN15–DN65	DN10–DN40 (OD 12–52 mm)	15–1200 mm	25–1200 mm (1"–48")
Velocity	0.03–10 m/s	0.15–10 m/s	±0.03 to ±5 m/s	±0.01 to ±12 m/s
Accuracy	±2% (±1% after calibration)	<3% FS (<1.5% FS after calibration)	±1%	±1%
Outputs	Two of 4–20 mA, RS485 Modbus, OCT, relay	4–20 mA, RS485 Modbus; optional OCT or relay	Two of 4–20 mA, pulse, RS232 / RS485 Modbus	Two of 4–20 mA, RS485 Modbus, OCT, relay
Supply	10–24 V DC	20–28 V DC	10–36 V DC; optional 90–245 V AC	3000 mAh battery, about 16 h
Protection	IP65	See datasheet	Transmitter IP65, sensors IP68	Sensors IP68
Certifications	CE, UKCA	CE, UKCA	CE, UKCA	CE, UKCA

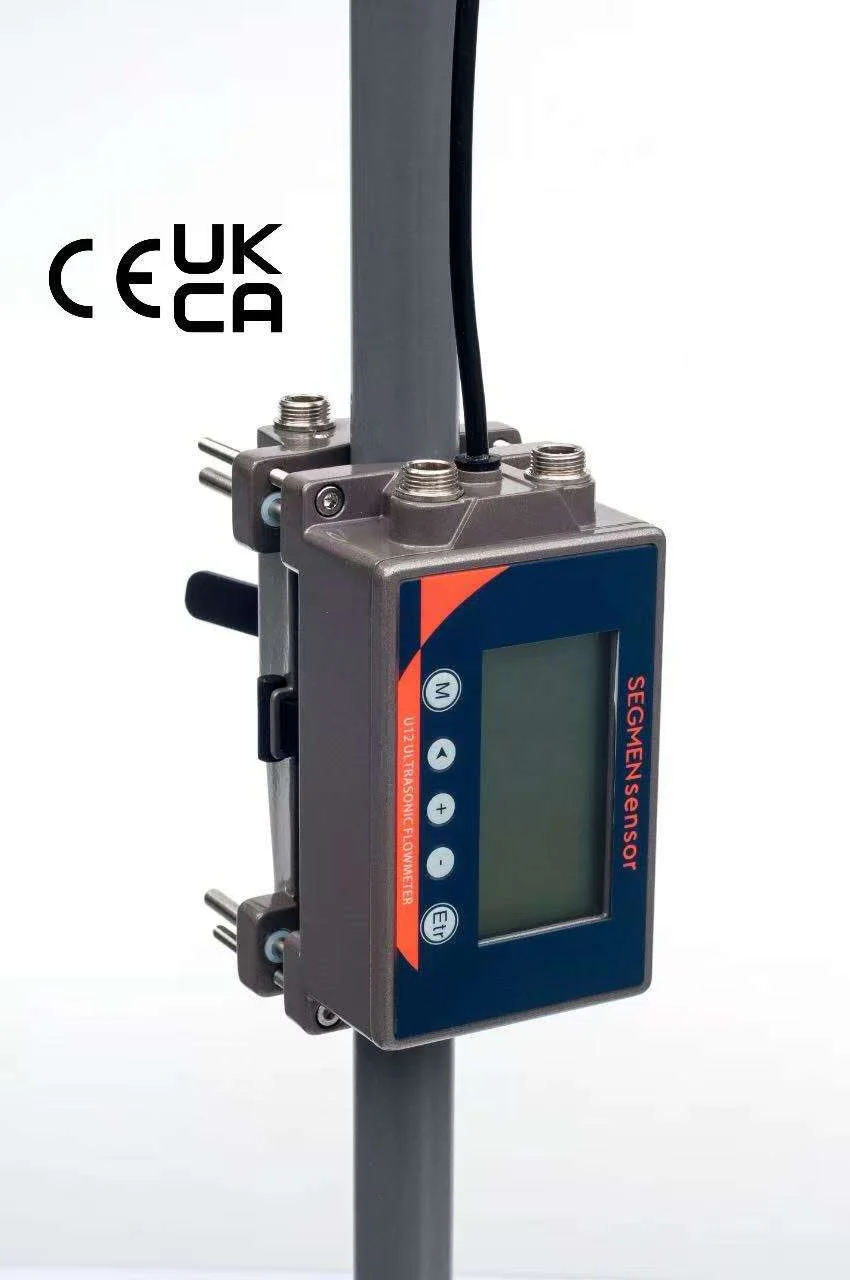

SEGMENsensor U12 compact clamp-on ultrasonic flow meter clamped on a vertical pipe, with CE and UKCA marks — U12 clamped on the pipe — the standard version shown before private-label artwork is applied.

U12: the usual base for a small-pipe private-label range

The U12 clamps directly onto DN15–DN65 pipes with the transducers built into the housing, so there is no separate converter to mount and no pipe cutting. The front faceplate carries the brand, model code and keypad graphics — this is the area replaced with your artwork. Cable connections are at the top of the housing, and the meter is CE and UKCA marked.

U12 maximum flow by pipe size

Pipe size	DN15	DN20	DN25	DN32	DN40	DN50	DN65
Upper flow limit (L/min)	60	100	200	300	400	600	1000

Values from the SEGMENsensor U10–U20 datasheets. Minimum measurable pipe inner diameter for the U12 is 12 mm. Full specifications: clamp-on ultrasonic flow meters and portable clamp-on flow meter.

Process

How does a private-label project run?

It runs in six steps: specification, artwork proof, qualification samples, approval, production and packed-batch approval before dispatch.

Send the specification

Model, pipe sizes, outputs, supply voltage, cable length, medium temperature and expected annual volume.

Approve the artwork

You send logo, faceplate and nameplate files; we return a proof of the faceplate, nameplate and carton for sign-off.

Test the samples

Qualification samples of 1–5 pcs ship in 5–7 days with your branding and calibration reports.

Confirm the order

After sample approval we confirm production lead time, order quantity and packing with the quotation.

Production and calibration

Each meter is tested on our water flow test line and calibrated before packing.

Packed-batch approval

We photograph the packed batch for your approval, then ship by courier or to your forwarder.

Checklist: what to send with your RFQ

Model or pipe size range (for example DN15–DN40 and DN50–DN65)
Output pair (for example 4–20 mA + RS485 Modbus) and supply voltage
Medium and temperature (water, glycol, other single clean liquids)
Brand name, model code and the data to print on the nameplate
Menu language, packaging requirements and documents needed (calibration report)
Expected annual volume and target markets

Who it is for

Who buys private-label clamp-on flow meters?

Typical buyers, evaluated per project.

🏷️

Instrument brands

Companies that sell flow, level and pressure instruments under their own name and want a compact clamp-on meter in the range.

🚚

Distributors

Regional distributors that want their own model code, faceplate and packaging instead of reselling a third-party brand.

📡

IoT and monitoring integrators

Water and energy monitoring platforms that need RS485 Modbus or LoRa / 4G meters for small pipes, branded as part of their system.

🌡️

HVAC and energy metering

Building services and submetering companies using the E type heat / cooling energy meter with PT1000 sensors.

FAQ

Private-Label Clamp-On Flow Meters — Frequently Asked Questions

Answers for instrument brands and distributors planning a private-label range.

Can you put our brand on the flow meter?

Yes. We print your logo, colours and model code on the faceplate and your data on the nameplate. You send the artwork and we return a proof for approval before samples are built.

Is the packaging neutral?

Yes. Private-label meters ship in a neutral export carton suitable for international courier, with no SEGMENsensor marks and no Chinese labels on the product or packaging. We can photograph the packed batch for your approval before dispatch.

Which display languages are available?

The standard private-label menu is English, with no Chinese text on the display. Other menu languages can be added on request for your target market.

Do the meters come with calibration reports?

Yes, on request each unit ships with a factory calibration report, and three-point calibration is available. The U12 is specified at ±2%, or ±1% after calibration.

How many units do we need to start?

You can start with 1–5 branded qualification samples, which ship in 5–7 days. Production lead time and order quantity are confirmed with the quotation and planned around your annual volume.

What certifications do the meters carry?

The U10, U10S, U11, U12, U13 and U20 clamp-on meters are CE and UKCA marked. Certificate copies are available on request with the quotation.

Request a Quote for Private-Label Clamp-On Flow Meters

Tell us your specification — our engineers reply within 24 hours.
