STAINLESS MAGNETOSTRICTIVE LEVEL SENSOR

SGM-LS10 Stainless-Steel Magnetostrictive Level Sensor, 25–8000 mm, IP68

SGM-LS10 is a stainless-steel rod magnetostrictive level sensor for continuous tank level. A float rides on the 304 stainless tube and the sensor reports its absolute position over 25–8000 mm with ±0.005 mm repeatability, as 4–20 mA, 0–20 mA, 0–10 V, 0–5 V or RS485, sealed to IP68 for indoor or outdoor tanks.

25–8000 mmIP68Datasheet PDFOEM volume supply
SGM-LS10 magnetostrictive level sensor dimension drawing — SEGMENsensor

Key facts

SEGMENsensor SGM-LS10 is a stainless-steel rod magnetostrictive level sensor for continuous tank level. A float rides on the 304 stainless tube and the sensor reports its absolute position over 25–8000 mm with ±0.005 mm repeatability, as 4–20 mA, 0–20 mA, 0–10 V, 0–5 V or RS485, sealed to IP68.

Last updated · SEGMENsensor Engineering Team

Watch: magnetostrictive level transmitter installation and wiring

Magnetostrictive Level Transmitter: How It Works, Installation and Wiring
Magnetostrictive Level Transmitter: How It Works, Installation and WiringHow a float and waveguide measure absolute level, which model fits your tank, installation, 2-wire 4–20 mA or RS485 wiring, and scaling the signal.
2:45 · YouTubeGet a quote →
Transcript

Magnetostrictive level transmitters: how they work, which one to choose, and how to install and wire one. A float with a built-in magnet rides on a stainless steel rod. Inside the rod runs a thin waveguide wire. The electronics send a current pulse along the wire. Where it meets the field of the float magnet, the wire twists, and a torsional wave travels back to the head. Its travel time gives the float position: an absolute level reading, with no recalibration after a power loss. A second float can measure the interface between two liquids. Pick the model for the tank. The SGM-LS10 stainless rod covers 25–8000 mm. The SGM-LC10, with a PP head and PFA float, is for corrosive liquids. The SE-LX20 has a flameproof housing and a rigid rod, with level and interface floats. The SE-LX30 uses a flexible cable for tall tanks. Mount the transmitter vertically on the tank top, by thread or flange. The float must pass through the nozzle, or be fitted from inside the tank. Keep the rod away from the inlet stream and the agitator, and use a stilling well in turbulent tanks. Check the inactive zones at the top and bottom of the rod before you set the range. Wiring: on 2-wire models, one cable pair carries the 24 V supply and the 4–20 mA signal to the PLC analog input. RS485 models report the level over Modbus RTU. Scale it like any 4–20 mA signal: subtract 4 mA, divide by 16, and multiply by the range. On the production line, rods and flanges are laser-welded, and the return signal of each sensor is checked on an oscilloscope. The reading is then checked on a test bench, and the nameplate is laser-marked. Before you order, specify the range, output, process connection, float material and temperature. Repeatability is ±0.005 mm on the SGM-LS10. SEGMENsensor magnetostrictive level transmitters. OEM volume supply. Datasheets and quotes at segmensensor.com.

Stainless Steel Sensor Housings: Sealed and Leak-Tested
Stainless Steel Sensor Housings: Sealed and Leak-TestedProduction footage of stainless steel housings and rods for level and position sensors: machined housings, threaded process connections, pneumatic pressing and an air-pressure leak test under water for every sealed assembly.
Transcript

Stainless steel housings and rods for level and position sensors. On the production line, machined stainless steel housings are sorted and checked before assembly. Sensor rods are fitted with threaded process connections. Parts are joined on a pneumatic press. Every sealed assembly is then leak-tested: it is pressurised with air and held under water, where any leak would show as bubbles. Request a quote at segmensensor.com.

What is SGM-LS10?

The stainless steel housing is suitable for liquid level measurement both outdoors and indoors. Part number prefix SGM stands for the SEGMENsensor magnetostrictive range; the full ordering code is explained below and in the datasheet.

Updated 2026-10-01 · Values from the SGM-LS10 datasheet, Rev A.

Specifications

SGM-LS10 Specifications

All values from the SGM-LS10 datasheet. Orderable range as listed; longer ranges and special temperature or pressure versions on request.

ParameterValue
Product parameters - output types
Analog output0-10VDC / 0-5VDC / 4-20mA / 0-20mA
Digital outputRS485(modbus RTU)
Performance
Measuring range25–8000 mm
Output signal0-20mA(max/min load 0/500Ω) 4-20mA(max/min load 0/500Ω) 0-10V(min. load >5KΩ) RS485(MODBUS RTU)
Resolution16-bit DA
Repeatability±0.005mm
Update timedepending on range
Operating conditions
Magnet speedany
Operating temperature-40~+85℃
Storage temperature-55~+85℃
Humidity90% humidity, no frost forming.
Temperature coefficient<30ppm/℃
Protection classIP68
Mounting
Mounting orientationany
MountingM18*1.5 or customized by customers
Position magnetRing magnet or float
Electrical
Electrical connectionM12*1 waterproof connector or direct cable exit
Supply voltage24VDC (±20%) (standard; 12 V and 5 V ranges depending on output and model)
Current consumptionvaries with range
Reverse-polarity protectionMaximum -30VDC
Over-voltage protectionMaximum 36VDC
Insulation strength500VDC
Materials
Sensor head304 stainless steel
Protective tube304 stainless steel
Mounting flange304 stainless steel

Download the SGM-LS10 datasheet (PDF)

Specifications, wiring, dimension drawings and the complete ordering code on two pages. No registration required.

Download datasheet (PDF) All magnetostrictive datasheets

Need a 3D model or help confirming the right model? Contact our engineers — reply within 24 hours on working days. 3D models (STEP) available on request.

Dimensions & Wiring

SGM-LS10 Dimensions and Electrical Connection

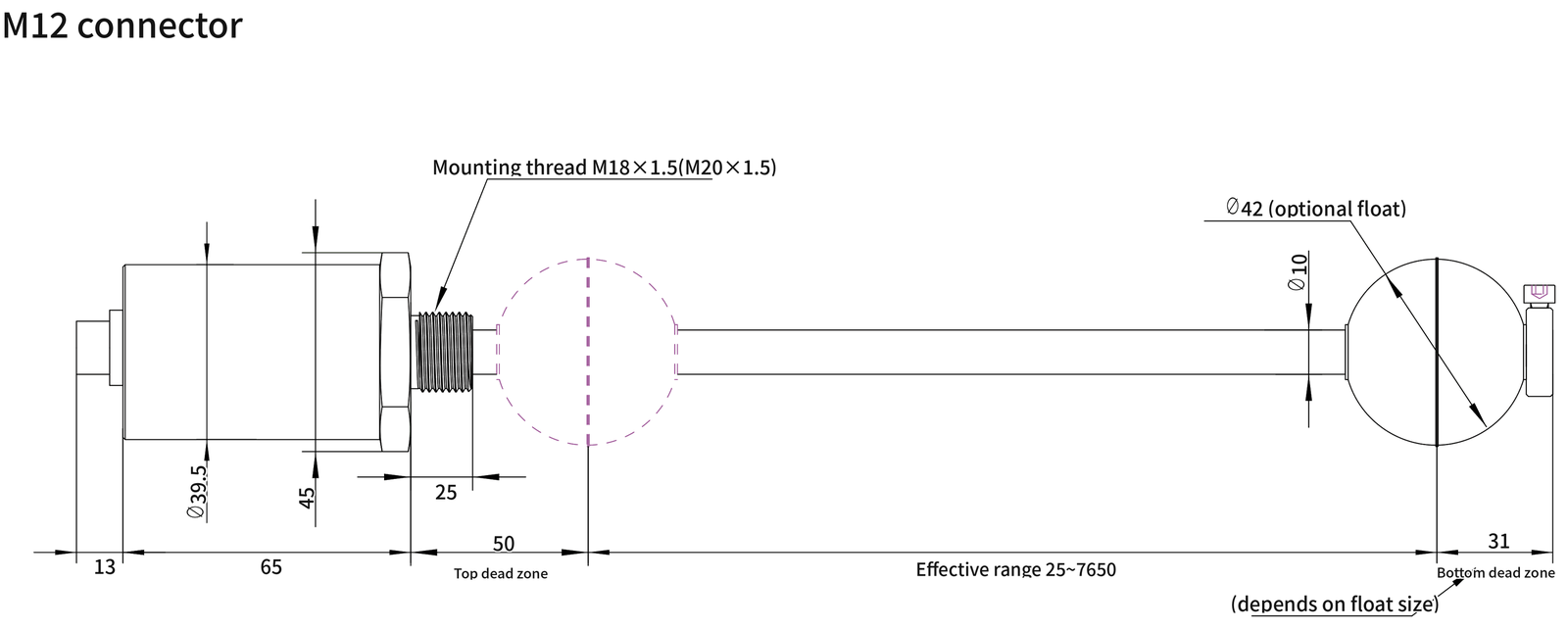

SGM-LS10 dimension drawing 1 (mm)
SGM-LS10 dimensions in mm. Range figures in drawings are illustrative; the orderable range is given in the specification table.

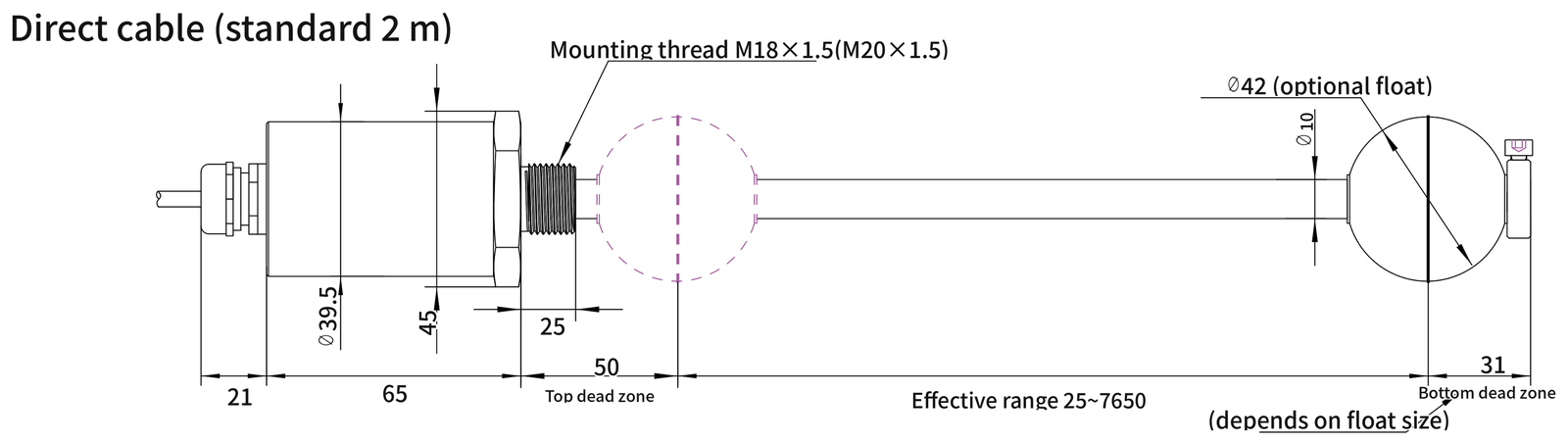

SGM-LS10 dimension drawing 2 (mm)
SGM-LS10 dimensions in mm. Range figures in drawings are illustrative; the orderable range is given in the specification table.
Main dimensions (mm), read from the drawing above
DimensionValue (mm)
Cable gland length21
Head length65
Head diameterØ39.5
Hex size45
Mounting threadM18×1.5 (M20×1.5)
Thread length25
Rod diameterØ10
Float diameter (optional floats)Ø42
Top dead zone50
Bottom dead zone (varies with float)31

Analog connector pinout (4-pin)

1+12V power supply
2Power - (GND)
3Analog output +
4Analog output -

RS485 connector pinout (4-pin)

1+12V power supply
2Power - (GND)
3RS485-A
4RS485-B
Ordering Code

How to Order SGM-LS10

Build the part number field by field. Outputs or options listed in the specifications but not in the ordering code are available on request.

SGM-LS10-<mounting>-<range>-<output>-<connection>[-options]
CodeMeaning
Mounting
18M18×1.5
XXCustom thread
Range
00025–080005 digits in mm, 5 mm steps
Output
I1F4–20 mA, zero at rod end
I1R4–20 mA reversed (20–4 mA), zero at head
I2F0–20 mA, zero at rod end
I2R0–20 mA reversed (20–0 mA), zero at head
V1F0–10 V, zero at rod end
V1R0–10 V reversed (10–0 V), zero at head
V2F0–5 V, zero at rod end
V2R0–5 V reversed (5–0 V), zero at head
R4RS485 (Modbus RTU)
XXCustomer-specified output
Connection
K12M12 connector
C02 … C99Direct cable, number = length in m (C02 = 2 m)
…XSuffix X: customer-specified cable
Options
(none)Series standard dead zones
Z9Customer-specified dead zones

Ordering examples

SGM-LS10-18-01500-I1F-C051500 mm, 4–20 mA, 5 m cable
Selection

When to Choose SGM-LS10

Compare SEGMENsensor magnetostrictive level series

Part numberBest forRangeOutputProtection
SGM-LS10Magnetostrictive level sensor25–8000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SGM-LC10Corrosion resistant magnetostrictive level sensor25–1000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SE-LX10Magnetostrictive transmitter for magnetic level indicator200–8000 mm4–20 mA / 0–10 V / 0–5 V / RS485IP67
SE-LX20Explosion proof magnetostrictive level transmitter200–8000 mm4–20 mA / 0–10 V / 0–5 V / RS485IP67
SE-LX30Flexible cable magnetostrictive level transmitter200–8000 mm4–20 mA / 0–10 V / 0–5 V / RS485IP67
SGM-LK10Small tank magnetostrictive level sensor25–4000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68

New to the technology? Read How to choose a liquid level sensor.

Applications

Typical SGM-LS10 Applications

Storage and day tanks
Continuous level for fuel, oil and water tanks with high repeatability.
Hydraulic power units and lube reservoirs
Reservoir level on machines with an M18×1.5 top mounting.
Outdoor installations
Stainless head sealed to IP68 for weather exposure.
Sourcing

Ordering SGM-LS10 from SEGMENsensor

1–5 pcsSamples; MOQ confirmed with the quotation
5–7 working daysSample lead time
Per quotationProduction lead time
24 h replyEvery RFQ answered by an engineer

Send the part number, or the stroke, output, mounting and connection you need. Custom ranges, dead zones, cables and magnets are quoted on request.

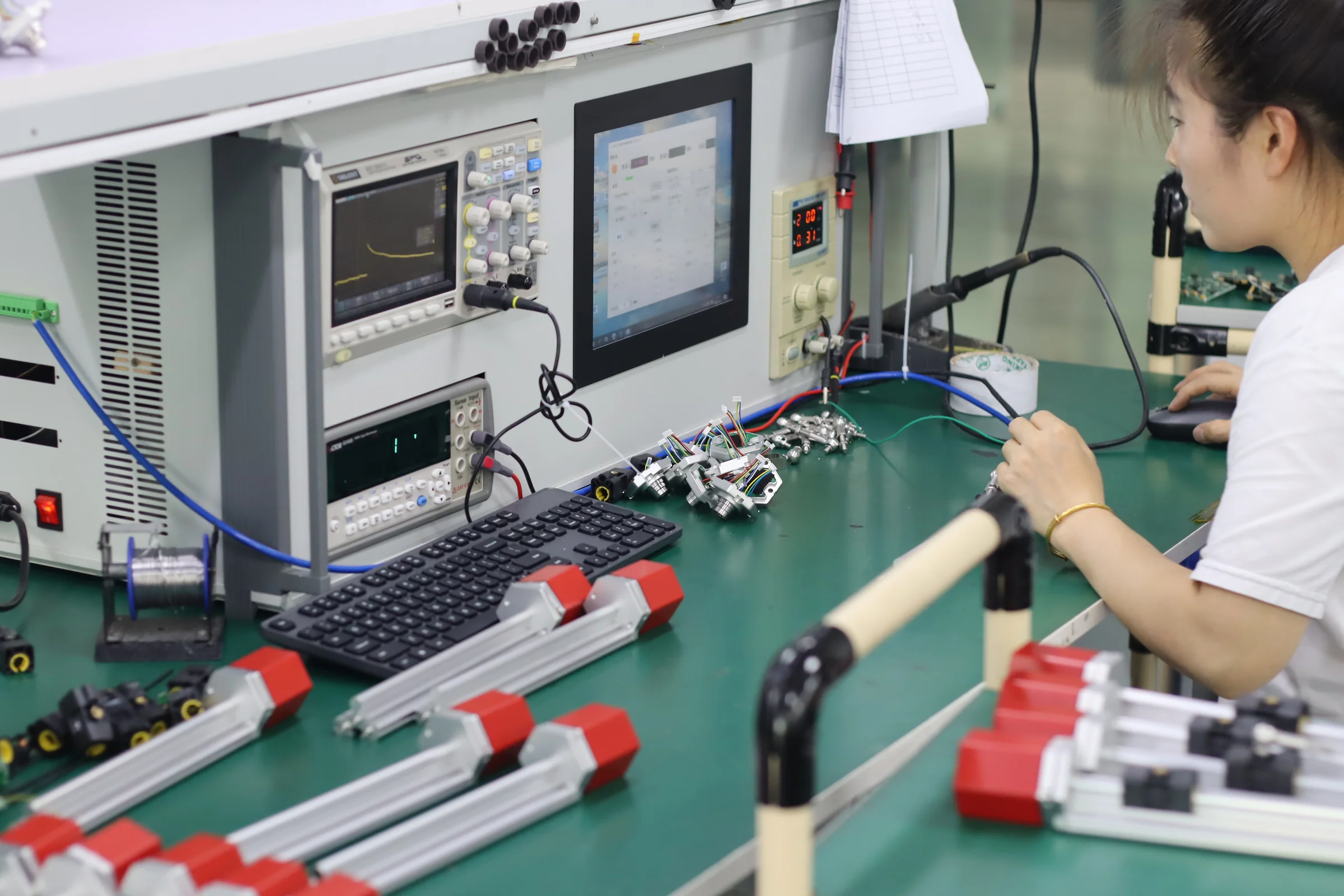

SEGMENsensor magnetostrictive sensor production testing
Magnetostrictive sensors under production testing at the SEGMENsensor factory.
FAQ

SGM-LS10 — Frequently Asked Questions

Does SGM-LS10 need calibration for liquid density?
No. The float position is measured directly, so the level reading does not depend on the liquid density as a hydrostatic sensor does. The float itself must be chosen for the liquid density so it floats at the surface.
How is SGM-LS10 mounted?
With an M18×1.5 thread as standard, or a customer-specified thread (XX in the ordering code).
What is the measuring range of SGM-LS10?
SGM-LS10 is orderable from 25 to 8000 mm in 5 mm steps. Longer ranges and special temperature or pressure versions are available on request.
How do I read the SGM-LS10 ordering code?
The code follows SGM-LS10-<mounting>-<range>-<output>-<connection>[-options]. For example SGM-LS10-18-01500-I1F-C05 means: 1500 mm, 4–20 mA, 5 m cable. The full option list is in the ordering-code table on this page and in the datasheet.
What is the MOQ and lead time for SGM-LS10?
Qualification samples of 1–5 pcs ship in 5–7 working days, production lead time and MOQ are confirmed with the quotation, and we reply to every RFQ within 24 hours.
