FLAMEPROOF LEVEL TRANSMITTER · RIGID ROD

SE-LX20 Explosion-Proof Magnetostrictive Level Transmitter, Rigid Rod, 200–8000 mm

SE-LX20 is a flameproof magnetostrictive level transmitter with a rigid stainless rod inserted through a DN25, DN50 or DN100 flange. It measures 200–8000 mm with one float for level or two floats for level plus interface, shows the value on a local display, and outputs 4–20 mA + HART (parameters settable with a HART handheld communicator), 0–10 V or RS485.

200–8000 mmIP67Datasheet PDFOEM volume supply

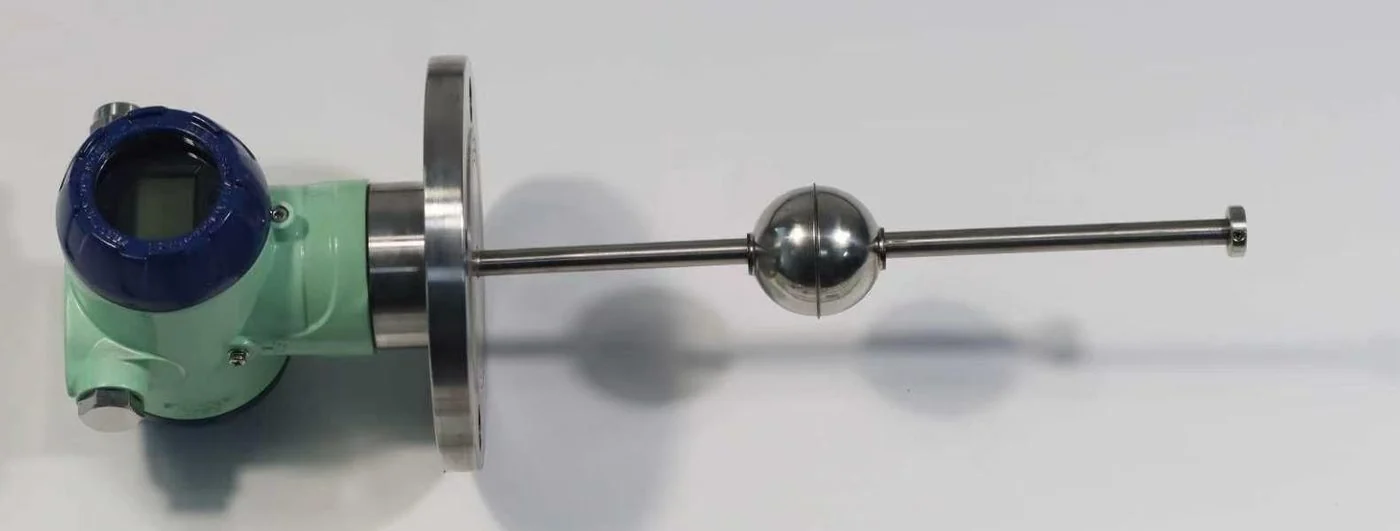

SE-LX20 explosion proof magnetostrictive level transmitter — SEGMENsensor

Key facts

SEGMENsensor SE-LX20 is a flameproof magnetostrictive level transmitter with a rigid 304 stainless rod inserted through a DN25, DN50 or DN100 flange. It measures 200–8000 mm with one float for level or two floats for level plus interface, shows the value locally and outputs 4–20 mA + HART (parameters settable with a HART handheld communicator), 0–10 V or RS485.

Last updated · SEGMENsensor Engineering Team

Watch: magnetostrictive level transmitter installation and wiring

Magnetostrictive Level Transmitter: How It Works, Installation and Wiring
Magnetostrictive Level Transmitter: How It Works, Installation and WiringHow a float and waveguide measure absolute level, which model fits your tank, installation, 2-wire 4–20 mA or RS485 wiring, and scaling the signal.
2:45 · YouTubeGet a quote →
Transcript

Magnetostrictive level transmitters: how they work, which one to choose, and how to install and wire one. A float with a built-in magnet rides on a stainless steel rod. Inside the rod runs a thin waveguide wire. The electronics send a current pulse along the wire. Where it meets the field of the float magnet, the wire twists, and a torsional wave travels back to the head. Its travel time gives the float position: an absolute level reading, with no recalibration after a power loss. A second float can measure the interface between two liquids. Pick the model for the tank. The SGM-LS10 stainless rod covers 25–8000 mm. The SGM-LC10, with a PP head and PFA float, is for corrosive liquids. The SE-LX20 has a flameproof housing and a rigid rod, with level and interface floats. The SE-LX30 uses a flexible cable for tall tanks. Mount the transmitter vertically on the tank top, by thread or flange. The float must pass through the nozzle, or be fitted from inside the tank. Keep the rod away from the inlet stream and the agitator, and use a stilling well in turbulent tanks. Check the inactive zones at the top and bottom of the rod before you set the range. Wiring: on 2-wire models, one cable pair carries the 24 V supply and the 4–20 mA signal to the PLC analog input. RS485 models report the level over Modbus RTU. Scale it like any 4–20 mA signal: subtract 4 mA, divide by 16, and multiply by the range. On the production line, rods and flanges are laser-welded, and the return signal of each sensor is checked on an oscilloscope. The reading is then checked on a test bench, and the nameplate is laser-marked. Before you order, specify the range, output, process connection, float material and temperature. Repeatability is ±0.005 mm on the SGM-LS10. SEGMENsensor magnetostrictive level transmitters. OEM volume supply. Datasheets and quotes at segmensensor.com.

How a Magnetostrictive Position Sensor Works
How a Magnetostrictive Position Sensor WorksOne-minute animation of the magnetostrictive time-of-flight principle: current pulse, Wiedemann-effect twist at the position magnet, torsional wave back to the head, position = wave speed × time.
Transcript

How does a magnetostrictive sensor measure position without contact? Inside the stainless steel rod runs a thin waveguide wire. A ring magnet moves with the piston, the float, or the carriage. First, the electronics send a short current pulse along the wire. The pulse creates a circular magnetic field. Where that field meets the field of the magnet, the wire twists. This is the Wiedemann effect. The twist travels back to the head as a torsional wave, at about two thousand eight hundred metres per second, while a timer measures the travel time. Position equals wave speed times time. The result is absolute position, with no contact and no wear. SEGMENsensor magnetostrictive sensors cover strokes from twenty-five to eight thousand millimetres. Learn more at segmensensor.com.

Magnetostrictive Position Sensors: Production and Testing
Magnetostrictive Position Sensors: Production and TestingReal production footage of SEGMENsensor magnetostrictive position sensors: electronics assembly, laser welding of rods and flanges, burn-in, signal test on an oscilloscope, calibration on a linear test bench and laser-marked nameplates.
1:23 · YouTubeGet a quote →
Transcript

Magnetostrictive position sensors: how SEGMENsensor builds and tests them. It starts with the electronics. Each sensor board is soldered by hand and fitted into the sensor head. The head, cable and connector are assembled on the housing, and heat-shrink sleeves seal the wiring. Rods and flanges are joined by laser welding on a rotary fixture, with a camera to align each seam. The electronics then run on a burn-in rack. Every sensor is tested. The oscilloscope checks the return signal, and a meter checks the output. Each sensor is then calibrated on a linear test bench, where software checks its reading along the stroke. Finally, the nameplate is laser-marked with the model and the company name. Strokes 25–8000 mm · OEM volume supply · Request a quote at segmensensor.com

What is SE-LX20?

Flange-mounted rigid rod for direct insertion; flameproof housing with local display, for level measurement on automated equipment in hazardous areas such as petroleum and chemical plants, ranges up to 8 m. Where headroom above the tank is limited, choose the SE-LX30 flexible-cable version. Part number prefix SE marks the explosion-proof version; the full ordering code is explained below and in the datasheet.

Updated 2026-10-01 · Values from the SE-LX20 datasheet, Rev A.

Specifications

SE-LX20 Specifications

All values from the SE-LX20 datasheet. Orderable range as listed; longer ranges and special temperature or pressure versions on request.

ParameterValue
Product parameters - output types
Analog output2-wire 4-20mA + HART (parameters settable with a HART handheld communicator) / 4-wire (3-wire) 4-20mA/0-10V
Digital outputRS485(MODBUS-RTU)
Performance
Measuring range200–8000 mm
Output signal4-20mA(max/min load 0/500Ω) 0-10V(min. load >5KΩ) RS485(MODBUS RTU)
Resolution1mm、0.1mm
Non-linearity±1mm
Repeatability±1mm、±0.1mm
Update timeadjustable via damping time setting
Operating conditions
Magnet speedany
Measuring rod temperature-40~+85℃, -40~+250℃ (high-temperature version)
Electronic head temperature-30~+85℃
Storage temperature-55~+85℃
Humidity90% humidity, no frost forming.
Temperature coefficient<30ppm/℃
Protection classIP67
Mounting
Mounting orientationFlange mounting, rigid rod insertion
MountingDN25 / DN50 / DN100 flange or custom
Position magnetsingle float, double float
Electrical
Electrical connectionexplosion-proof terminal housing, 3-core terminal / 4-core terminal
Supply voltage24VDC (+20%) (standard; 12 V and 5 V ranges depending on output and model)
Current consumptionvaries with range
Reverse-polarity protectionMaximum -30VDC
Over-voltage protectionMaximum 36VDC
Insulation strength500VDC
Materials
Sensor headaluminium alloy
Protective tube304 stainless steel
Mounting flange304 stainless steel

The SE-LX series is flameproof; Ex certification is applied for under the SE-LX series name, certificate details on request.

Download the SE-LX20 datasheet (PDF)

Specifications, wiring, dimension drawings and the complete ordering code on two pages. No registration required.

Download datasheet (PDF) All magnetostrictive datasheets

Need a 3D model or help confirming the right model? Contact our engineers — reply within 24 hours on working days. 3D models (STEP) available on request.

Dimensions & Wiring

SE-LX20 Dimensions and Electrical Connection

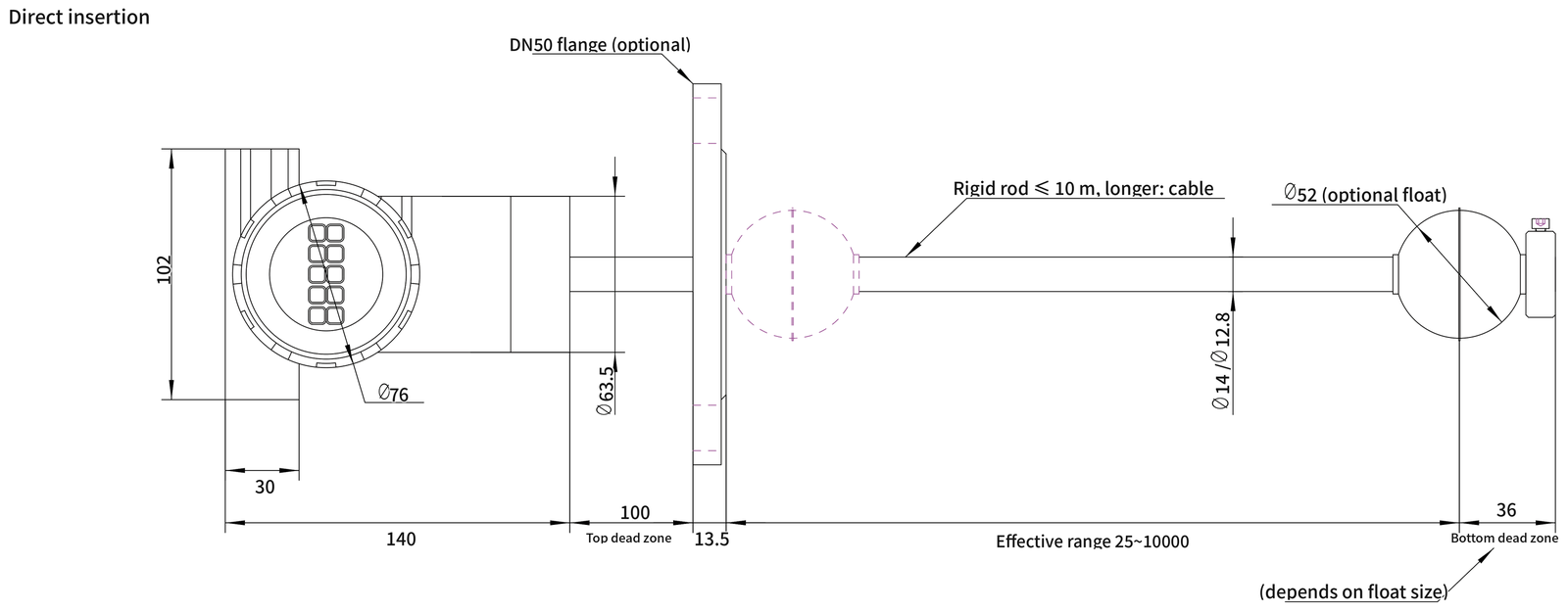

SE-LX20 dimension drawing (mm)
SE-LX20 dimensions in mm. Range figures in drawings are illustrative; the orderable range is given in the specification table.
Main dimensions (mm), read from the drawing above
DimensionValue (mm)
Housing height102
Housing depth30
Head length140
Housing neck diameterØ63.5
Flange (optional)DN50
Flange thickness13.5
Rod diameterØ14 / Ø12.8
Float diameter (optional floats)Ø52
Top dead zone100
Bottom dead zone (varies with float)36

2-wire 4–20 mA wiring

124V power +
224V power - (GND)
3Not connected (NC)

4-wire analog / RS485 wiring

124V power +
224V power - (GND)
3Analog signal + / 485A
4Analog signal - / 485B

Interface-level wiring

1Channel 1 power +
2Channel 1 power -
3Channel 2 power +
4Channel 2 power -
Ordering Code

How to Order SE-LX20

Build the part number field by field. Outputs or options listed in the specifications but not in the ordering code are available on request.

SE-LX20-<flange>-<range>-<output>-<floats>-<W2/W4>
CodeMeaning
Flange
F25 / F50 / F100Flange DN25 / DN50 / DN100
FXCustom flange
Range
00200–080005 digits in mm, 5 mm steps
Output
I1F4–20 mA, zero at rod end
I1R4–20 mA reversed (20–4 mA), zero at head
I1DTwo 4–20 mA outputs (two floats)
V1F0–10 V, zero at rod end
V1R0–10 V reversed (10–0 V), zero at head
V2F0–5 V, zero at rod end
V2R0–5 V reversed (5–0 V), zero at head
R4RS485 (Modbus RTU)
Floats
1Fdd1 float, dd = medium density ×10 (0.8 → 08)
2FddFdd2 floats (interface), both densities
Options
W22-wire
W44-wire

Ordering examples

SE-LX20-F50-03000-I1D-2F08F11-W2Rigid rod, DN50, 3000 mm, two floats for interface (density 0.8 / 1.1)
Selection

When to Choose SE-LX20

Compare SEGMENsensor magnetostrictive level series

Part numberBest forRangeOutputProtection
SGM-LS10Magnetostrictive level sensor25–8000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SGM-LC10Corrosion resistant magnetostrictive level sensor25–1000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SE-LX10Magnetostrictive transmitter for magnetic level indicator200–8000 mm4–20 mA / 0–10 V / 0–5 V / RS485IP67
SE-LX20Explosion proof magnetostrictive level transmitter200–8000 mm4–20 mA / 0–10 V / 0–5 V / RS485IP67
SE-LX30Flexible cable magnetostrictive level transmitter200–8000 mm4–20 mA / 0–10 V / 0–5 V / RS485IP67
SGM-LK10Small tank magnetostrictive level sensor25–4000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68

New to the technology? Read How to choose a liquid level sensor.

Applications

Typical SE-LX20 Applications

Petroleum and chemical storage
Continuous inventory level in hazardous areas with a flameproof housing.
Oil-water separators
Two floats report total level and the oil-water interface from one transmitter.
Process vessels on skids
Rigid rod up to 8 m for vessels with enough headroom above the flange.
Sourcing

Ordering SE-LX20 from SEGMENsensor

1–5 pcsSamples; MOQ confirmed with the quotation
5–7 working daysSample lead time
Per quotationProduction lead time
24 h replyEvery RFQ answered by an engineer

Send the part number, or the stroke, output, mounting and connection you need. Custom ranges, dead zones, cables and magnets are quoted on request.

SEGMENsensor magnetostrictive sensor production testing
Magnetostrictive sensors under production testing at the SEGMENsensor factory.
FAQ

SE-LX20 — Frequently Asked Questions

How do I order floats for SE-LX20?
The float field of the ordering code gives the number of floats and the liquid density ×10. For example 1F08 is one float for density 0.8; 2F08F11 is two floats for interface between liquids of density 0.8 and 1.1.
What if there is not enough headroom for a rigid rod?
SE-LX20 and SE-LX30 both cover 200–8000 mm. Where there is not enough headroom above the tank to insert a rigid rod, choose SE-LX30: its flexible cable can be coiled for transport and fed into the tank. For tanks taller than 8 m, send us the tank drawing and we will review the application.
What is the measuring range of SE-LX20?
SE-LX20 is orderable from 200 to 8000 mm in 5 mm steps. Longer ranges and special temperature or pressure versions are available on request.
How do I read the SE-LX20 ordering code?
The code follows SE-LX20-<flange>-<range>-<output>-<floats>-<W2/W4>. For example SE-LX20-F50-03000-I1D-2F08F11-W2 means: Rigid rod, DN50, 3000 mm, two floats for interface (density 0.8 / 1.1). The full option list is in the ordering-code table on this page and in the datasheet.
What is the MOQ and lead time for SE-LX20?
Qualification samples of 1–5 pcs ship in 5–7 working days, production lead time and MOQ are confirmed with the quotation, and we reply to every RFQ within 24 hours.
