ANTI-CORROSION LEVEL SENSOR

SGM-LC10 Corrosion-Resistant Magnetostrictive Level Sensor, PP / PFA, 25–1000 mm

SGM-LC10 is a magnetostrictive level sensor built for corrosive liquids. The head is PP and the float is PFA, rated in the datasheet for strong acids and strong alkalis. It measures 25–1000 mm continuously with 4–20 mA, 0–20 mA, 0–10 V, 0–5 V or RS485 output and IP68 sealing.

25–1000 mmIP68Datasheet PDFOEM volume supply

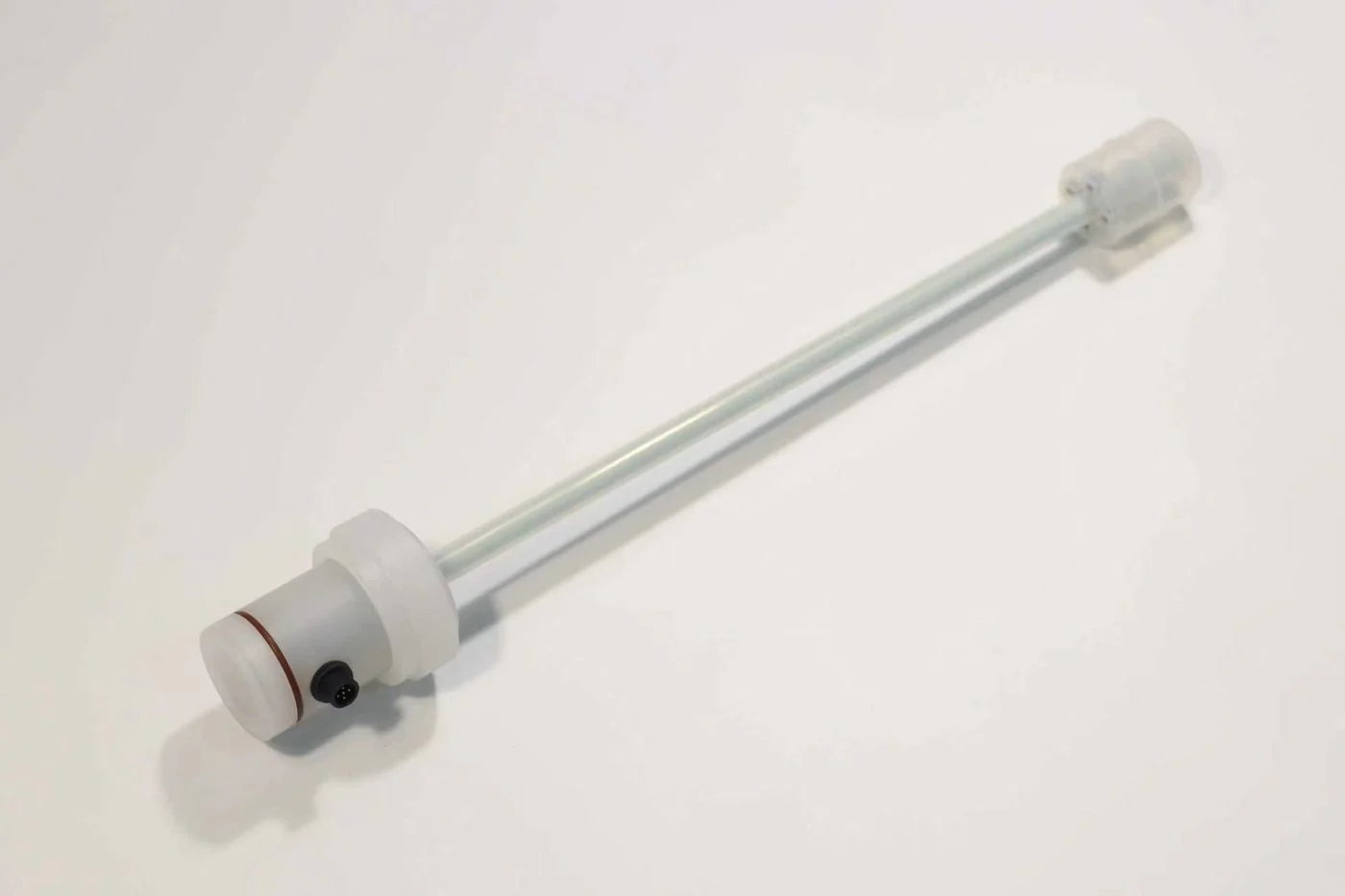

SGM-LC10 corrosion resistant magnetostrictive level sensor — SEGMENsensor

Key facts

SEGMENsensor SGM-LC10 is a magnetostrictive level sensor for corrosive liquids such as strong acids and alkalis. It combines a PP head with a PFA float and flange, measures 25–1000 mm continuously, and outputs 4–20 mA, 0–20 mA, 0–10 V, 0–5 V or RS485 Modbus RTU with IP68 sealing.

Last updated · SEGMENsensor Engineering Team

Watch: magnetostrictive level transmitter installation and wiring

Magnetostrictive Level Transmitter: How It Works, Installation and Wiring
Magnetostrictive Level Transmitter: How It Works, Installation and WiringHow a float and waveguide measure absolute level, which model fits your tank, installation, 2-wire 4–20 mA or RS485 wiring, and scaling the signal.
2:45 · YouTubeGet a quote →
Transcript

Magnetostrictive level transmitters: how they work, which one to choose, and how to install and wire one. A float with a built-in magnet rides on a stainless steel rod. Inside the rod runs a thin waveguide wire. The electronics send a current pulse along the wire. Where it meets the field of the float magnet, the wire twists, and a torsional wave travels back to the head. Its travel time gives the float position: an absolute level reading, with no recalibration after a power loss. A second float can measure the interface between two liquids. Pick the model for the tank. The SGM-LS10 stainless rod covers 25–8000 mm. The SGM-LC10, with a PP head and PFA float, is for corrosive liquids. The SE-LX20 has a flameproof housing and a rigid rod, with level and interface floats. The SE-LX30 uses a flexible cable for tall tanks. Mount the transmitter vertically on the tank top, by thread or flange. The float must pass through the nozzle, or be fitted from inside the tank. Keep the rod away from the inlet stream and the agitator, and use a stilling well in turbulent tanks. Check the inactive zones at the top and bottom of the rod before you set the range. Wiring: on 2-wire models, one cable pair carries the 24 V supply and the 4–20 mA signal to the PLC analog input. RS485 models report the level over Modbus RTU. Scale it like any 4–20 mA signal: subtract 4 mA, divide by 16, and multiply by the range. On the production line, rods and flanges are laser-welded, and the return signal of each sensor is checked on an oscilloscope. The reading is then checked on a test bench, and the nameplate is laser-marked. Before you order, specify the range, output, process connection, float material and temperature. Repeatability is ±0.005 mm on the SGM-LS10. SEGMENsensor magnetostrictive level transmitters. OEM volume supply. Datasheets and quotes at segmensensor.com.

How a Magnetostrictive Position Sensor Works
How a Magnetostrictive Position Sensor WorksOne-minute animation of the magnetostrictive time-of-flight principle: current pulse, Wiedemann-effect twist at the position magnet, torsional wave back to the head, position = wave speed × time.
Transcript

How does a magnetostrictive sensor measure position without contact? Inside the stainless steel rod runs a thin waveguide wire. A ring magnet moves with the piston, the float, or the carriage. First, the electronics send a short current pulse along the wire. The pulse creates a circular magnetic field. Where that field meets the field of the magnet, the wire twists. This is the Wiedemann effect. The twist travels back to the head as a torsional wave, at about two thousand eight hundred metres per second, while a timer measures the travel time. Position equals wave speed times time. The result is absolute position, with no contact and no wear. SEGMENsensor magnetostrictive sensors cover strokes from twenty-five to eight thousand millimetres. Learn more at segmensensor.com.

Magnetostrictive Position Sensors: Production and Testing
Magnetostrictive Position Sensors: Production and TestingReal production footage of SEGMENsensor magnetostrictive position sensors: electronics assembly, laser welding of rods and flanges, burn-in, signal test on an oscilloscope, calibration on a linear test bench and laser-marked nameplates.
1:23 · YouTubeGet a quote →
Transcript

Magnetostrictive position sensors: how SEGMENsensor builds and tests them. It starts with the electronics. Each sensor board is soldered by hand and fitted into the sensor head. The head, cable and connector are assembled on the housing, and heat-shrink sleeves seal the wiring. Rods and flanges are joined by laser welding on a rotary fixture, with a camera to align each seam. The electronics then run on a burn-in rack. Every sensor is tested. The oscilloscope checks the return signal, and a meter checks the output. Each sensor is then calibrated on a linear test bench, where software checks its reading along the stroke. Finally, the nameplate is laser-marked with the model and the company name. Strokes 25–8000 mm · OEM volume supply · Request a quote at segmensensor.com

What is SGM-LC10?

It is suitable for the new energy and chemical industries, and is used to measure the liquid level height in corrosive environments. Part number prefix SGM stands for the SEGMENsensor magnetostrictive range; the full ordering code is explained below and in the datasheet.

Updated 2026-10-01 · Values from the SGM-LC10 datasheet, Rev A.

Specifications

SGM-LC10 Specifications

All values from the SGM-LC10 datasheet. Orderable range as listed; longer ranges and special temperature or pressure versions on request.

ParameterValue
Product parameters - output types
Analog output0-10VDC / 0-5VDC / 4-20mA / 0-20mA
Digital outputRS485(modbus RTU)
Performance
Measuring range25–1000 mm
Output signal0-20mA(max/min load 0/500Ω) 4-20mA(max/min load 0/500Ω) 0-10V(min. load >5KΩ) RS485(MODBUS RTU)
Resolution16-bit DA
Non-linearity<±0.05% (min. ±100um)
Repeatability<±0.001% (min. ±10um)
Update timedepending on range
Operating conditions
Magnet speedany
Operating temperature-40~+85℃
Storage temperature-55~+85℃
Humidity90% humidity, no frost forming.
Temperature coefficient<30ppm/℃
Protection classIP68
Chemical resistancestrong acid, strong alkali
Mounting
Mounting orientationany
Position magnetPFA float
Electrical
Electrical connectionM12*1 waterproof connector
Supply voltage24VDC (±20%) (standard; 12 V and 5 V ranges depending on output and model)
Current consumptionvaries with range
Reverse-polarity protectionMaximum -30VDC
Over-voltage protectionMaximum 36VDC
Insulation strength500VDC
Function indication
Green on, red offnormal operation within the effective range
Green off, red onmagnet outside effective range or no magnet detected
Green off, red flashingentering debug/commissioning mode
Materials
Sensor headPP
Measuring rodPFA
Mounting flangePFA

Download the SGM-LC10 datasheet (PDF)

Specifications, wiring, dimension drawings and the complete ordering code on two pages. No registration required.

Download datasheet (PDF) All magnetostrictive datasheets

Need a 3D model or help confirming the right model? Contact our engineers — reply within 24 hours on working days. 3D models (STEP) available on request.

Dimensions & Wiring

SGM-LC10 Dimensions and Electrical Connection

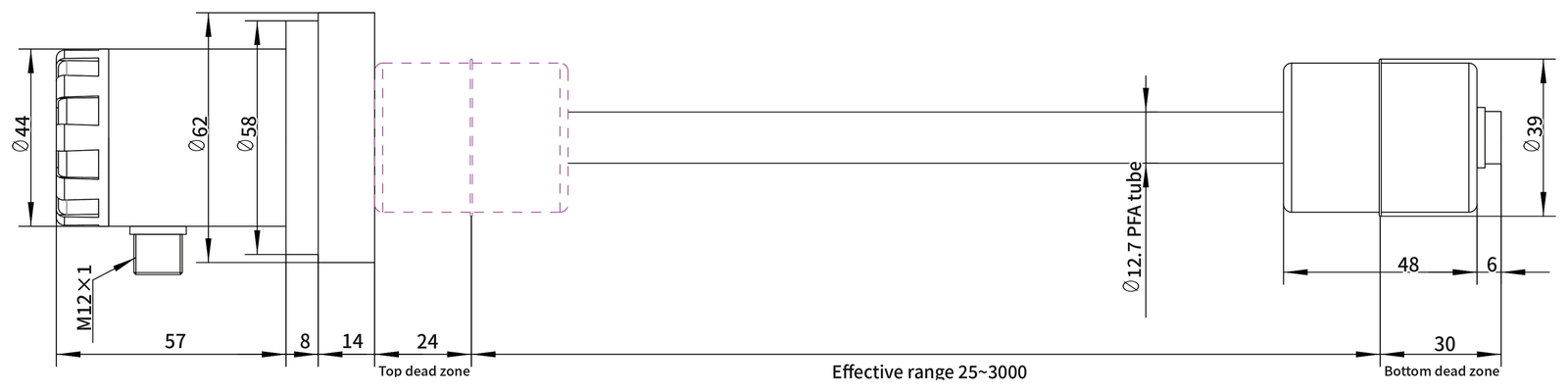

SGM-LC10 dimension drawing (mm)
SGM-LC10 dimensions in mm. Range figures in drawings are illustrative; the orderable range is given in the specification table.
Main dimensions (mm), read from the drawing above
DimensionValue (mm)
ConnectorM12×1
Housing cap diameterØ44
Housing length57
Flange diameterØ62
PFA tube diameterØ12.7
Float diameterØ39
Float length48
Top dead zone24
Bottom dead zone30

Analog connector pinout (5-pin)

1Analog output +
2Analog output -
3Power +
4Power - (GND)
5Earth
Ordering Code

How to Order SGM-LC10

Build the part number field by field. Outputs or options listed in the specifications but not in the ordering code are available on request.

SGM-LC10-00-<range>-<output>-<connection>[-options]
CodeMeaning
Mounting
00Standard (no mounting option)
Range
00025–010005 digits in mm, 5 mm steps
Output
I1F4–20 mA, zero at rod end
I1R4–20 mA reversed (20–4 mA), zero at head
I2F0–20 mA, zero at rod end
I2R0–20 mA reversed (20–0 mA), zero at head
V1F0–10 V, zero at rod end
V1R0–10 V reversed (10–0 V), zero at head
V2F0–5 V, zero at rod end
V2R0–5 V reversed (5–0 V), zero at head
R4RS485 (Modbus RTU)
Connection
L12Cable with M12 plug, standard 2 m
L12XSpecified cable
Options
(none)Series standard dead zones
Z9Customer-specified dead zones

Ordering examples

SGM-LC10-00-00600-I1F-L12600 mm, 4–20 mA, 2 m M12 cable
Selection

When to Choose SGM-LC10

Compare SEGMENsensor magnetostrictive level series

Part numberBest forRangeOutputProtection
SGM-LS10Magnetostrictive level sensor25–8000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SGM-LC10Corrosion resistant magnetostrictive level sensor25–1000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SE-LX10Magnetostrictive transmitter for magnetic level indicator200–8000 mm4–20 mA / 0–10 V / 0–5 V / RS485IP67
SE-LX20Explosion proof magnetostrictive level transmitter200–8000 mm4–20 mA / 0–10 V / 0–5 V / RS485IP67
SE-LX30Flexible cable magnetostrictive level transmitter200–8000 mm4–20 mA / 0–10 V / 0–5 V / RS485IP67
SGM-LK10Small tank magnetostrictive level sensor25–4000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68

New to the technology? Read How to choose a liquid level sensor.

Applications

Typical SGM-LC10 Applications

Chemical dosing tanks
Continuous level of acids and alkalis where stainless steel would corrode.
Battery and new-energy production
Electrolyte and process-chemical tanks in battery manufacturing lines.
Plating and etching baths
Short-range tanks where accurate level control reduces chemical waste.
Sourcing

Ordering SGM-LC10 from SEGMENsensor

1–5 pcsSamples; MOQ confirmed with the quotation
5–7 working daysSample lead time
Per quotationProduction lead time
24 h replyEvery RFQ answered by an engineer

Send the part number, or the stroke, output, mounting and connection you need. Custom ranges, dead zones, cables and magnets are quoted on request.

SEGMENsensor magnetostrictive sensor production testing
Magnetostrictive sensors under production testing at the SEGMENsensor factory.
FAQ

SGM-LC10 — Frequently Asked Questions

Which liquids can SGM-LC10 measure?
The datasheet rates the PP / PFA construction for strong acids and strong alkalis. Always confirm the exact chemical, concentration and temperature with us before ordering.
What do the LEDs on SGM-LC10 show?
The head has green and red LEDs that indicate normal operation, magnet or float lost, and fault states, as listed in the SGM-LC10 datasheet.
What is the measuring range of SGM-LC10?
SGM-LC10 is orderable from 25 to 1000 mm in 5 mm steps. Longer ranges and special temperature or pressure versions are available on request.
How do I read the SGM-LC10 ordering code?
The code follows SGM-LC10-00-<range>-<output>-<connection>[-options]. For example SGM-LC10-00-00600-I1F-L12 means: 600 mm, 4–20 mA, 2 m M12 cable. The full option list is in the ordering-code table on this page and in the datasheet.
What is the MOQ and lead time for SGM-LC10?
Qualification samples of 1–5 pcs ship in 5–7 working days, production lead time and MOQ are confirmed with the quotation, and we reply to every RFQ within 24 hours.
