SLIM-ROD LEVEL SENSOR

SGM-LK10 Slim-Rod Magnetostrictive Level Sensor with Cable Exit, 25–4000 mm

SGM-LK10 is a slim-rod magnetostrictive level sensor with a cable exit for small tanks and machine reservoirs. It measures 25–4000 mm with ±0.005 mm repeatability, mounts with an M18×1.5 or M22×1.5 thread, is sealed to IP68 and outputs 4–20 mA, 0–20 mA, 0–10 V, 0–5 V or RS485.

25–4000 mmIP68Datasheet PDFOEM volume supply
SGM-LK10 small tank magnetostrictive level sensor dimension drawing — SEGMENsensor

Key facts

SEGMENsensor SGM-LK10 is a slim-rod magnetostrictive level sensor with a cable exit for small tanks, machine reservoirs and hydraulic oil tanks on mining machinery. It measures 25–4000 mm with ±0.005 mm repeatability, mounts with an M18×1.5 or M22×1.5 thread and outputs 4–20 mA, 0–10 V, 0–5 V or RS485.

Last updated · SEGMENsensor Engineering Team

Watch: magnetostrictive level transmitter installation and wiring

Magnetostrictive Level Transmitter: How It Works, Installation and Wiring
Magnetostrictive Level Transmitter: How It Works, Installation and WiringHow a float and waveguide measure absolute level, which model fits your tank, installation, 2-wire 4–20 mA or RS485 wiring, and scaling the signal.
2:45 · YouTubeGet a quote →
Transcript

Magnetostrictive level transmitters: how they work, which one to choose, and how to install and wire one. A float with a built-in magnet rides on a stainless steel rod. Inside the rod runs a thin waveguide wire. The electronics send a current pulse along the wire. Where it meets the field of the float magnet, the wire twists, and a torsional wave travels back to the head. Its travel time gives the float position: an absolute level reading, with no recalibration after a power loss. A second float can measure the interface between two liquids. Pick the model for the tank. The SGM-LS10 stainless rod covers 25–8000 mm. The SGM-LC10, with a PP head and PFA float, is for corrosive liquids. The SE-LX20 has a flameproof housing and a rigid rod, with level and interface floats. The SE-LX30 uses a flexible cable for tall tanks. Mount the transmitter vertically on the tank top, by thread or flange. The float must pass through the nozzle, or be fitted from inside the tank. Keep the rod away from the inlet stream and the agitator, and use a stilling well in turbulent tanks. Check the inactive zones at the top and bottom of the rod before you set the range. Wiring: on 2-wire models, one cable pair carries the 24 V supply and the 4–20 mA signal to the PLC analog input. RS485 models report the level over Modbus RTU. Scale it like any 4–20 mA signal: subtract 4 mA, divide by 16, and multiply by the range. On the production line, rods and flanges are laser-welded, and the return signal of each sensor is checked on an oscilloscope. The reading is then checked on a test bench, and the nameplate is laser-marked. Before you order, specify the range, output, process connection, float material and temperature. Repeatability is ±0.005 mm on the SGM-LS10. SEGMENsensor magnetostrictive level transmitters. OEM volume supply. Datasheets and quotes at segmensensor.com.

How a Magnetostrictive Position Sensor Works
How a Magnetostrictive Position Sensor WorksOne-minute animation of the magnetostrictive time-of-flight principle: current pulse, Wiedemann-effect twist at the position magnet, torsional wave back to the head, position = wave speed × time.
Transcript

How does a magnetostrictive sensor measure position without contact? Inside the stainless steel rod runs a thin waveguide wire. A ring magnet moves with the piston, the float, or the carriage. First, the electronics send a short current pulse along the wire. The pulse creates a circular magnetic field. Where that field meets the field of the magnet, the wire twists. This is the Wiedemann effect. The twist travels back to the head as a torsional wave, at about two thousand eight hundred metres per second, while a timer measures the travel time. Position equals wave speed times time. The result is absolute position, with no contact and no wear. SEGMENsensor magnetostrictive sensors cover strokes from twenty-five to eight thousand millimetres. Learn more at segmensensor.com.

Magnetostrictive Position Sensors: Production and Testing
Magnetostrictive Position Sensors: Production and TestingReal production footage of SEGMENsensor magnetostrictive position sensors: electronics assembly, laser welding of rods and flanges, burn-in, signal test on an oscilloscope, calibration on a linear test bench and laser-marked nameplates.
1:23 · YouTubeGet a quote →
Transcript

Magnetostrictive position sensors: how SEGMENsensor builds and tests them. It starts with the electronics. Each sensor board is soldered by hand and fitted into the sensor head. The head, cable and connector are assembled on the housing, and heat-shrink sleeves seal the wiring. Rods and flanges are joined by laser welding on a rotary fixture, with a camera to align each seam. The electronics then run on a burn-in rack. Every sensor is tested. The oscilloscope checks the return signal, and a meter checks the output. Each sensor is then calibrated on a linear test bench, where software checks its reading along the stroke. Finally, the nameplate is laser-marked with the model and the company name. Strokes 25–8000 mm · OEM volume supply · Request a quote at segmensensor.com

What is SGM-LK10?

It is suitable for scenarios such as hydraulic position measurement in mining machinery. Part number prefix SGM stands for the SEGMENsensor magnetostrictive range; the full ordering code is explained below and in the datasheet.

Updated 2026-10-01 · Values from the SGM-LK10 datasheet, Rev A.

Specifications

SGM-LK10 Specifications

All values from the SGM-LK10 datasheet. Orderable range as listed; longer ranges and special temperature or pressure versions on request.

ParameterValue
Product parameters - output types
Analog output0-10VDC / 0-5VDC / 4-20mA / 0-20mA
Digital outputRS485(modbus RTU)
Performance
Measuring range25–4000 mm
Output signal0-20mA(max/min load 0/500Ω) 4-20mA(max/min load 0/500Ω) 0-10V(min. load >5KΩ) RS485(MODBUS RTU)
Resolution16-bit DA
Repeatability±0.005mm
Update timedepending on range
Operating conditions
Magnet speedany
Operating temperature-40~+85℃
Storage temperature-55~+85℃
Humidity90% humidity, no frost forming.
Temperature coefficient<30ppm/℃
Protection classIP68
Mounting
Mounting orientationany
MountingM18×1.5 or M22×1.5 (confirmed with order)
Position magnetRing magnet or float
Electrical
Electrical connectionM12*1 waterproof connector or direct cable exit
Supply voltage24VDC (±20%) (standard; 12 V and 5 V ranges depending on output and model)
Current consumptionvaries with range
Reverse-polarity protectionMaximum -30VDC
Over-voltage protectionMaximum 36VDC
Insulation strength500VDC
Materials
Sensor head304 stainless steel
Protective tube304 stainless steel
Mounting flange304 stainless steel

Download the SGM-LK10 datasheet (PDF)

Specifications, wiring, dimension drawings and the complete ordering code on two pages. No registration required.

Download datasheet (PDF) All magnetostrictive datasheets

Need a 3D model or help confirming the right model? Contact our engineers — reply within 24 hours on working days. 3D models (STEP) available on request.

Dimensions & Wiring

SGM-LK10 Dimensions and Electrical Connection

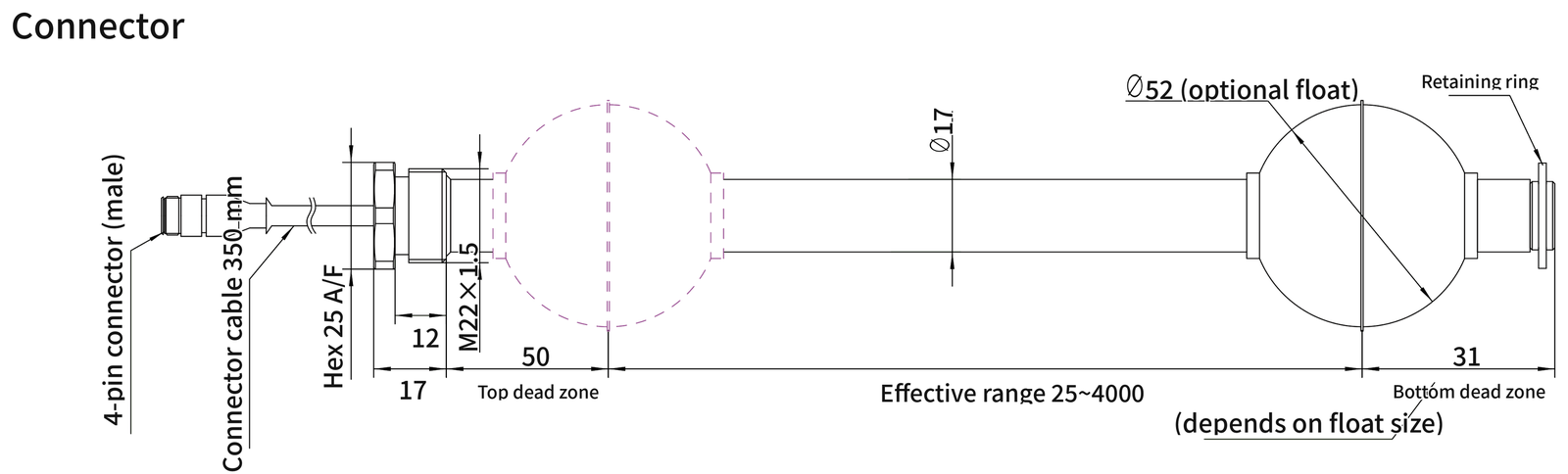

SGM-LK10 dimension drawing 1 (mm)
SGM-LK10 dimensions in mm. Range figures in drawings are illustrative; the orderable range is given in the specification table.

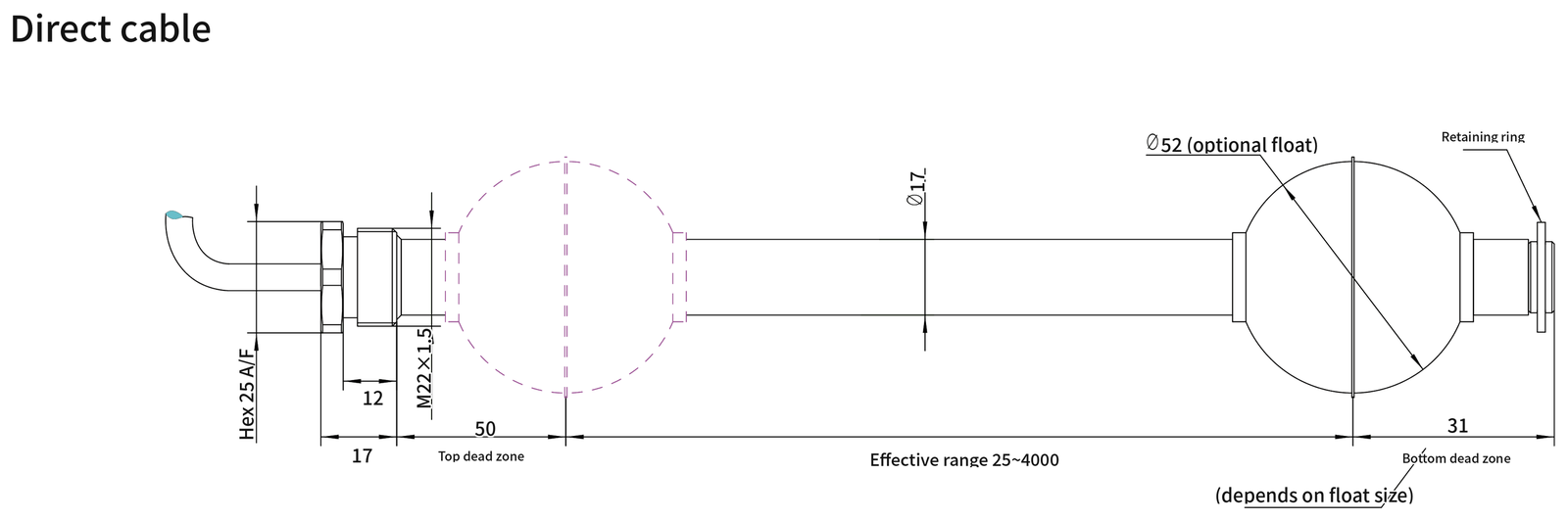

SGM-LK10 dimension drawing 2 (mm)
SGM-LK10 dimensions in mm. Range figures in drawings are illustrative; the orderable range is given in the specification table.
Main dimensions (mm), read from the drawing above
DimensionValue (mm)
Hex across flats25
Mounting threadM22×1.5
Thread length12
Rod diameterØ17
Float diameter (optional floats)Ø52
Top dead zone50
Bottom dead zone (varies with float)31

Analog connector pinout (4-pin)

1+12V power supply
2Power - (GND)
3Analog output +
4Analog output -

RS485 connector pinout (4-pin)

1+12V power supply
2Power - (GND)
3RS485-A
4RS485-B

RS485 cable colours

redPower
blackGround
yellowSignal A
greenSignal B
Ordering Code

How to Order SGM-LK10

Build the part number field by field. Outputs or options listed in the specifications but not in the ordering code are available on request.

SGM-LK10-<mounting>-<range>-<output>-<connection>[-options]
CodeMeaning
Mounting
18M18×1.5
XXCustom thread
Range
00025–040005 digits in mm, 5 mm steps
Output
I1F4–20 mA, zero at rod end
I1R4–20 mA reversed (20–4 mA), zero at head
I2F0–20 mA, zero at rod end
I2R0–20 mA reversed (20–0 mA), zero at head
V1F0–10 V, zero at rod end
V1R0–10 V reversed (10–0 V), zero at head
V2F0–5 V, zero at rod end
V2R0–5 V reversed (5–0 V), zero at head
R4RS485 (Modbus RTU)
XXCustomer-specified output
Connection
K12M12 connector
C02 … C99Direct cable, number = length in m (C02 = 2 m)
…XSuffix X: customer-specified cable
Options
(none)Series standard dead zones
Z9Customer-specified dead zones

Ordering examples

SGM-LK10-18-00800-I1F-C03800 mm, 4–20 mA, 3 m cable
Selection

When to Choose SGM-LK10

Compare SEGMENsensor magnetostrictive level series

Part numberBest forRangeOutputProtection
SGM-LS10Magnetostrictive level sensor25–8000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SGM-LC10Corrosion resistant magnetostrictive level sensor25–1000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68
SE-LX10Magnetostrictive transmitter for magnetic level indicator200–8000 mm4–20 mA / 0–10 V / 0–5 V / RS485IP67
SE-LX20Explosion proof magnetostrictive level transmitter200–8000 mm4–20 mA / 0–10 V / 0–5 V / RS485IP67
SE-LX30Flexible cable magnetostrictive level transmitter200–8000 mm4–20 mA / 0–10 V / 0–5 V / RS485IP67
SGM-LK10Small tank magnetostrictive level sensor25–4000 mm4–20 mA / 0–20 mA / 0–10 V / 0–5 V / RS485IP68

New to the technology? Read How to choose a liquid level sensor.

Applications

Typical SGM-LK10 Applications

Machine reservoirs and small tanks
Compact continuous level where a large head does not fit.
Mining machinery
Stainless, IP68 construction for hydraulic tanks on mining equipment.
OEM equipment
Direct cable exit simplifies wiring inside machine enclosures.
Sourcing

Ordering SGM-LK10 from SEGMENsensor

1–5 pcsSamples; MOQ confirmed with the quotation
5–7 working daysSample lead time
Per quotationProduction lead time
24 h replyEvery RFQ answered by an engineer

Send the part number, or the stroke, output, mounting and connection you need. Custom ranges, dead zones, cables and magnets are quoted on request.

SEGMENsensor magnetostrictive sensor production testing
Magnetostrictive sensors under production testing at the SEGMENsensor factory.
FAQ

SGM-LK10 — Frequently Asked Questions

Which mounting threads does SGM-LK10 use?
M18×1.5 or M22×1.5, confirmed with the order.
How accurate is SGM-LK10?
The SGM-LK10 datasheet gives a repeatability of ±0.005 mm. Overall level accuracy also depends on the float and the liquid; we confirm it for your application.
What is the measuring range of SGM-LK10?
SGM-LK10 is orderable from 25 to 4000 mm in 5 mm steps. Longer ranges and special temperature or pressure versions are available on request.
How do I read the SGM-LK10 ordering code?
The code follows SGM-LK10-<mounting>-<range>-<output>-<connection>[-options]. For example SGM-LK10-18-00800-I1F-C03 means: 800 mm, 4–20 mA, 3 m cable. The full option list is in the ordering-code table on this page and in the datasheet.
What is the MOQ and lead time for SGM-LK10?
Qualification samples of 1–5 pcs ship in 5–7 working days, production lead time and MOQ are confirmed with the quotation, and we reply to every RFQ within 24 hours.
