Official product documentation for SEGMENsensor liquid level sensors. All PDFs include full technical specifications, wiring diagrams, and installation guides.
The SEGMENsensor level sensor downloads page provides the liquid level sensor datasheet as a PDF, covering SFL float switches, SLS submersible transmitters, SEU ultrasonic sensors and the CDU coolant level sensor. It includes specifications, wiring diagrams and installation notes; magnetostrictive level datasheets are on the magnetostrictive downloads page.

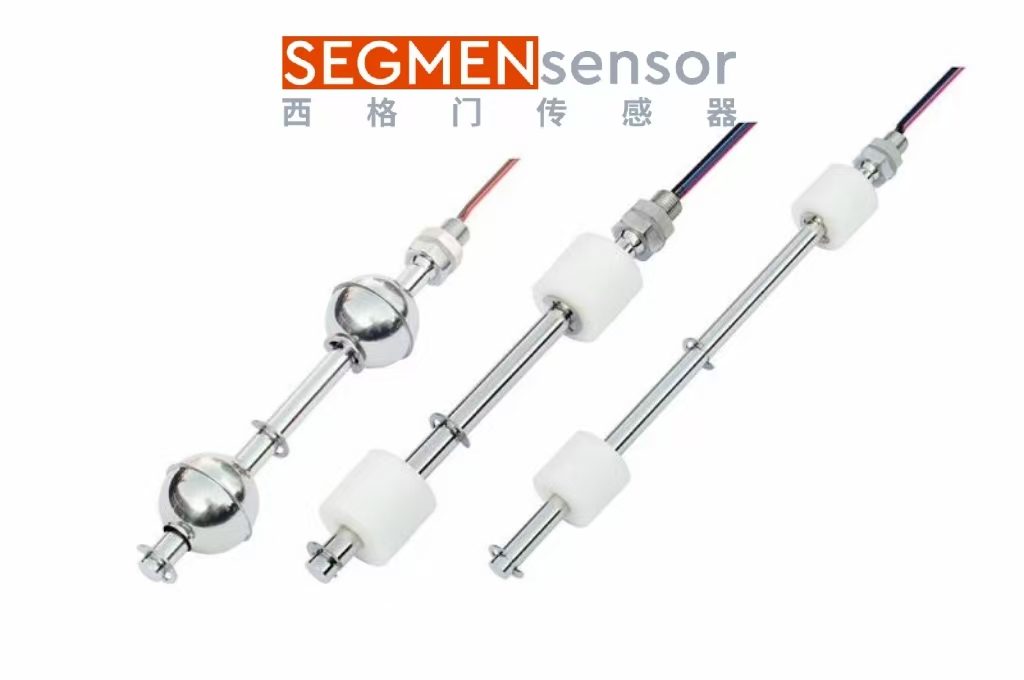

Reliable float-actuated level switches for tanks, vessels, and industrial liquid storage. Available in PP, PVDF, and SS316L materials. Suitable for water, oil, chemicals, and corrosive media. Normally-open and normally-closed contact options.
Continuous liquid level measurement for tanks and process vessels. 4–20 mA and RS485 output options for seamless PLC/SCADA integration. Stainless steel construction with PTFE-coated wetted parts for chemical resistance.
High-accuracy magnetostrictive liquid level measurement for fuel tanks, chemical storage, and process industries. Sub-millimeter resolution with float-based non-contact sensing. Explosion-proof variants available for hazardous areas.
Non-contact ultrasonic liquid level measurement for water, wastewater, and chemical tanks. Top-mounted, with only the ABS or 316L sensor face exposed to the tank atmosphere — suited to corrosive or viscous media. 4–20 mA output plus two relays. SEU product page →
This page provides the complete documentation library for SEGMENsensor liquid level sensors. Available documents include product datasheets for float level switches, LS series continuous level sensors, magnetostrictive level transmitters, and ultrasonic level sensors. Documentation also covers CE declarations of conformity, UKCA certificates, RoHS compliance statements, ATEX explosion-proof certificates, wiring diagrams, dimensional drawings, and Modbus RTU register maps.
Engineers use these documents for tank instrumentation design, control system integration, safety loop documentation, and compliance submissions. The dimensional drawings include stem lengths, float dimensions, process connection thread sizes, and cable entry positions. Wiring diagrams cover NO/NC relay outputs for float switches and 4–20 mA / RS485 loop connections for continuous transmitters.
All documents are available to download — no registration required. For ATEX certification packages, material certificates, or custom stem-length datasheets not listed here, contact info@segmensensor.com with your model number for delivery within 24 hours.
| Parameter | Specification |
|---|---|
| Measurement Range | 0–5 m to 0–200 m (technology dependent); other ranges customized on request |
| Output Signal | 4–20 mA, 0–10 V, RS485 Modbus RTU; 2-wire 4–20 mA + HART (parameters settable with a HART handheld communicator) |
| Protection Rating | IP68 (float/submersible); IP67 (ultrasonic) |
| Process Temperature | −20°C to +80°C (standard); up to +120°C (SS316L option) |
| Sensor Types | Float/magnetic-reed, magnetostrictive, ultrasonic non-contact, capacitive |
| Wetted Materials | PP, PVDF, SS316L, PTFE-coated |
| Accuracy | repeatability ±0.005 mm (SGM-LS10) / ±0.1–±1 mm (SE-LX) (magnetostrictive); ±0.5% (LS series); ±0.3% FS (SEU ultrasonic) |
Liquid level sensors are used wherever tank inventory, process fill level, or pump protection requires reliable measurement. SEGMENsensor offers four sensor technologies to match different media, accuracy, and process conditions. The following applications are the most common scenarios covered in our technical documentation.
Industrial Tank Inventory and Overfill Protection: Float level switches and LS series continuous transmitters monitor liquid levels in fuel tanks, chemical storage vessels, and process tanks. NO/NC relay outputs connect directly to PLC digital inputs for overfill alarms and pump cut-off, while 4–20 mA outputs feed SCADA systems for continuous inventory tracking.
Fuel and Diesel Storage Tank Measurement: Magnetostrictive liquid level transmitters with PFA anti-corrosion lining measure fuel levels in above-ground and underground storage tanks (SGM-LS10 repeatability ±0.005 mm). Multi-point models simultaneously output fuel level, water interface level, and temperature for fuel management systems.
Wastewater and Open Channel Level Monitoring: Non-contact SEU ultrasonic level sensors measure water levels in open tanks, sumps, and wet wells without any wetted parts. Top-mount installation requires no tank entry, and the non-contact design eliminates fouling from wastewater solids and chemical scaling.
